Kit de desague MITSUBISHI PAC-SJ08DS-E

Drain Socket PAC-SJ08DS-E
Figure Descriptions
Cap the unnecessary holes on the outdoor unit (bottom) and
centralize the drainage when using a drain pipe.
Applicable Models
PUHZ-ZRP35VKA
PUHZ-ZRP50VKA
Vinyl tube or hard
vinyl tube (VP25)
Speci昀椀cations
Drain pipe PVC VP-25 or vinyl hose (ID: 25mm)
Operating conditions No freezing allowed (Never to be used in cold
climates)
Material EPT rubber
Dimensions Component Drain socket x 1
Unit : mm

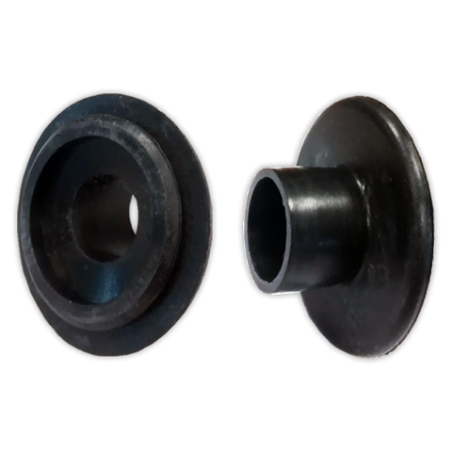

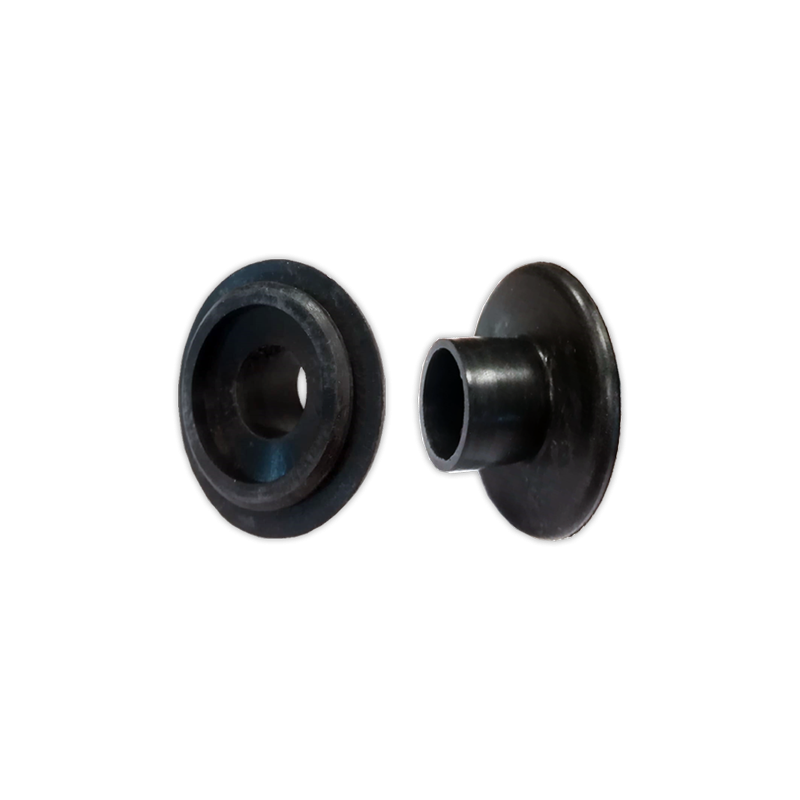

Drain socket
56
42
4
25
The outdoor unit is provided with several holes for drainage at the bottom to make drainage
easier. The drain socket is used to close the unnecessary holes and centralize the drainage
when using the drain tube at the installation place.
Do not to use the drain socket in cold areas. The drain tube can be frozen.
+Condensation could drop through the part fitting holes in the bottom of the outdoor unit.
20 Use the centralized drain pan to completely prevent condensation dropping.
25
Accessory
1.
Be aware that the part shown to the left is put in the package
ᶃDrain socket••••••••••••1 pc
together with the installation manual.
2. Installation procedure )Prepare the adhesive in the field.
(1) Glue the drain socket
to the hole that is
used to the drainage at the bottom of the
P OPTIONAL
AR unit with the glue (Prepare in the field).
TS (2) Insert a vinyl tube of which inner diameter
25 mm available commercially or a hard
vinyl tube VP25 to the drain socket
.
Vinyl tube or hard
vinyl tube (VP25)
E-216
