Kit de desague MITSUBISHI PAC-SG61DS-E

Drain Socket
PAC-SG61DS-E
Descriptions
Cap the unnecessary holes on the outdoor unit (bottom) and
centralize the drainage when using a drain pipe.
Applicable Models
PUHZ-RP100VKA/YKA
MXZ-8A140VA
PUHZ-RP35VHA4 PUHZ-RP125VKA/YKA
PUHZ-RP50VHA4 PUHZ-RP140VKA/YKA
PUHZ-HRP71/100/125VHA2
PUHZ-RP60VHA4
PUHZ-P100/125/140/200/250
PUHZ-RP71VHA4
Specification
PVC VP-25 or vinyl hose (ID: 25mm)
Drain pipe
No freezing allowed (Never to be used in cold
Operating conditions
climates)
EPT rubber
Material

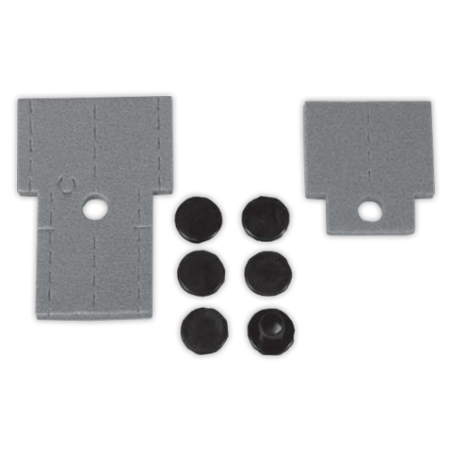

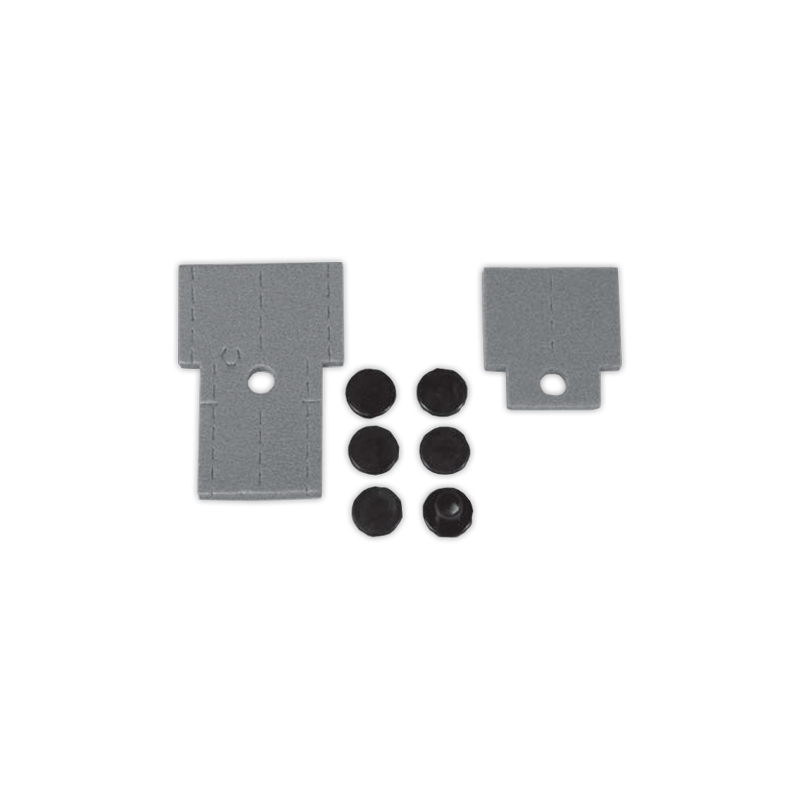

Component
Drain socket x 1, Drain cap x 5
Heat insulator x 3 (1 for liquid pipe, 1 large and
1 small insulator for gas pipe), Band x 8
Dimensions
Unit : mm
Drain socket Drain cap
φ47
φ47
φ33
φ33
4
4
25
φ20
φ25
（Drain pipe connection）
Drain Socket PAC-SG61DS-E
How to Use / How to Install
Accessory
1
Make sure that the following parts are put in the package.
Drain socket・・・・・・・・・・・1 pcs Drain cap・・・・・・・・・・・・・5 pcs


Insulation part (for liquid pipe)・・・・1 pc
Insulation part (for gas pipe)・・・・・1 pc Band・・・・・・・・・・・・・・・8 pcs


Small size
Large size
☆Prepare the adhesive in the field.
2. Installation method for drain unit
(1) Glue the drain socket ① to the hole that is used to centralize the drainage among several
holes at the bottom of the unit with the glue (Prepare in the field).
(2) Glue the drain caps ② to close all the other unnecessary holes with the glue (Prepare in the field).
〈Note〉 Apply the glue securely, as the glue (Prepare in the field) will work as seal to prevent
water from leaking.
〈Note〉 Use the adhesive for the rubber and metal.
〈Recommended product〉 Supper X series made by CEMEDINE CO., Ltd.
(3) Insert a vinyl tube of which inner diameter 25 mm available commercially or a hard vinyl tube
VP25 to the drain socket ①.
②
①
Vinyl tube or hard vinyl tube (VP25)
3. Installation method for insulation parts
Install the insulation parts to stop valve of the outdoor unit.
※The insulation parts should be installed after the tube has been connected to the unit.
※Some units are provided with a check valve near stop valve. In this case,
cut the insulation parts ③ and ④ so that they will fit the stop valve properly.
(1) Install the insulation part ③ with 2 holes to the liquid pipe side so that the holes
fit the valve caps and cover the stop valve entirely.
(2) Fix the insulation part ③ securely with bands ⑤.
Install the other insulation part ④ to the gas pipe side with the same procedure.
・Cut both ends of the insulation
part ⑤ for gas tube side for the
model RP71 or less.
Caps
③
Tighten the bands
securely to completely
close the gap.
Stop valve
⑤
Cut the tip of the bands
Cut the shaded portion
after tightening.
