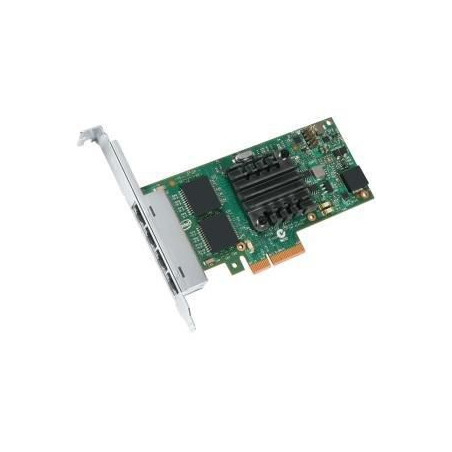

Ethernet I350 T4 V2 Svr Oem

iWARP/RDMA
iWARP delivers converged, low-latency fabric services to data centers through Remote Direct Memory Access (RDMA) over Ethernet. The key iWARP components that deliver low-latency are Kernel Bypass, Direct Data Placement, and Transport Acceleration.

PCI-SIG* SR-IOV Capable
Single-Root I/O Virtualization (SR-IOV) involves natively (directly) sharing a single I/O resource between multiple virtual machines. SR-IOV provides a mechanism by which a Single Root Function (for example a single Ethernet Port) can appear to be multiple separate physical devices.

Intel® Ethernet Power Management
Intel® Ethernet Power Management Technology provides solutions to common power management approaches by reducing idle power, reducing capacity and power as a function of demand, operating at maximum energy efficiency whenever possible, and enabling functionality only when needed.

Flexible Port Partitioning
Flexible Port Partitioning (FPP) technology utilizes industry standard PCI SIG SR-IOV to efficiently divide your physical Ethernet device into multiple virtual devices, providing Quality of Service by ensuring each process is assigned to a Virtual Function and is provided a fair share of the bandwidth.

Virtual Machine Device Queues (VMDq)
Virtual Machine Device Queues (VMDq) is a technology designed to offload some of the switching done in the VMM (Virtual Machine Monitor) to networking hardware specifically designed for this function. VMDq drastically reduces overhead associated with I/O switching in the VMM which greatly improves throughput and overall system performance

Chipset	Intel® I350
Componente para	Server
Interno	Yes
Uso recomendado	Server
Compatibilidad iSCSI	Yes
Controlador LAN	Intel® I350
Estándares de red	IEEE 802.1as/IEEE 802.1Q/IEEE 802.3/IEEE 802.3ab/IEEE 802.3az/IEEE 802.3u/IEEE 802.3x/IEEE 802.3z
Ethernet LAN	Yes
Full duplex	Yes
Máxima distancia de funcionamiento	100 m
Máxima velocidad de transferencia de datos	1000 Mbit/s
Protocolos de red soportados	TCP, UDP, IP
Tecnología de cableado	10/100/1000BaseT(X)
Velocidades datos Ethernet LAN	10/100/1000 Mbit/s
Humedad relativa de almacenamiento (H-H)	35 - 90 %
Temperatura de almacenamiento (T-T)	-40 - 70 °C
Temperatura de funcionamiento (T-T)	0 - 55 °C
Adaptador Ethernet ARK ID	84805
Almacenamiento sobre Ethernet	iSCSI, NFS
Altura del soporte	Low-Profile (LP) / Full-Height (FH)
Altura del soporte	Low Profile and Full Height
Cable de tarjeta de interfaz de red medio	Copper
Código del producto	Powerville
Compatible con PCI-SIG* SR-IOV	Yes
Descargas inteligentes	Yes
Estado	Launched
Familia de productos	Intel Gigabit server adapter
Familia procesador	Gigabit Ethernet Adapters (up to 2.5GbE)-Gigabit Ethernet Adapters (up to 2.5GbE)
Fecha de lanzamiento	Q3'14
Intel Administración de alimentación Ethernet	Yes
Intel Partición flexible de puertos	Yes
Intel Virtual Machine Device Queues (VMDq)	Yes
iWARP/RDMA	No
Libre de halógeno	No
Número de clasificación de control de exportaciones (ECCN)	5A991
Opciones bajo en halógeno disponibles	No
Opciones integradas disponibles	No
Potencia de diseño térmico (TDP)	5 W
QoS en chip y gestión de tráfico	Yes
Segmento de mercado	Server
Serie producto	Intel® I350
Sistema automatizado de seguimiento de clasificación de mercancías (CCATS)	NA
Storage-over-ethernet	Yes
Tecnología de virtualización para conectividad Intel (VT-c)	Yes
Tipo de cable	Cat 5 up to 100m
Tipo de cableado	Cat 5 up to 100m
Tipo de controlador	Intel I350
Tipo de interfaz	PCIe v2.1 (5.0 GT/s)
Tipo de producto	Network Interface Card
Tipo de tarjeta de interfaz de red	Server
Último cambio	63903513
URL resumen del producto	http://www.intel.com/content/www/us/en/ethernet-controllers/ethernet-i350-server-adapter-brief.html?wapkw=i350
Velocidad y ancho de ranura	5.0 GT/s, x4 Lane
Factor forma tarjeta PCI	Full-height (low-profile)
Interfaz	Ethernet
Interfaz host	PCI Express
Puertos LAN Ethernet (RJ-45)	4
Tecnología de conectividad	Wired
Versión PCI	2.1
Consumo de energía (típico)	5 W
Sistemas operativos compatibles	https://www.intel.com/content/www/us/en/support/articles/000025890/network-and-i-o/ethernet-products.html
Garantía	1 año
