  • AdderView Matrix C110 | APLIUM

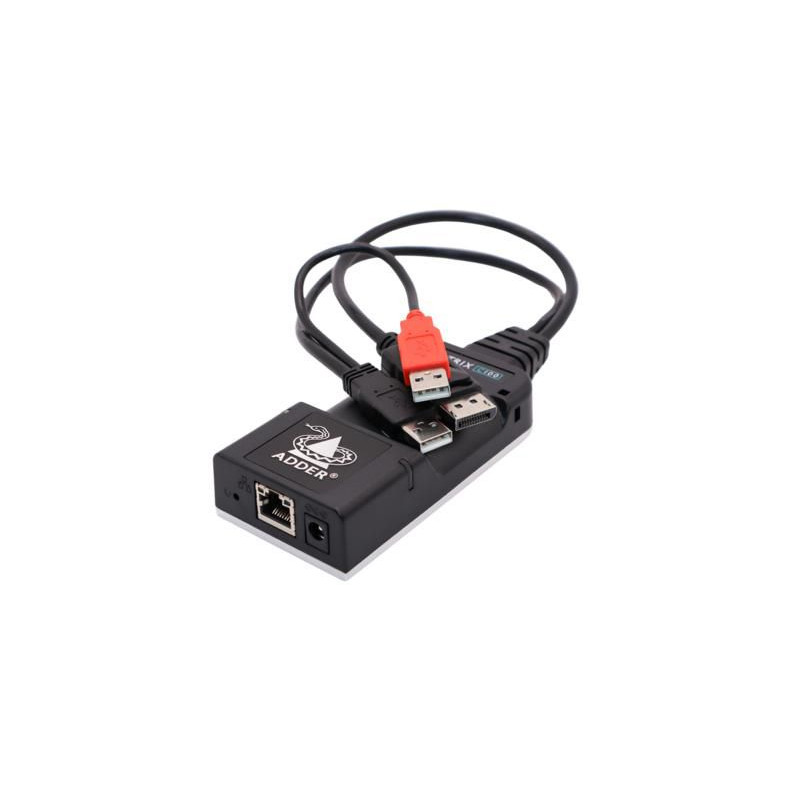

AdderView Matrix C110 - Ref. AVM-C110-CAM-DP

694,43 €
Impuestos incluidos
2560 x 1600 px, 60 Hz, USB-A x 2, DisplayPort 1.1, RJ45, 55 x 25 x 110 mm, 0.2 kg
Cantidad
Disponible bajo pedido · entrega estimada 3-5 semanas

  Pago 100% seguro

Tarjeta (RedSys) y transferencia bancaria

  Envío en 24/72 h

Gratis a partir de 299 €

  Devoluciones en 14 días

Devolución fácil y sin complicaciones

ZeroU™ Form Factor
The ADDERView Matrix C100 Series takes ZeroU of rack space in the server room allowing for ultimate flexibility and ease of installation.

USB Powered
Using less than 3 Watts, the device can be powered from USB. This means there is no need for an external PSU. Options for powering from an external PSU or redundant PSU are also available.

USB 2.0 with Class Control
Supports USB devices including graphics tablets, jog shuttles, joysticks, card readers and 3D explorers, alongside mass storage devices. The system can disable types of devices.

Perfect Digital Video in Real-Time
Using a spatially-lossless encoding system, with 1:1 pixel mapping, the device provides pixel-perfect and color accurate video with no artifacts.

Support for Dithered Video
Allows dithered analog or noisy video to pass through the system. Some Mac computers use this technique.

EDID Management
Intelligent EDID management allows either the true characteristics of the monitor to be passed back to the computer or a fixed one.

Digital Audio
The system can deliver USB stereo audio (bi-directional) or embedded video standard stereo audio (uni- directional).

Plug and Play
ADDERView Matrix devices are delivered in a zero config state so you can plug them in and start working on them straight away. There is no need for drivers or software to be installed.

Color productoBlack
Indicadores LEDYes
Longitud cable0,3 m
Material de la carcasaAcrylonitrile butadiene styrene (ABS)
Máxima longitud cable100 m
Tiempo medio entre fallos (MTBF)868000 h
Pantalla integradaNo
Ethernet LANYes
Puertos LAN Ethernet (RJ-45)1
Humedad relativa de almacenamiento (H-H)10 - 90 %
Humedad relativa de funcionamiento (H-H)10 - 90 %
Temperatura de almacenamiento (T-T)0 - 50 °C
Temperatura de funcionamiento (T-T)0 - 50 °C
Guía de instalación rápidaYes
Ancho de banda de vídeo60 Hz
Canales de audio2
Resolución máxima2560 x 1600 Pixeles
Conector jack de entrada DCYes
Conexiones de audioYes
Puertos de consolaRJ–45
Puertos hub USB 2.0 tipo A2
Tipo de conector USBUSB Type-A
Tipo de puerto de tecladoNo
Tipo de puerto de vídeoDisplayPort
Tipo de puerto del ratónNo
Versión DisplayPort1.1
Adaptador de corriente externoYes
Consumo de energía (típico)3 W
Fuente de alimentaciónUSB
Certificados de conformidadANSI/CE/China RoHS/Federal Communications Commission (FCC)
MP-50493

Ficha técnica

Indicadores LED
Yes
Material de la carcasa
Acrylonitrile butadiene styrene (ABS)
Guía de instalación rápida
Yes
Certificados de conformidad
ANSI/CE/China RoHS/Federal Communications Commission (FCC)
Fuente de alimentación
USB
Tipo de puerto de teclado
No
Resolución máxima
2560 x 1600 Pixeles
Tipo de puerto de vídeo
DisplayPort
Ancho de banda de vídeo
60 Hz
Canales de audio
2
Color producto
Black
Humedad relativa de almacenamiento (H-H)
10 - 90 %
Humedad relativa de funcionamiento (H-H)
10 - 90 %
Temperatura de almacenamiento (T-T)
0 - 50 °C
Temperatura de funcionamiento (T-T)
0 - 50 °C
Ethernet LAN
Yes
Longitud cable
0,3 m
Puertos LAN Ethernet (RJ-45)
1
Conector jack de entrada DC
Yes
Consumo de energía (típico)
3 W
Pantalla integrada
No
Versión DisplayPort
1.1
Conexiones de audio
Yes
Puertos de consola
RJ–45
Tipo de conector USB
USB Type-A
Tipo de puerto del ratón
No
Puertos hub USB 2.0 tipo A
2
Tiempo medio entre fallos (MTBF)
868000 h
Máxima longitud cable
100 m
Adaptador de corriente externo
Yes

Referencias específicas

ean13
5055109106516
MPN
AVM-C110-CAM-DP
