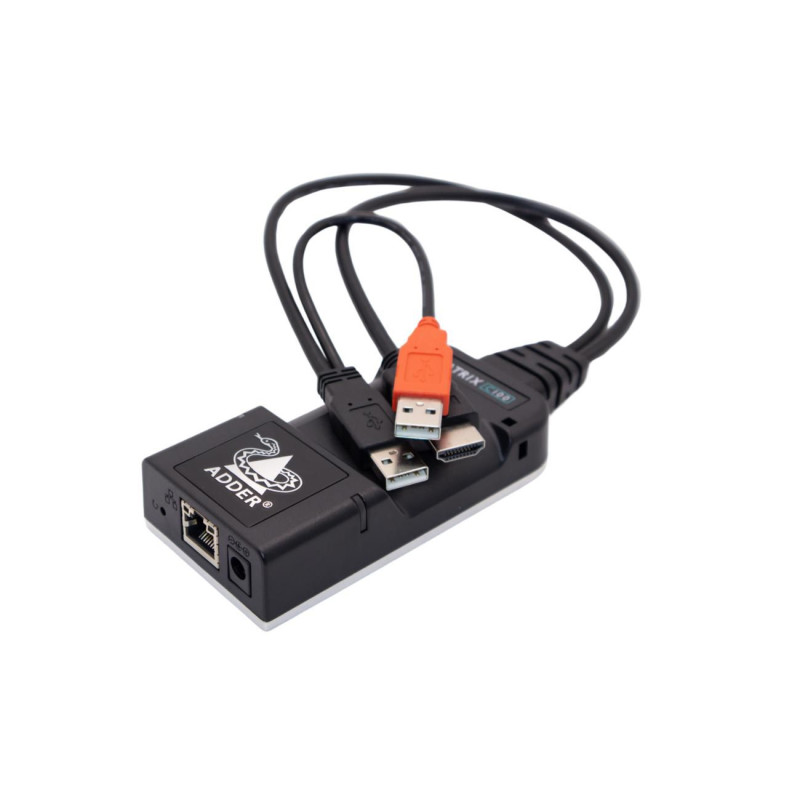

AdderView Matrix C110

ZeroU Form Factor
The ADDERView Matrix C100 Series takes ZeroU of rack space in the server room allowing for ultimate flexibility and ease of installation.

USB Powered
Using less than 3 Watts, the device can be powered from USB. This means there is no need for an external PSU. Options for powering from an external PSU or redundant PSU are also available.

USB 2.0 with Class Control
Supports USB devices including graphics tablets, jog shuttles, joysticks, card readers and 3D explorers, alongside mass storage devices. The system can disable types of devices.

Perfect Digital Video in Real-Time
Using a spatially-lossless encoding system, with 1:1 pixel mapping, the device provides pixel-perfect and color accurate video with no artifacts.

Support for Dithered Video
Allows dithered analog or noisy video to pass through the system. Some Mac computers use this technique.

EDID Management
Intelligent EDID management allows either the true characteristics of the monitor to be passed back to the computer or a fixed one.

Digital Audio
The system can deliver USB stereo audio (bi-directional) or embedded video standard stereo audio (uni- directional).

Plug and Play
ADDERView Matrix devices are delivered in a zero config state so you can plug them in and start working on them straight away. There is no need for drivers or software to be installed.

Color producto	Black
Indicadores LED	Yes
Longitud cable	0,3 m
Material de la carcasa	Acrylonitrile butadiene styrene (ABS)
Máxima longitud cable	100 m
Tiempo medio entre fallos (MTBF)	836000 h
Pantalla integrada	No
Ethernet LAN	Yes
Puertos LAN Ethernet (RJ-45)	1
Humedad relativa de almacenamiento (H-H)	10 - 90 %
Humedad relativa de funcionamiento (H-H)	10 - 90 %
Temperatura de almacenamiento (T-T)	0 - 50 °C
Temperatura de funcionamiento (T-T)	0 - 50 °C
Guía de instalación rápida	Yes
Ancho de banda de vídeo	60 Hz
Canales de audio	2
Resolución máxima	2560 x 1600 Pixeles
Conector jack de entrada DC	Yes
Conexiones de audio	Yes
Puertos de consola	RJ–45
Puertos hub USB 2.0 tipo A	2
Tipo de conector USB	USB Type-A
Tipo de puerto de vídeo	HDMI
Adaptador de corriente externo	Yes
Consumo de energía (típico)	3 W
Fuente de alimentación	USB
Compliance certificates	ANSI/CE/China RoHS/cULus/Federal Communications Commission (FCC)/ICES/UKCA
