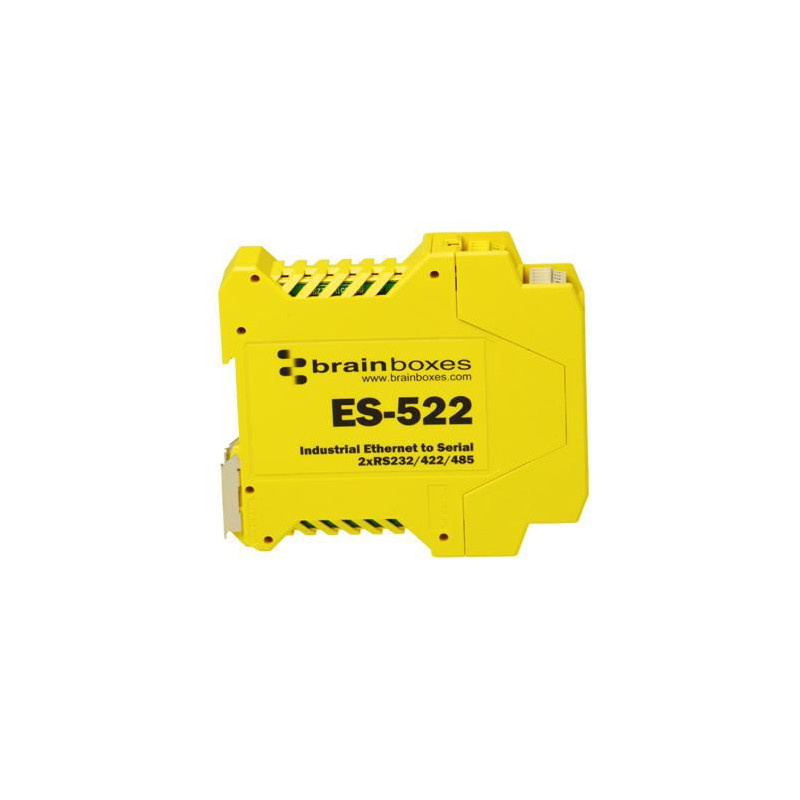

Es-522 Serial Server

Ethernet to Serial Device with 2 Port software selectable as RS232, RS422/485 Full duplex or RS422 Half duplex. ES-522 has removable Screw Terminals Blocks for easy wiring, a slim 'end on' case and integral DIN rail mount. Our Industrial Ethernet to Serial has an operating temperature range of -30 to +80 degrees Celsius and with +5VDC to +30VDC Dual input reverse polarity protected power supply making it perfect for industrial applications. Data transfer rates up to 1,000,000 baud, coupled with 1Mbit/s line drivers deliver uncompromising performance. Our Industrial ES range provides simple instant networked serial ports in demanding environments. Serial Port Tunneling allows serial cable replacement over any distance, no software required. Suitable to be wired into existing power and network infrastructure or can be used with our PW-600 power supply.

- 2 Port RS-232/422/485
- Industrial Ethernet to Serial Device Server
- Data rate from 110 to 921,600 baud
- Removable, colour-coded, number terminal blocks
- 30°C to +80°C Temperature range
- Robust, Slim Design, Integrated DIN rail mount

Indicadores LED	Yes
Humedad relativa de funcionamiento (H-H)	5 - 95 %
Temperatura de almacenamiento (T-T)	-40 - 85 °C
Temperatura de funcionamiento (T-T)	-30 - 80 °C
Puertos LAN Ethernet (RJ-45)	1
Tecnología de cableado	10/100/1000Base-T(X)
Consumo de energía	60 mA
Voltaje de entrada	5 - 30 V
Protocolos de red soportados	ICMP, IP, TCP, UDP, DHCP, BOOTP, Telnet, HTTP, RFC2217
Certificación	RoHS, WEEE, FCC, UL, METL, TAA, AEO
Puertos serie	2
Soporte de control de flujo	Yes
Tipo de interfaz serie	RS-232/422/485
Velocidad	1000 Kbit/s
Velocidades datos Ethernet LAN	10/100 Mbit/s
Garantía	1 año
Dimensiones (AnxPxAl)	96.3 x 101 x 25 mm
Longitud del paquete	11,45 cm
