300M HDBase T3.0 U/FTP CAT6A

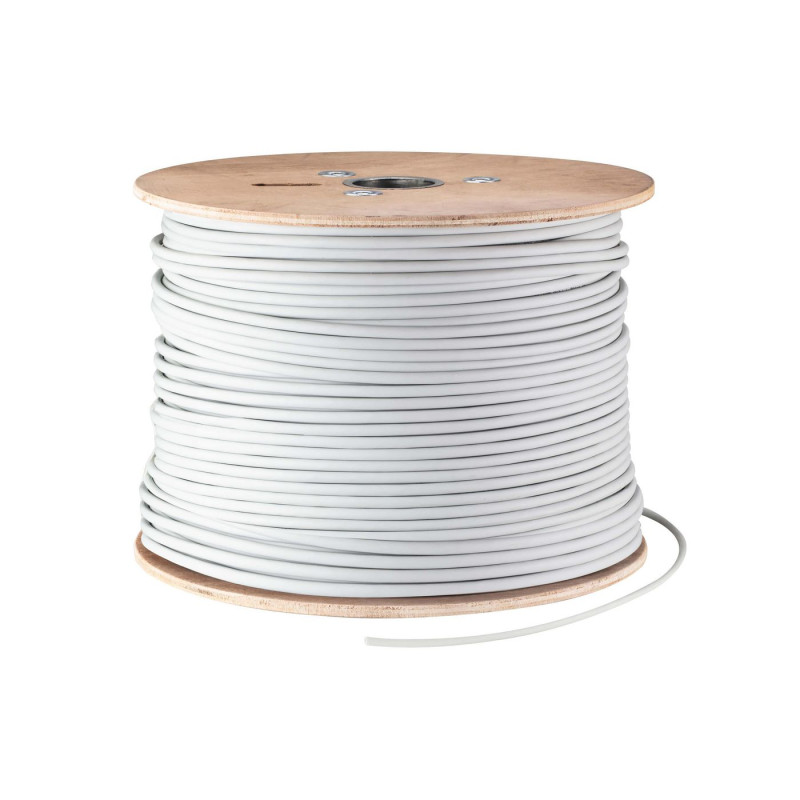

Engineered to simplify AV / IT integration, the 2L-29330 U/FTP Cat 6A Cable features HDBaseT 3.0 technology to provide uncompressed transmission of up to True 4K video, audio, Ethernet, power, and control signals across 100m with the support for sweep frequencies up to 500 MHz. The cable length of 300m can be tailored to fit your precise needs, adding flexibility for various project requirements. The 2L-29330 is not attached with RJ-45 connector, so it is highly recommended to order ATEN 2A-245G Cat 6A RJ-45 connector individually for better performance.

The 2L-29330 features four individually Al-Mylar tape-shielded pairs of 23 AWG wire, further protected by an overall braid of tinned copper. The shielding provides protection against electromagnetic interference (EMI); the jacket is made of eco-friendly Low Smoke Zero Halogen (LSZH) materials for increased safety, particularly in the event of a fire.

The 2L-29330 works seamlessly with ATEN HDBaseT extenders, splitters, and matrix switches, making it a versatile choice for any AV / IT setup. This cable is perfect for large-scale installations where long-distance, high-quality AV and control signal transmission is crucial, such as conference rooms, lecture halls, banquet halls, museums, and exhibition centers.

The 2L-29330 is engineered for professional environments that demand superior performance over long-distances. Its extended length and advanced shielding ensure that users AV and IT systems operate at peak efficiency, delivering uncompressed True 4K signals without interference.

Certificación	HDBaseT
Blindaje de cable	U/FTP (STP)
Cable estándar	Cat6a
Color producto	Grey
Conector 1	No
Conector 1 género	No
Conector 2	No
Conector 2 género	No
Forma del cable	Round
Longitud del cable	300 m
Material conductor	Copper
Material cubierta	Low smoke zero halogen (LSZH)
Plug and play	Yes
Tamaño de cable AWG	23/26
Tipo de conductor	Solid
Velocidad de transferencia de datos	16000 Mbit/s
Temperatura de funcionamiento (T-T)	-20 - 60 °C
Impedancia	100 Ω
Cantidad por pack	1 pieza(s)
Diámetro exterior	7,2 mm
Espesor del aislamiento	1,46 mm
