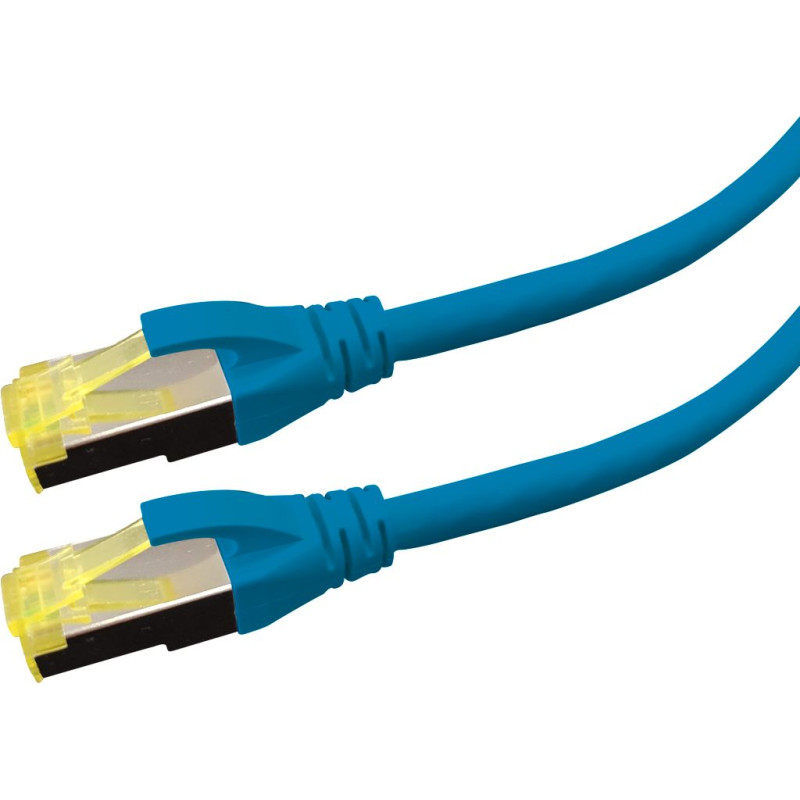

LOGON PREMIUM Patch cable cat6a s/ftp - Ref. APR6A100B

Model: Logon Premium APR6A100B

CAT6A S/FTP 26AWG 4PAIR LSOH Patch Cable 10m Blue

Specifications

CONSTRUCTION


Conductor Material: Stranded AWG 26 bare copper
Cable AWG: 7/0.16 mm
Shield Overlap: Aluminum/polyester ‰¥25%
Braid Shield Coverage: Aluminum Magnesium Alloy wire ‰¥40%
Insulations Materials: SKIN-FOAM- SKIN
Insulations Nom. Thickness: 0.26
Insulations Diameter: 1.02 (±0.05mm)
Outer Jacket: LSZH
Jacket Nom. Thickness: 0.5
Jacket Diameter: 6.2 (±0.30mm)
Lenght: 10 meter
Color: Blue


ELECTRONIC PERMORMANCE


Max. Conductor: DC
Resistance: 148 (Ω/km)
Min. Insulation Resistance: 5000 (Ω/km)
Dielectric Strength: DC-1KV/1 Min
1.0-250MHZ Characteristic
Impedance 100±15 (ohms)
1.0-500MHZ Delay Skew ‰¤45 (ns/100m)
Pair to Ground Capacitance
Unbalance ‰¤330 (Pf/100m)
Resistance Unbalance between
pairs ‰¤4 (%)
Max Mutual Capacitance 5.6 (nF/100m)
Before Aging Tensile Strength ‰¥9 (Mpa)
Before Elongation ‰¥100(%)
After Aging 100°C*24h*7d
Tensile Strength ‰¥75%
After Aging 100°C*24h*7d
Before Elongation ‰¥50
Velocity of Propagation NVP 78%

Blindaje de cable	S/FTP (S-STP)
Cable estándar	Cat6a
Color producto	Blue
Conector 1	RJ45
Conector 1 género	Male
Conector 2	RJ45
Conector 2 género	Male
Libre de halógeno	Yes
Longitud del cable	10 m
Material conductor	Copper
Tamaño de cable AWG	26/7
Garantía	2 años
