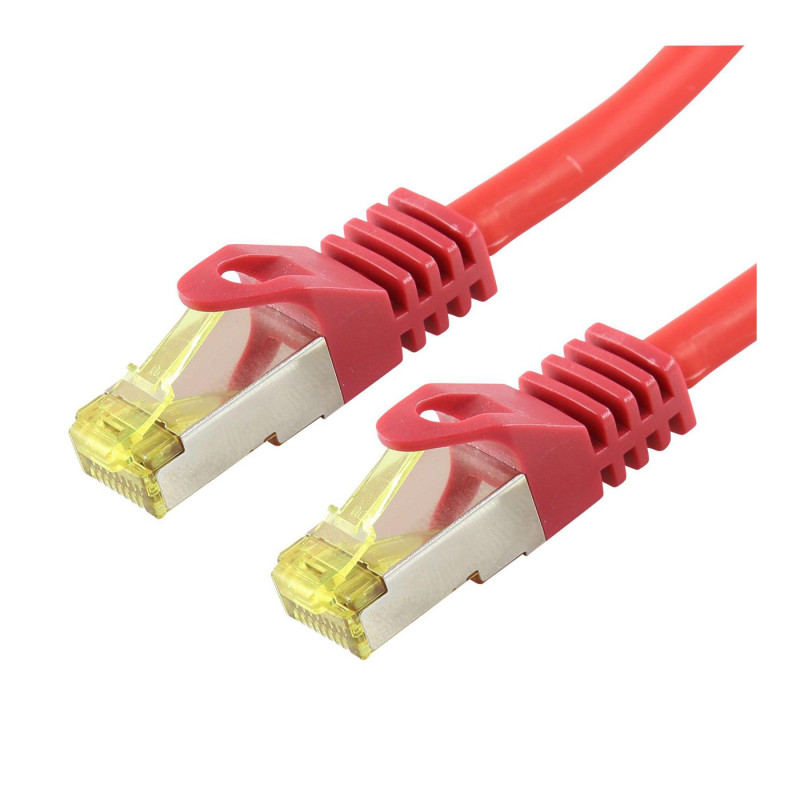

LOGON PROFESSIONAL Patch cable sftp/awg27/lsoh - Ref. TCR6ASS150R

Model: Logon Professional TCR6ASS150R

CAT 6a patch cable S/FTP (PiMF), red

Features

LSZH halogen-free, CU
suitable for 10 Gigabit (10/100/1000/10000 Mbit) network
double shielded LAN/network cable to connect network components with 2 x RJ45 connectors
Cat 6(A) tested - incl. test report
with 50µ gold plated PINs
pairs screening: PIMF (pairs in metal foil) + outer shield: braiding
with length indication on the slimline strain relief
with latch protection
pair-sequence acc. to EIA/TIA 568B

Specifications
Connections

Connection, type: RJ45 male (8P8C)
Connection 2, type: RJ45 male (8P8C)
Latch protection: both sides
Connection, shielding: yes

Cable

Cable type: round cable
Specification: CAT 6a
Shielding class: S/FTP (PiMF)
AWG: 27/7 (stranded)
Cable sheath diameter (approx.): 6 mm
Inner conductor material: CU (copper)
Cable length: 15 m
Material cable sheath: LSZH
Number of shieldings: 2 x
Type 1, shielding: foil (alu) PiMF
Type 2, shielding: braid (alu) overall shield
Kink protection: both sides
LSZH compliant: yes

Signal transmission

max. bandwidth: 500 MHz

General

Consumption Unit: 1 pc. in polybag
Color: red
Operating temperature from: -20 °C
Operating temperature up to: 65 °C

Blindaje de cable	S/FTP (S-STP)
Cable estándar	Cat6a
Color producto	Red
Conector 1	RJ45
Conector 1 género	Male
Conector 2	RJ45
Conector 2 género	Male
Libre de halógeno	Yes
Longitud del cable	15 m
Material conductor	Copper-Clad Aluminium (CCA)
Garantía	2 años
