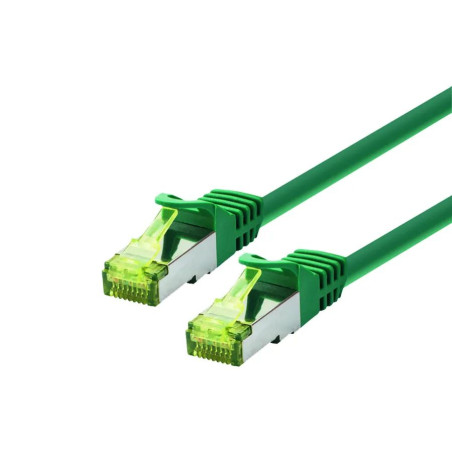

PATCH CABLE SFTP/PIMF/LSOH

suitable for 10 Gigabit (10/100/1000/10000 Mbit) network

double shielded LAN/network cable to connect network components with 2 x RJ45 connectors
Cat 6(A) tested - incl. test report
with 50µ gold plated PINs
pairs screening: PIMF (pairs in metal foil) + outer shield: braiding
with length indication on the slimline strain relief
with latch protection
pair-sequence acc. to EIA/TIA 568B
Connections

Connection, shielding: yes
Latch protection: both sides
Connection, type: RJ45 plug (8P8C)
Connection 2, type: RJ45 plug (8P8C)
Cable

Shielding class: S/FTP (PiMF)
Specification: CAT 6a
Cable type: round cable
Cable length: 0.25 m
Inner conductor material: CU (copper)
AWG: 27
Number of shieldings: 2 x
Type 1, shielding: foil (alu) PiMF
Type 2, shielding: braid (aluminum)
Kink protection: both sides
LSZH compliant: yes
Signal transmission

max. bandwidth: 500 MHz
General

Outer sheath material: LSZH
Color: green

Blindaje de cable	S/FTP (S-STP)
Cable estándar	Cat6a
Color producto	Green
Conector 1	RJ45
Conector 1 género	Male
Conector 2	RJ45
Conector 2 género	Male
Libre de halógeno	Yes
Longitud del cable	0,25 m
Material conductor	Copper-Clad Aluminium (CCA)
Garantía	2 años
