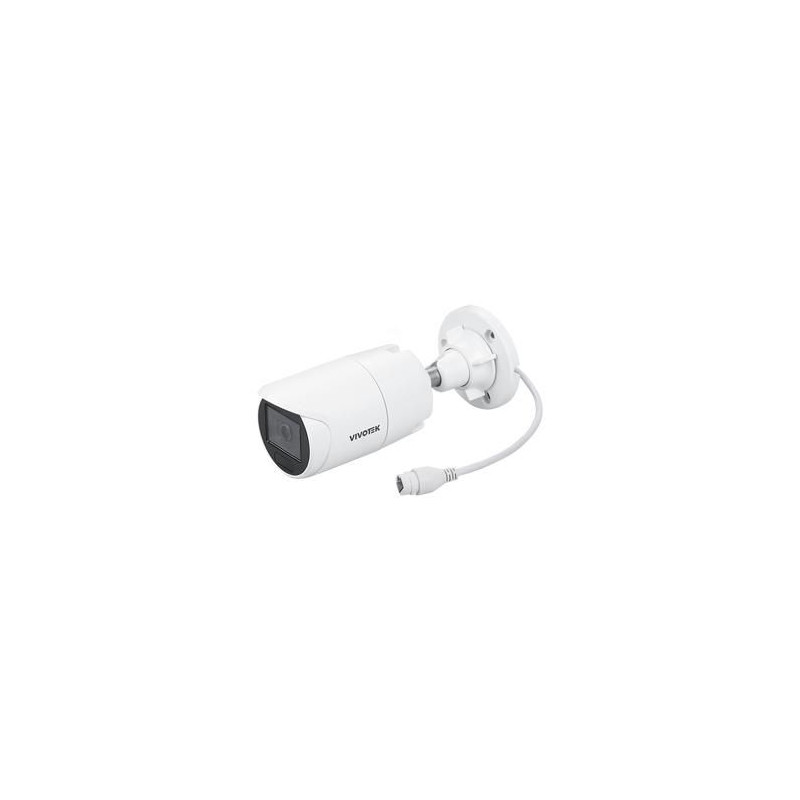

Vivotek Security Camera Bullet Ip - Ref. IB9383-HV

Built with Magic, Priced for Value
The 9383 is your gateway to smarter security. As our first AI camera in the C-Series, it boasts an advanced Sony image sensor coupled with STARVIS 2 technology, delivering 2.5x greater dynamic range and light sensitivity. With Smart VCA, and vision object analytics, it's a powerhouse of AI intelligence, making your security solutions simpler, smarter, and safer.

Imaging Performance
Experience class-leading image performance with the 9383. Its advanced Sony image sensor, combined with STARVIS 2 technology, delivers exceptional clarity and precision. Enjoy a 2.5x increase in dynamic range and light sensitivity, ensuring superior visibility in all lighting conditions. From bright daylight to low-light environments, rest assured that every detail is captured with remarkable clarity.

Daylight Clarity
Stunning daytime imagery with vibrant colors and balanced exposure. The 83 series delivers crisp, clear visuals that capture every detail with vivid accuracy, ensuring optimal surveillance performance in any lighting condition.

Enhanced Visibility in Harsh Lighting
Superior image quality with WDR technology. Even in challenging scenarios like an office setting with sunlight streaming through the window, the 83 series maintains clear visibility, minimizing glare and shadowing for enhanced detail and accuracy in surveillance footage.

Nighttime Vision
Exceptional low-light color performance with sharper, non-overblown imagery around light sources. The 83 series ensures balanced exposure between dark and bright regions, delivering evenly-lit, well-exposed footage with balanced contrast. Enjoy clear and visible images, even within LED backlit displays, for enhanced surveillance effectiveness.

AI Powerhouse
Class-leading AI features in our entry-tier series, providing you with advanced analytics and vision object analytics capabilities for unmatched security solutions.

Enhance your investigative efficiency with potent data revealed by the 83 series, identifying people and vehicles by their distinctive attributes such as color, gender, and type. Simplify searches and minimize redundant results with precise object tracing.

Object Detection Performance
Class-leading AI Processor effortlessly manages over 25 detection objects for advanced AI analytics.

Smart VCA: AI-Powered Video Analytics on Edge
Empowers the 83 series to collect more valuable scene awareness data than traditional frame-difference-based video motion detection. Operating as edge-based applications, Smart VCA also minimizes bandwidth and storage usage. Smart VCA is designed to improve efficiency and reduce operators' workloads.

Vision Object Analytics: AI-Driven Solution
While AI adoption has presented challenges in installation and configuration for many, the 83 series with VIVOTEK vision object analytics revolutionizes the process, simplifying user judgment through automated investigation.

Design
The 83 series is a comprehensive package, meticulously designed with fundamental principles spanning from hardware to software.

IP66 + IK10
Weather-resistant and vandal-proof, ensuring durability even in harsh outdoor conditions. Built to withstand extreme weather elements and protect against vandalism, providing reliable security in any environment.

Relación señal-ruido (SNR)	56 dB
Ángulo de inclinación (tilt)	0 - 90 °
Ángulo de rotación	180 °
Ángulo de visión de la lente, diagonal	105.8 °
Ángulo de visión de lente, horizontal	79.6 °
Ángulo de visión de lente, vertical	57.8 °
Iluminación mínima	0,055 lx
Rango panorámico (pan)	0 - 350 °
Velocidad de obturación	1/5 - 1/32000 s
Código de protección (IP)	IP66
Código IK	IK10
Color producto	White
Factor forma	Bullet
Indicadores LED	Power/Status
Protección	Vandal proof
Resistente a la intemperie	Yes
Tipo de montaje	Ceiling/wall
Tamaño sensor óptico	1/2.8 "
Tipo de sensor	CMOS
Capacidad zoom	Yes
Distancia de detección	78,3 m
Distancia de identificación	7,8 m
Distancia de observación	31,3 m
Distancia de reconocimiento	15,6 m
Distancia focal	3,6 cm
Máximo número de apertura	2
Número de lentes	1
Zoom digital	48 x
Controlado remotamente	Yes
Bluetooth	No
Estándares de red	IEEE 802.3af
Ethernet LAN	Yes
Número de usuarios	10 usuario(s)
Soporte de calidad de servicio (QoS)	Yes
Tipo de interfaz Ethernet	Fast Ethernet
Wi-Fi	No
Distancia visión nocturna	30 m
Número de LEDs de iluminación	2
Tipo de LED	IR
Visión nocturna	Yes
Humedad relativa de funcionamiento (H-H)	0 - 90 %
Temperatura de funcionamiento (T-T)	-30 - 55 °C
Navegador compatible	Chrome 58.0 or above
Guía de instalación rápida	Yes
Número de cámaras	1
Tornillos incluidos	Yes
Amplio rango dinámico (WDR)	Yes
Control PTZ	Yes
Instalación soportada	Outdoor
Modo día/noche	Yes
Tecnología de conectividad	Wired
Tipo	IP security camera
Puertos LAN Ethernet (RJ-45)	1
Consumo de energía (máx.)	10,6 W
Consumo de energía (típico)	6 W
Tipo de alimentación	PoE
Algoritmos de seguridad	HTTPS
Autenticación Digest	Yes
Cifrado HTTPS	Yes
Clasificación de objetivos personas y vehículos	Yes
Detección de movimiento de vídeo	Yes
Espejo	Yes
Network access storage (NAS)	Yes
Notificación de alertas	E-mail
Protección de privacidad	Yes
Capacidad RAM	2000 MB
HDD integrado	No
Lector de tarjetas integrado	Yes
Memoria flash	8000 MB
Tamaño máximo de la tarjeta de memoria	1 TB
Tarjetas de memoria compatibles	MicroSD (TransFlash)/SDHC/SDXC
Sistemas operativos Mac soportados	Mac OS X 10.12 Sierra
Sistemas operativos Windows soportados	Windows 10/Windows 7/Windows 8
Iris	Yes
Garantía	1 año
Ajuste de calidad de imagen	Brightness/Contrast/Saturation/Sharpness
Compensación de contraluz (BLC)	Yes
Compensación de contraluz (HLC)	Yes
Control de velocidad de bits	Constant Bit Rate (CBR)
Formatos de compresión de vídeo	H.264/H.265/M-JPEG
Formatos de vídeo compatibles	H.264/H.265/M-JPEG
Grabación de vídeo	Yes
Megapixels totales	5 MP
Resolución máxima	2560 x 1920 Pixeles
Smart IR	Yes
Superposición de marca de tiempo	Yes
Transmisión de video	Yes
Velocidad de fotogramas	60 pps
Volteo y espejo	Yes
Diámetro	9,1 cm
Longitud	22,66 cm
