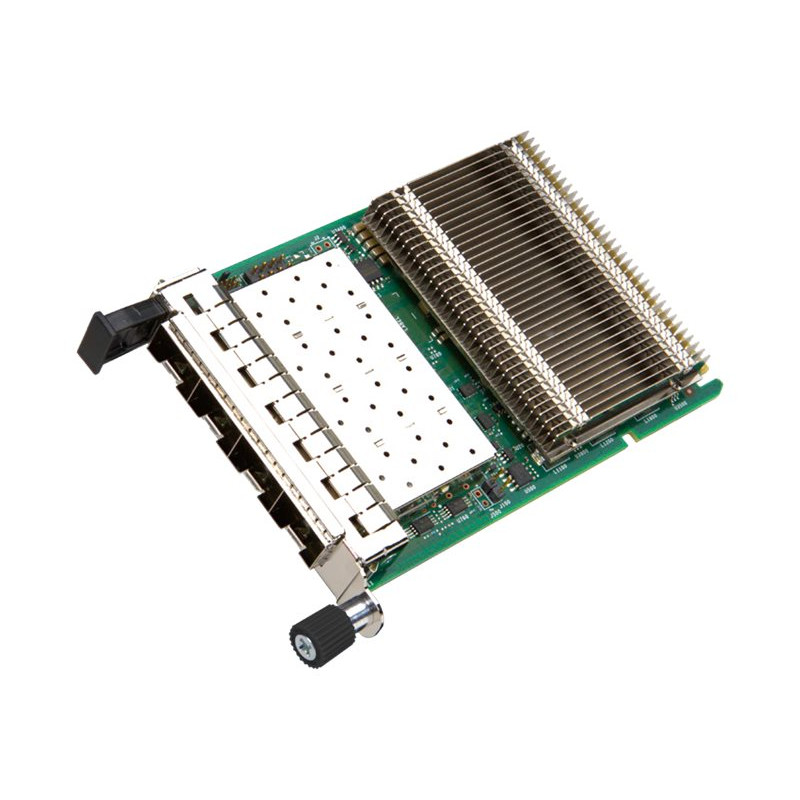

Intel Ethernet E835XXVDA4OC3 Single

Intel® Trusted Execution Technology
Intel® Trusted Execution Technology for safer computing is a versatile set of hardware extensions to Intel® processors and chipsets that enhance the digital office platform with security capabilities such as measured launch and protected execution. It enables an environment where applications can run within their own space, protected from all other software on the system.

iWARP/RDMA
iWARP delivers converged, low-latency fabric services to data centers through Remote Direct Memory Access (RDMA) over Ethernet. The key iWARP components that deliver low-latency are Kernel Bypass, Direct Data Placement, and Transport Acceleration.

Intel® Data Direct I/O Technology
Intel® Data Direct I/O Technology is a platform technology that improves I/O data processing efficiency for data delivery and data consumption from I/O devices. With Intel DDIO, Intel® Server Adapters and controllers talk directly to the processor cache without a detour via system memory, reducing latency, increasing system I/O bandwidth, and reducing power consumption.

PCI-SIG* SR-IOV Capable
Single-Root I/O Virtualization (SR-IOV) involves natively (directly) sharing a single I/O resource between multiple virtual machines. SR-IOV provides a mechanism by which a Single Root Function (for example a single Ethernet Port) can appear to be multiple separate physical devices.

Flexible Port Partitioning
Flexible Port Partitioning (FPP) technology utilizes industry standard PCI SIG SR-IOV to efficiently divide your physical Ethernet device into multiple virtual devices, providing Quality of Service by ensuring each process is assigned to a Virtual Function and is provided a fair share of the bandwidth.

Virtual Machine Device Queues (VMDq)
Virtual Machine Device Queues (VMDq) is a technology designed to offload some of the switching done in the VMM (Virtual Machine Monitor) to networking hardware specifically designed for this function. VMDq drastically reduces overhead associated with I/O switching in the VMM which greatly improves throughput and overall system performance

Componente para	Server
Factor forma	OCP 3.0
Indicadores LED	Yes
Interno	Yes
Compatibilidad iSCSI	Yes
Estándares de red	IEEE 1588
Ethernet LAN	Yes
Máxima velocidad de transferencia de datos	25000 Mbit/s
Tipo de interfaz Ethernet	10 Gigabit Ethernet/25 Gigabit Ethernet/Gigabit Ethernet
Velocidades datos Ethernet LAN	1000/10000/25000 Mbit/s
Temperatura de almacenamiento (T-T)	-40 - 70 °C
Temperatura de funcionamiento (T-T)	0 - 65 °C
Almacenamiento sobre Ethernet	iSCSI, NFS
Altura del soporte	OCP 3.0
Cable de tarjeta de interfaz de red medio	Copper, Fiber
Compatible con PCI-SIG* SR-IOV	Yes
Descargas inteligentes	Yes
Estado	Launched
Fecha de lanzamiento	Q1'26
Intel Partición flexible de puertos	Yes
Intel Virtual Machine Device Queues (VMDq)	Yes
iWARP/RDMA	Yes
Número de clasificación de control de exportaciones (ECCN)	5A992.C
Opciones integradas disponibles	No
QoS en chip y gestión de tráfico	Yes
Segmento de mercado	Server
Sistema automatizado de seguimiento de clasificación de mercancías (CCATS)	G157815L2
Tecnología de virtualización para conectividad Intel (VT-c)	Yes
Tecnología E/S Intel Data Direct	Yes
Tecnología Intel Trusted Execution	No
URL resumen del producto	https://cdrdv2.intel.com/v1/dl/getContent/872480
Conector de fibra óptica	SFP28
Factor forma tarjeta PCI	Full-height (low-profile)
Interfaz	Fiber
Interfaz host	PCI Express
Puertos de fibra	4
Tecnología de conectividad	Wired
Versión PCI	4.0
Certificados de conformidad	BSMI/CE/Federal Communications Commission (FCC)/ICES/KCC/RCM/RoHS/UKCA
Garantía	1 año
