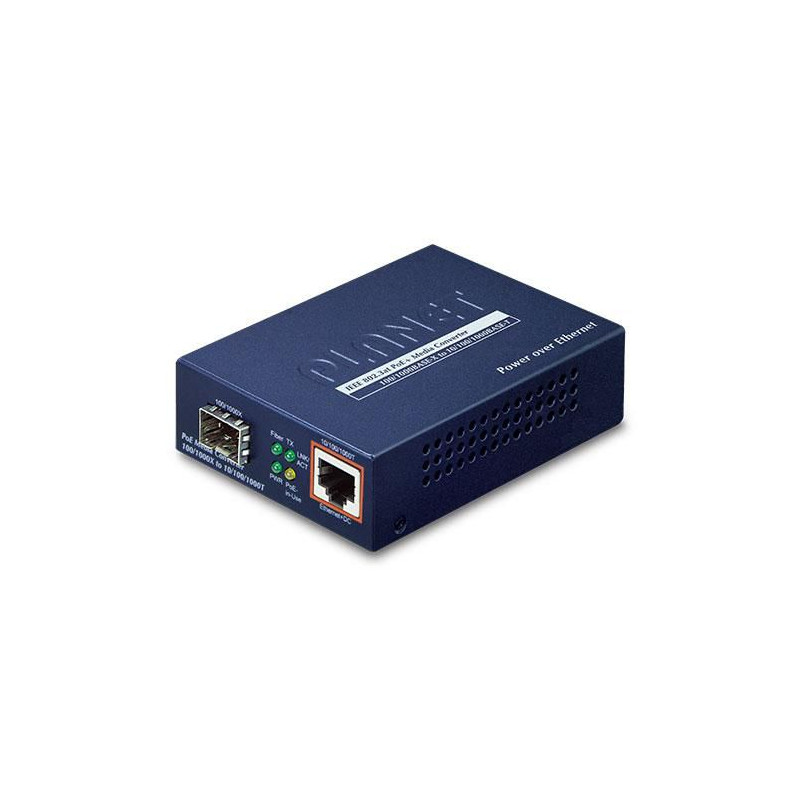

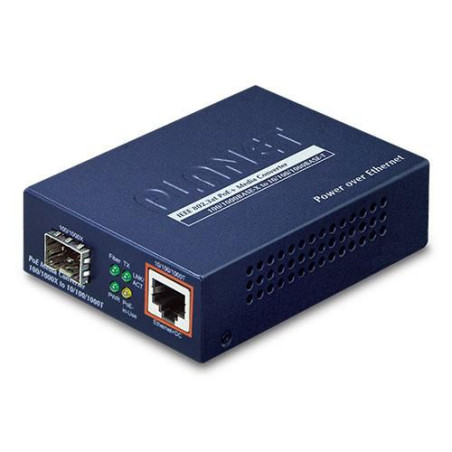

Planet IEEE802.3af/at PoE 10/100/1000 - Ref. GTP-805A-UK

As more and more PoE PD devices need higher power input and long-distance transmission,

PLANET has released a new Power over Ethernet Media Converter, GTP-80x series. With the brand-new IEEE 802.3at High Power over Ethernet technology applied, the GTP-80x series provides the following key features:

- IEEE 802.3at / IEEE 802.3af PoE standard compliance
- Supports a maximum of 30W output power
- 10/100/1000Mbps duplex mode supports on 1000Base-T port
- 1000Mbps Fiber-Optic support

The GTP-80x series is a Single-Port, Mid-Span IEEE 802.3at High Power over Ethernet converter designed specifically to satisfy the growing demand for higher power required network equipment such as PTZ (Pan, Tilt & Zoom) network cameras, PTZ speed dome, color touch-screen VoIP telephones, multi-channel (IEEE 802.11a / b / g / n) wireless LAN access points and other network devices that need higher power to function normally. The GTP-80x High Power over Ethernet converter series is an ideal solution to delivering data and power to network devices directly via the RJ-45 Port interface without the need for installing extra power outlets and electrical cabling.


Fiber-Optic Link Capability Extends the Range of Network Deployment

The maximum distance between the PoE PSE and PD is 100 meters. To extend the network device deployment range, the GTP-80x is integrated with Fiber interface. The GTP-80x PoE+ Media Converter is used to convert optical Ethernet signal to electrical Ethernet signal that allows two types of segments to connect easily, efficiently and inexpensively. It can convert 10/100/1000Base-T signal to 1000Base-X one and provide the diverse options of fiber connecting types to meet different network applications.

The GTP-80x series and its fiber connecting type includes:

- GTP-802:SC Fiber Interface with Multi-mode, Distance up to 220m and 550m
- GTP-802S:SC Fiber Interface with Single-mode, Distance up to 10km
- GTP-805A:LC Fiber Interface, supports Multi / Single Mode SFP module, Distance up to 120km max. (Varting on SFP module)

With the long Fiber distance support, it still sustains the transmission performance as high as 1000Mbps. It works in high performance Store and Forward mechanism, and also can prevent packet loss with IEEE 802.3x Flow Control (Full-Duplex) and the LFP (Link Fault Pass through function) (LLCF/LLR) with the DIP Switch design. Furthermore, it can immediately alarm the administrators the issue from the link media and provide efficient solution to monitoring the network power usage.


Quick and Easy High Power PoE Network Deployment

The GTP-80x series provides 52V DC power over Ethernet cables -- just insert DC voltage into Cat.5/5e/6 cable, allowing the cable between the PoE splitters (POE-151S / POE-152S / POE-162S) to transfer data and power simultaneously for up to 100 meters. Then it will spilt the digital data and the power into two selectable DC outputs (5V DC / 12V DC). Thus, it reduces cables and the dedicated electrical outlets on the wall, ceiling or any unreachable place. Most of all, it also eliminates the time for installation. The high Power over Ethernet solution frees the security IP camera and wireless AP deployment from restrictions of power outlet locations.

Certificación	FCC Part 15 Class A, CE
Color producto	Blue
Indicadores LED	Yes
Interno	No
Material de la carcasa	Metal
Auto MDI/MDI-X	Yes
Estándares de red	IEEE 802.3/IEEE 802.3ab/IEEE 802.3ad/IEEE 802.3at/IEEE 802.3u/IEEE 802.3x/IEEE 802.3z
Interfaz de entrada del convertidor	1000Base-T
Interfaz de salida del convertidor	1000Base-X
Máxima velocidad de transferencia de datos	1000 Mbit/s
Sistema dúplex	Full/Half
Tipo de interfaz Ethernet	Gigabit Ethernet
Velocidades datos Ethernet LAN	10/100/1000 Mbit/s
Humedad relativa de funcionamiento (H-H)	5 - 90 %
Temperatura de funcionamiento (T-T)	0 - 50 °C
Conector de fibra óptica	SFP
Puertos de fibra	1
Puertos LAN Ethernet (RJ-45)	1
Tecnología de conectividad	Wired
Alimentación PoE	Yes
Presupuesto total alimentación PoE	30 W
Garantía	3 años
