Planet 10/100Base-TX to 100Base-FX - Ref. FT-802
78,45 €
64,83 € sin IVA
Impuestos incluidos
10/100Base-TX to 100Base-FX. Producto Planet.
Pago 100% seguro
Tarjeta (RedSys) y transferencia bancaria
Envíos y plazos
Envío 12,04 € (IVA inc.) · GRATIS a partir de 299 €
Devoluciones en 14 días
Devolución fácil y sin complicaciones
Factura de empresa
IVA desglosado y factura oficial en cada compra

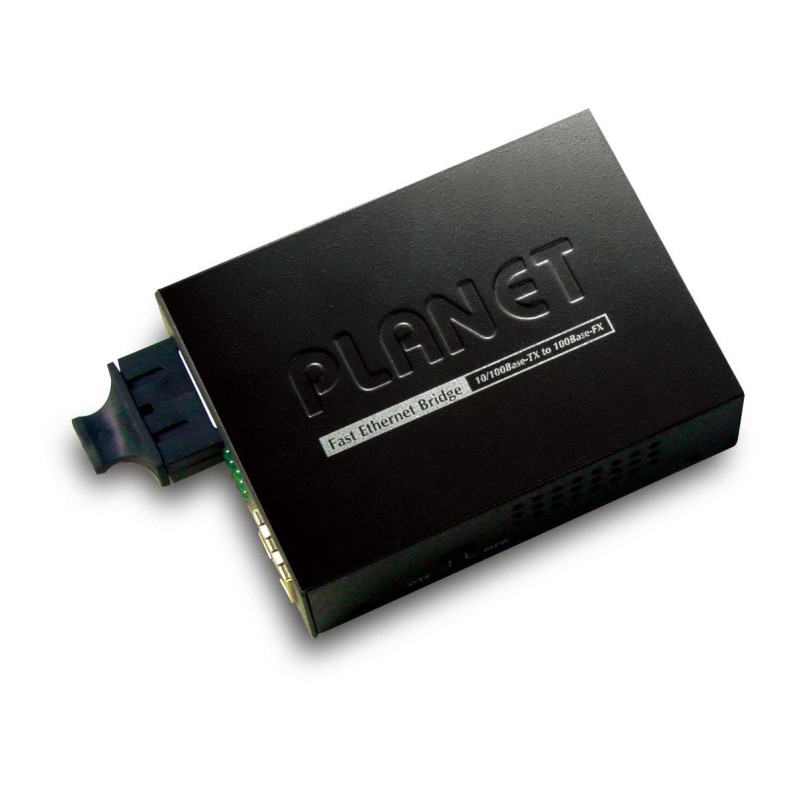

The PLANET FT-80X is Fast Ethernet Bridge 100Base-FX fiber to 10/100Base-TX shielded twisted pair (STP) converter. It supports selectable for half-duplex and full-duplex operations and supports a variety of fiber options. The converter auto-adapts to the highest level of performance supported by the device connected to the STP port. When the device is a switch or a workstation that supports full duplex, the converter adapts to the full-duplex mode and provides an effective 200Mbps bandwidth. When the connected device is a hub or a workstation that supports only half duplex, the converter adapts to the half-duplex mode and provides the nominal 100Mbps bandwidth. An override switch provides total manual control over the half/full-duplex operation, in fiber-optic interface. The fiber port of converter operates at 1310 nm and uses ST, SC, MT-RJ, VF-45 or WDM connectors. Multi-mode models that support distances up to 2 km and single-mode models that support distances up to 15/35/50 km are available.
The FT-80x series are with LFP (Link Fault Pass Through function) (LLCF/LLR) and the DIP Switch design. LLCF/LLR can immediately alarm administrators the problem of the link media and provide efficient solution to monitor the net. The DIP Switch provides disable or enable the LFP function.
LLCF (Link Loss Carry Forward) means when a device connected to the converter and the TP line loss the link, the converter's fiber will disconnect the link of transmit. LLR (Link Loss Return) means when a device connected to the converter and the fiber line loss the link, the converter's fiber will disconnect the link of transmit. Both can immediately alarm administrators the problem of the link media and provide efficient solution to monitor the net.
The FT-80x series are with LFP (Link Fault Pass Through function) (LLCF/LLR) and the DIP Switch design. LLCF/LLR can immediately alarm administrators the problem of the link media and provide efficient solution to monitor the net. The DIP Switch provides disable or enable the LFP function.
LLCF (Link Loss Carry Forward) means when a device connected to the converter and the TP line loss the link, the converter's fiber will disconnect the link of transmit. LLR (Link Loss Return) means when a device connected to the converter and the fiber line loss the link, the converter's fiber will disconnect the link of transmit. Both can immediately alarm administrators the problem of the link media and provide efficient solution to monitor the net.
| Certificación | FCC Class A, CE Class A |
| Color producto | Black |
| Indicadores LED | Yes |
| Interno | No |
| Material de la carcasa | Metal |
| Estándares de red | IEEE 802.3/IEEE 802.3u/IEEE 802.3x |
| Interfaz de entrada del convertidor | 100BASE-FX/100Base-TX/10Base-T |
| Interfaz de salida del convertidor | 100Base-FX |
| Máxima velocidad de transferencia de datos | 100 Mbit/s |
| Sistema dúplex | Full/Half |
| Tipo de interfaz Ethernet | Fast Ethernet |
| Velocidades datos Ethernet LAN | 10/100 Mbit/s |
| Humedad relativa de almacenamiento (H-H) | 5 - 90 % |
| Humedad relativa de funcionamiento (H-H) | 5 - 90 % |
| Temperatura de almacenamiento (T-T) | -40 - 70 °C |
| Temperatura de funcionamiento (T-T) | 0 - 50 °C |
| Diámetros de cable de fibra admitidos (núcleo/revestimiento) | 50/125/62.5/125/9/125 µm |
| Estructura modo fibra | Multi-mode/Single-mode |
| Longitud de onda | 1310 nm |
| Máxima distancia de transferencia | 2000 m |
| Potencia Tx (máx.) | -14 dBmW |
| Potencia Tx (mín.) | -23,5 dBmW |
| Sensibilidad | -31,8 dBmW |
| Conector de fibra óptica | SC |
| Puertos de fibra | 1 |
| Puertos LAN Ethernet (RJ-45) | 1 |
| Tecnología de conectividad | Wired |
| Corriente de entrada | 2 A |
| Voltaje de entrada | 5 V |
| Garantía | 3 años |
MP-584577
1 unidad
Ficha técnica
- Estándares de red
- IEEE 802.3/IEEE 802.3u/IEEE 802.3x
- Indicadores LED
- Yes
- Tecnología de conectividad
- Wired
- Interno
- No
- Certificación
- FCC Class A, CE Class A
- Corriente de entrada
- 2 A
- Voltaje de entrada
- 5 V
- Material de la carcasa
- Metal
- Tipo de interfaz ethernet
- Fast Ethernet
- Longitud de onda
- 1310 nm
- Sensibilidad
- -31,8 dBmW
- Potencia Tx (máx.)
- -14 dBmW
- Garantía
- 3 años
- Color producto
- Black
- Humedad relativa de almacenamiento (H-H)
- 5 - 90 %
- Humedad relativa de funcionamiento (H-H)
- 5 - 90 %
- Temperatura de almacenamiento (T-T)
- -40 - 70 °C
- Temperatura de funcionamiento (T-T)
- 0 - 50 °C
- Máxima velocidad de transferencia de datos
- 100 Mbit/s
- Velocidades datos Ethernet LAN
- 10/100 Mbit/s
- Puertos LAN Ethernet (RJ-45)
- 1
- Conector de fibra óptica
- SC
- Puertos de fibra
- 1
- Máxima distancia de transferencia
- 2000 m
- Estructura modo fibra
- Multi-mode/Single-mode
- Sistema dúplex
- Full/Half
- Diámetros de cable de fibra admitidos (núcleo/revestimiento)
- 50/125/62.5/125/9/125 µm
- Interfaz de entrada del convertidor
- 100BASE-FX/100Base-TX/10Base-T
- Interfaz de salida del convertidor
- 100Base-FX
- Potencia Tx (mín.)
- -23,5 dBmW
Referencias específicas
- ean13
- 4711213680526
- MPN
- FT-802
