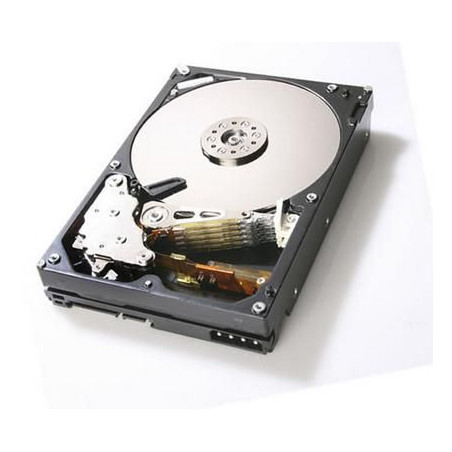

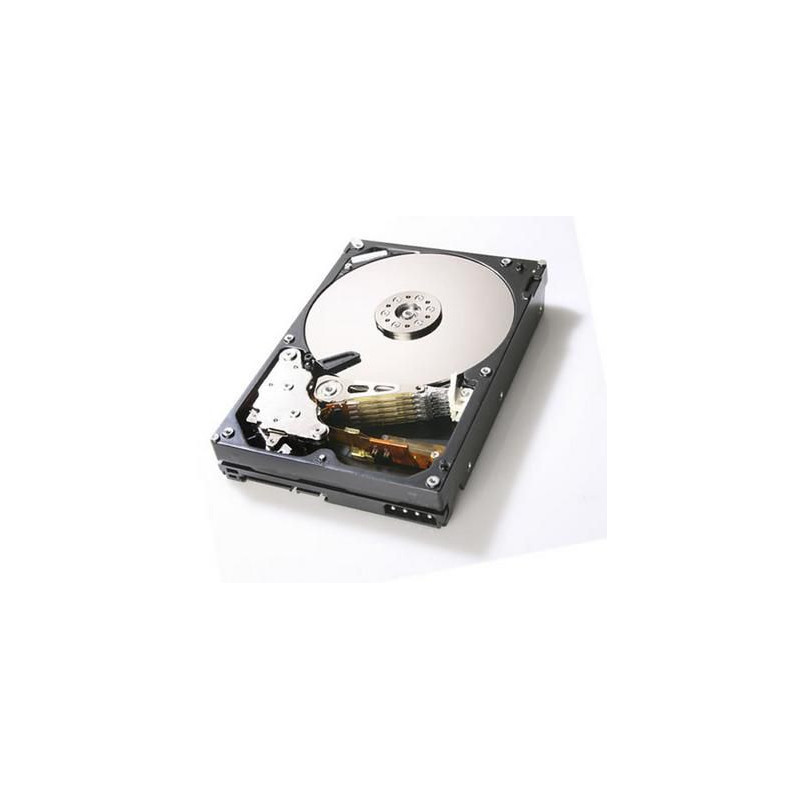

1TB Hard Drive Unit

An industry fi rst, the Hitachi Deskstar 7K1000 hard disk drive delivers up to one terabyte of
storage capacity for demanding consumer and commercial computing products. It leverages
the industry’s most reliable perpendicular magnetic recording (PMR) techniques and the latest
advancements in silent acoustics, shock protection, and head technology to maximize capacity,
performance and fi eld reliability. Best-in-class power management and thermal emissions
help manufacturers meet energy compliance targets and extend drive life.

Proven PMR technology
Field-proven in 2.5-in. drives, Hitachi’s PMR implementation continues to demonstrate
reliability equal to or exceeding conventional longitudinal technology. The Deskstar 7K1000’s
second-generation PMR head and media technology improves noise characteristics and
thermal stability.

Reduced power idle modes
Unique to Hitachi drives, the Deskstar 7K1000 features three advanced low-power idle
modes—active, unload and low-power. Together, they reduce power consumption at the drive
level up to 20%, optimize non-operational latency and lower drive temperature for cooler
system operation.

Outstanding shock resistance and power effi ciency
Through a patented ramp load/unload design disk heads (in non-operating modes) are
unloaded to a ramp outside the disk where they rest in a low-power ‘unload idle’ state until
activated. In low RPM drives, this can reduce power by up to 50%. Ramp load/ unload
provides tangible benefi ts for the drive and host product. It greatly minimizes the risk of shock
damage by eliminating direct contact between the heads and disks. Reduced wear and heat
improve overall drive reliability. In the event of power loss to the drive, heads are unloaded
using energy extracted from the spinning disks. This patented power-saving feature helps to
reduce overall maintenance costs and extends the drive service life.

Another contributor to Deskstar 7K1000’s exceptional shock performance and power savings
is the use of compact, low-mass femto air-bearing sliders.

Extended fi eld reliability
An integrated thermal sensor monitors operating temperature, enabling the host processor to
intelligently adjust airfl ow as needed for cooling. Sensor integration reduces component cost
and increases reliability.

Deskstar 7K1000’s thermal fl y-height control (TFC) uses an integrated heating element to
precisely maintain a constant fl y-height throughout read and write operations. This reduces
raw soft error rate and, in turn, improves overall data integrity, drive performance and reliability.
Deskstar 7K1000’s iridium-manganese-chromium (IrMnCr) read head sensor technology offers
better performance and reliability in harsh conditions.

Hitachi Design Studios
Located around the world, Hitachi Design Studios assist customers with all aspects of integrating
hard drives into consumer electronic devices. Their services focus on drive selection,
evaluation and optimization, integration and design-in consulting, software compatibility
assessment, performance profi ling, problem analysis and reliability consulting.

Bytes por sector	512
Capacidad HDD	1 #ProductAttributes.Unit.Terabyte#
Ciclos de inicio/parada	50000
Conformidad RoHS	Yes
Interfaz	Serial ATA II
Latencia media	4,7 ms
Tamaño del búfer de unidad de almacenamiento	32 MB
Tamaño HDD	3.5 "
Tiempo de búsqueda de escritura	9,2 ms
Tiempo promedio de búsqueda	8,5 ms
Tipo	HDD
Velocidad de transferencia de interfaz HDD	3 Gbit/s
Velocidad HDD	7200 RPM
Choque no operativo	300 G
Choque operativo	70 G
Humedad relativa de almacenamiento (H-H)	5 - 95 %
Humedad relativa de funcionamiento (H-H)	8 - 90 %
Temperatura de almacenamiento (T-T)	-40 - 70 °C
Temperatura de funcionamiento (T-T)	5 - 60 °C
Vibración de funcionamiento	0,67 G
Vibración no operativa	1,04 G
Certificados de sostenibilidad	RoHS
Warranty	1 #ProductAttributes.Unit.Year#
