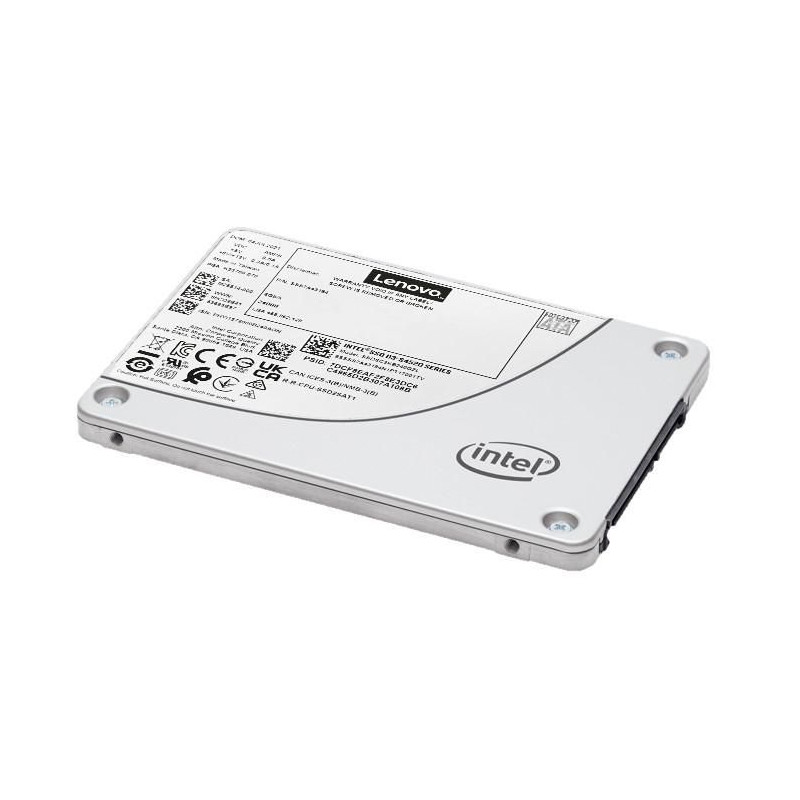

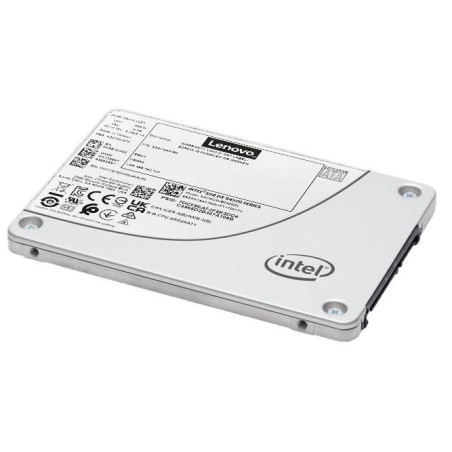

THINKSYSTEM 3.5 S4520 1.92TB

The ThinkSystem S4520 Read Intensive SATA SSDs are advanced 6Gb SATA solid-state drives that use 144-layer Intel 3D NAND TLC Flash Memory technology to provide an affordable solution with industry leading performance.

This product guide provides essential presales information to understand the S4520 SSDs, their key features and specifications, components and options, and configuration guidelines. This guide is intended for technical specialists, sales specialists, sales engineers, IT architects, and other IT professionals who want to learn more about S4520 SSDs and consider their use in IT solutions.

Capacidad SSD	2 #ProductAttributes.Unit.Terabyte#
Componente para	Server/workstation
Drive writes per day (DWPD)	2,5
Escritura aleatoria (4KB)	38000 IOPS
Factor forma SSD	3.5"
Interfaz	Serial ATA III
Latencia aleatoria - lectura (hasta)	104 µs
Latencia secuencial: escritura (hasta)	38 µs
Latencia secuencial: lectura (hasta)	37 µs
Lectura aleatoria (4KB)	91000 IOPS
Random latency - write (up to)	54 µs
Tiempo medio entre fallos (MTBF)	2000000 h
Tipo de memoria	3D TLC NAND
Velocidad de transferencia de datos	6 Gbit/s
Choque no operativo	1 kg
Choque operativo	1 kg
Humedad relativa de almacenamiento (H-H)	5 - 95 %
Temperatura de funcionamiento (T-T)	0 - 70 °C
Vibración de funcionamiento	2,17 G
Vibración no operativa	3,13 G
Clasificación de resistencia	8,8 PB
Consumo de energía (escritura)	3,1 W
Warranty	1 #ProductAttributes.Unit.Year#
