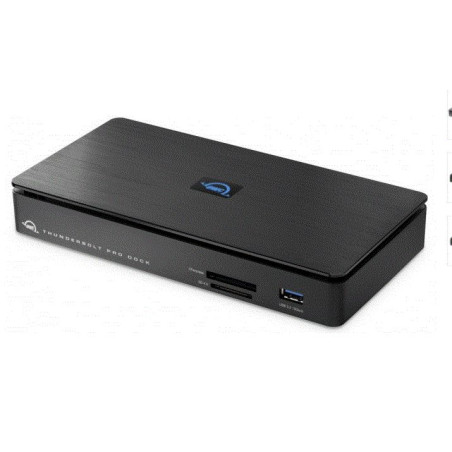

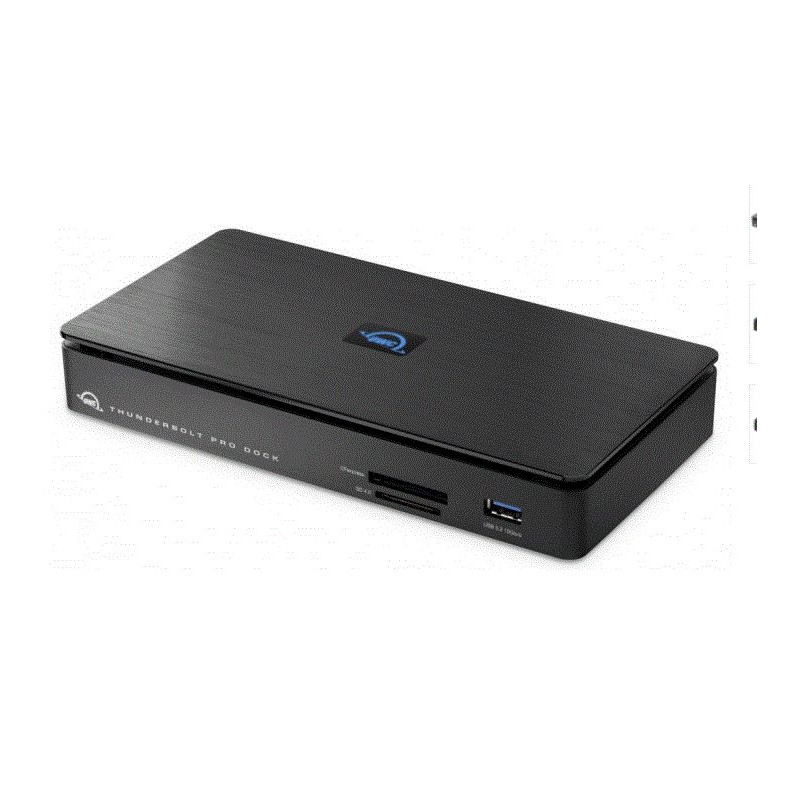

Thunderbolt Pro Dock With - Ref. OWCTB3DKPRO

High-Bandwidth and Flexibility for Demanding Hi-Res Needs
Pro-level docking stations should be ready to handle any situation that you encounter in a production workflow. The OWC Thunderbolt Pro Dock is your on-location and post-production “mission control” with an unrivaled combination of super-fast 10Gb/s Ethernet, CFexpress and SD card readers, two Thunderbolt ports, one USB-C port, and three USB-A ports.
With this unique productivity enhancing configuration, you can ingest RAW video and photo files at speeds up to 1630MB/s. Collaborate in a shared workflow environment via the 10Gb Ethernet port to keep your projects streaming from file setup to final renders with headroom to spare. View projects in greater detail with an 8K display or create a panoramic dual 4K display. Daisy chain up to five Thunderbolt devices. All while powering your laptop and managing the typical USB devices you need to get the job done.

Add Media Versatility to DIT Carts
When you’re on location, your cart needs the power of versatility. With conveniently accessible front-side CFexpress and SD 4.0 card readers, the Thunderbolt Pro Dock helps you manage multiple card uploads efficiently. It’s a huge asset when you’re covering live events like conferences, festivals, and concerts where you’re working with multiple videographers and photographers.

Calm and Connected
In addition to eliminating the on-set or in studio chaos of multiple connections, the Thunderbolt Pro Dock’s solid aluminum fanless design lets you work in calm silence…even when transferring a huge file over a network.

Pro Audio Video AVB Ready
Time-sensitive data such as audio and video media streams require Audio Video Bridging (IEEE 802.1Qav, AVB) ready gear. No sweat… you can stream vast volumes of high-quality data to multiple destinations in real-time with very low latency over existing network cable via the Thunderbolt Pro Dock’s 10Gb Ethernet port.

Small Footprint, Big Connections
Sized similarly to a single external drive enclosure, the Thunderbolt Pro Dock’s aluminum case helps keep cart weight streamlined while easily fitting into a cart drawer or small box during cart breakdown.
With two Thunderbolt 3 ports, the Thunderbolt Pro Dock offers incredible potential to connect multiple devices to take on the biggest projects. You can daisy-chain up to 5 additional Thunderbolt devices to the Thunderbolt Pro Dock for studio-level storage, RAID arrays, PCIe expansion units, or all of these combined and connected at 40Gb/s bandwidth.
Meet the challenges of any workflow with these Thunderbolt Pro Dock add ons:
-ThunderBlade: the ultimate on-site workflow drive
-ThunderBay: high-capacity RAID workstation
-OWC Express 4M2: compact, customizable 4-bay RAID array
-Envoy Pro FX: rugged and fast bus-powered portable SSD
-Mercury Helios 3S: high-end PCIe video capture, audio, and SSD card use
-Mercury Pro U.2 Dual: blazing fast NVMe SSD array

Conquers Workflows and Combats Clutter
When you’re back in your office or studio, the Thunderbolt Pro Dock has the power and ports you need to manage your workflow and take control of your workspace. The Thunderbolt Pro Dock is compact, so you can comfortably manage your peripherals and keep your workspace free of clutter. Its 10Gb Ethernet connection keeps you connected at top speeds, and with 85W charging power, your notebook is charged up and ready to move.

The right ports, right where you need them
Our engineers evaluated thousands of possibilities in discovering the optimal port configuration for nearly any environment. With its 10 ports of connectivity thoughtfully placed, the Thunderbolt Pro Dock delivers convenience while keeping desktops clutter–free. The docking station's front is designed for the easy connection of your portable devices and media cards, while the rear features a multitude of ports for your static devices so cables stay out of sight.

Front-facing:
-(1) USB-A 10Gb/s port
-(1) SD 4.0 card slot
-(1) CFexpress Type B card slot
Rear-facing:
-(2) Thunderbolt 3 (USB-C) ports
-(1) USB-C 10Gb/s port
-(2) USB-A 10Gb/s ports
-(1) DisplayPort 1.4
-(1) 10 Gigabit Ethernet

Safely Disconnect Drives with a Click
OWC Dock Ejector software safely disconnects multiple drives from the OWC Thunderbolt Pro Dock in a single click. Dock Ejector was designed by OWC hardware and software engineers to ensure all data is written before disconnection, saving time and protecting against data loss. It makes losing your hard-earned work a thing of the past.

Ethernet LAN	Yes
Listo para Wake-on-LAN	Yes
Puertos LAN Ethernet (RJ-45)	1
Tecnología de cableado Ethernet de cobre	10GBASE-T
Humedad relativa de almacenamiento (H-H)	5 - 95 %
Humedad relativa de funcionamiento (H-H)	8 - 90 %
Temperatura de almacenamiento (T-T)	-20 - 60 °C
Temperatura de funcionamiento (T-T)	5 - 35 °C
Adaptador AC incluido	Yes
Cables incluidos	Thunderbolt
Controladores incluidos	Yes
Guía de inicio rápido	Yes
Color producto	Black
Lector de tarjetas integrado	Yes
Material de la carcasa	Aluminium
Tarjetas de memoria compatibles	CFexpress/MicroSDHC
Velocidad de transferencia de datos	40 Gbit/s
Alimentación de salida Thunderbolt 3 hasta	85 W
Alimentación de salida USB	Yes
Cantidad de DisplayPorts	1
Conector jack de entrada DC	Yes
Interfaz host	Thunderbolt 3
Puertos Thunderbolt	2
Puertos USB 3.2 Gen 1 (3.1 Gen 1) Type-A	1
Puertos USB 3.2 Gen 2 (3.1 Gen 2) Tipo-C	1
Puertos USB 3.2 Gen 2 (3.1 Gen 2) Type-A	3
Tecnología de conectividad	Wired
Corriente de salida	15 A
Frecuencia de entrada AC	50 - 60 Hz
Fuente de alimentación	180 W
Tipo de alimentación	AC
Voltaje de entrada AC	100 - 240 V
Voltaje de salida	12 V
Sistemas operativos Mac soportados	Mac OS X 10.13 High Sierra/Mac OS X 10.14 Mojave/Mac OS X 10.15 Catalina/Mac OS X 10.15.3 Catalina/Mac OS X 11.0 Big Sur/Mac OS X 12.0 Monterey
Sistemas operativos Windows soportados	Windows 10/Windows 11
Garantía	1 año
