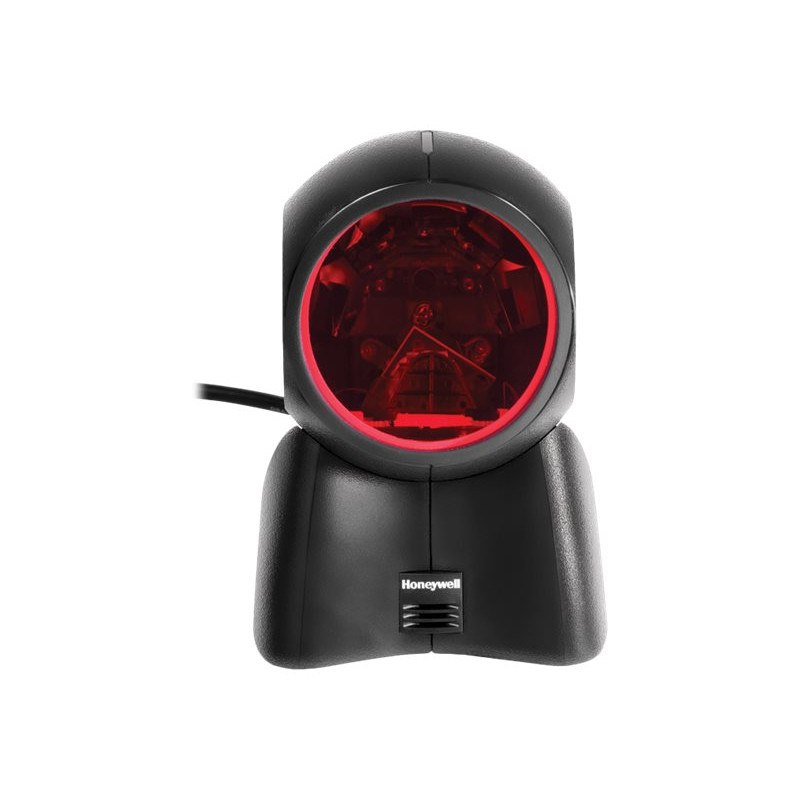

Orbit 7190g, USB-kit, 1D/2D - Ref. 7190G-2USBX-0

The Orbit™ 7190g scanner incorporates breakthrough hybrid technology that combines omnidirectional laser scanning and integrated area-imaging to provide a barcode reading platform optimized for highly efficient checkouts. Like other Orbit scanners, it delivers superior pass-through scanning of merchandise linear barcodes, while simultaneously helping retailers address the growing need for digital barcodes reading – without requiring an additional scanner.

Like other Orbit scanners – the best-selling hands-free scanners of all time – the Orbit 7190g scanner is an innovative, elegant and affordable solution for convenience retail applications where counter space is at a premium. The award-winning shape enables handheld scanning of large, bulky items. For added flexibility, the scanning head can be tilted within a 30° range to accommodate objects of various sizes and shapes.

The Orbit 7190g scanner seamlessly works for both merchandise scanning by the cashier, and digital barcodes scanning off smartphones by customers. With the dual-modes design, the scanner is automatically optimized for both applications while eliminating the customer annoyance of a laser and LED illumination.

The Orbit 7190g is a plug-and-play scanner, and installing it into existing checkout systems is easy. Multiple on-board interfaces make the Orbit 7190g scanner compatible with most POS systems, and automatic interface detection enables the scanner to configure itself to the appropriate interface upon connection – eliminating the cumbersome task of scanning programming barcodes. The Orbit 7190g scanner also simplifies integration by drawing power directly through USB, eliminating the need for an additional power supply and cabling.

FEATURES & BENEFITS
- The Orbit 7190g scanner integrates both a laser and an imager into a single presentation scanner – no need to buy a separate scanner for digital barcode reading, while maintaining superior merchandise barcode scanning.
- With dual-working modes, the scanner is optimized for both scanning digital codes off customer smartphones and scanning merchandise codes by the cashier at the register.
- A 20-line omnidirectional laser pattern maintains the proven 1D scanning performance of existing Orbit scanners. With leading Honeywell imaging technology, the scanner reads smartphone coupons and ID cards with ease.
- The award-winning shape enables handheld scanning of large, bulky items. The adjustable scan head even allows cashiers to tilt the scanner 30° for targeted scanning of larger products.
- Automatic interface detection enables the scanner to configure itself to the appropriate interface upon connection –  eliminating the tedious task of scanning programming barcodes.

Certificación	CE, RoHS
Color producto	Black
Conformidad RoHS	Yes
Indicadores LED	Status
Humedad relativa de funcionamiento (H-H)	5 - 95 %
Temperatura de almacenamiento (T-T)	-40 - 60 °C
Temperatura de funcionamiento (T-T)	0 - 40 °C
Cables incluidos	USB
Pantalla integrada	No
Interfaces estándar	Keyboard wedge/RS-232/RS-485/USB
Tecnología de conectividad	Wired
Consumo de energía	472 mA
Voltaje de entrada	5 V
Ángulo de lectura de inclinación	0 - 70 °
Ángulo de lectura pitch	0 - 60 °
Códigos de barras 2D (matriciales y apilados) compatibles	Data Matrix/PDF417/QR Code
Códigos de barras lineales (1D) compatibles	Code 39/GS1 DataBar Omnidirectional/U.P.C.
Distancia de funcionamiento	32,7 cm
Niveles de luz (luz solar directa)	4842 - 100000 lx
Tipo	Handheld bar code reader
Tipo de escáner	1D/2D
Tipo de sensor	Laser
Velocidad de lectura (máx.)	1120 lecturas/s
Certificados de sostenibilidad	RoHS
Certificados de conformidad	RoHS
Garantía	3 años
