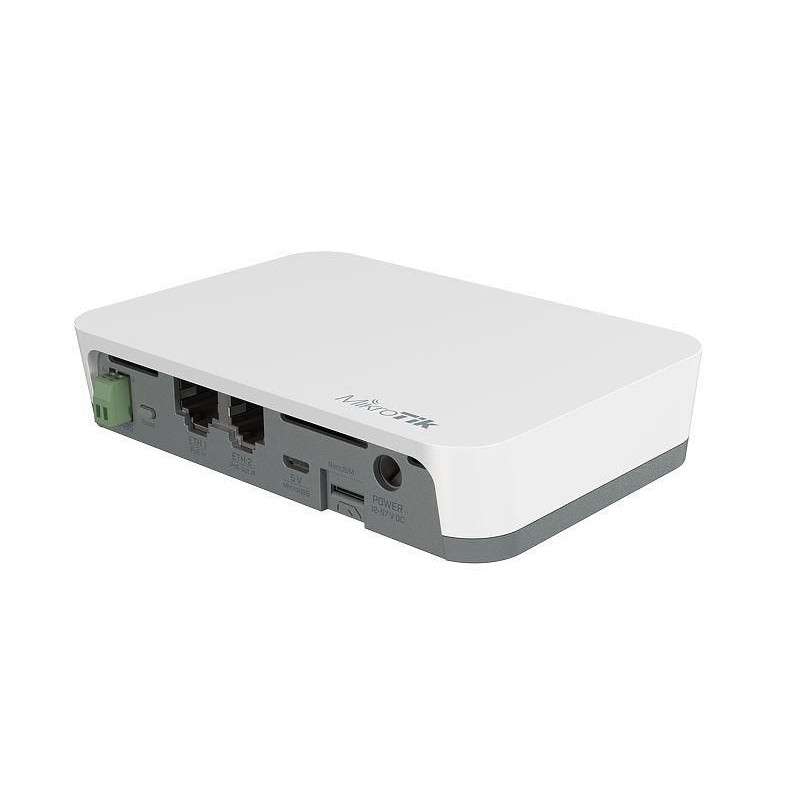

Mikrotik RB924I-2ND-BT5&BG77 pasarel y controlador 10, 100 Mbit/s
100,14 €
82,76 € sin IVA
Impuestos incluidos
Mikrotik RB924I-2ND-BT5&BG77 pasarel y controlador 10, 100 Mbit/s. Producto MikroTik.
Pago 100% seguro
Tarjeta (RedSys) y transferencia bancaria
Envío en 24/72 h
Envío 12,04 € (IVA inc.) · GRATIS a partir de 299 €
Devoluciones en 14 días
Devolución fácil y sin complicaciones
Factura de empresa
IVA desglosado y factura oficial en cada compra
The newest addition to the MikroTik IoT product family – KNOT – is a truly universal device with exceptional connectivity options and protocol support. It is an IoT Gateway that uses Narrow Band and CAT-M technology. Because of the low cost, low bandwidth cellular connection, it is supported by countless mobile operators around the globe.
KNOT can monitor onboard GPIOs, convert Modbus protocol to TCP, and even forward Bluetooth packets to TCP/IP network via HTTPS and MQTT.
You can use the KNOT as a TCP bridge from wired Modbus sensors to send readings to a Modbus server. Yes, the KNOT brings wireless connectivity to wired sensors, such as electricity meters and relays.
It could be used as a backup connection for the Ethernet or as a management channel for your network. NB/CAT-M monthly plan is much cheaper than LTE. Why spend extra money on bandwidth you don’t need? For example, you can manage a KNOT-powered vending machine with temperature and liquid sensors with only a few megabytes per day!
KNOT features so many protocol support and connectivity options:
2.4 GHz wireless, Bluetooth, 2x 100 Mbps Ethernet ports with PoE-in and PoE-out, Micro-USB. Maximum convenience at the lowest cost!
With the Bluetooth interface, you can use the KNOT for asset tracking and telemetry based on Bluetooth advertisement packets. KNOT supports any BLE tag that sends advertisement data. iBeacon, Eddystone or any other format.
It has powerful filters for forwarding only relevant packets and ignoring others.
KNOT is a great tool for most outdoor cabinet IoT applications as well. It comes with a DIN rail mount that allows easy integration with all kinds of setups: from agriculture and asset tracking to cold chain monitoring, industrial manufacturing, and so on.
Bring flexible low-cost connectivity to the most remote or tricky areas with the MikroTik KNOT!
KNOT can monitor onboard GPIOs, convert Modbus protocol to TCP, and even forward Bluetooth packets to TCP/IP network via HTTPS and MQTT.
You can use the KNOT as a TCP bridge from wired Modbus sensors to send readings to a Modbus server. Yes, the KNOT brings wireless connectivity to wired sensors, such as electricity meters and relays.
It could be used as a backup connection for the Ethernet or as a management channel for your network. NB/CAT-M monthly plan is much cheaper than LTE. Why spend extra money on bandwidth you don’t need? For example, you can manage a KNOT-powered vending machine with temperature and liquid sensors with only a few megabytes per day!
KNOT features so many protocol support and connectivity options:
2.4 GHz wireless, Bluetooth, 2x 100 Mbps Ethernet ports with PoE-in and PoE-out, Micro-USB. Maximum convenience at the lowest cost!
With the Bluetooth interface, you can use the KNOT for asset tracking and telemetry based on Bluetooth advertisement packets. KNOT supports any BLE tag that sends advertisement data. iBeacon, Eddystone or any other format.
It has powerful filters for forwarding only relevant packets and ignoring others.
KNOT is a great tool for most outdoor cabinet IoT applications as well. It comes with a DIN rail mount that allows easy integration with all kinds of setups: from agriculture and asset tracking to cold chain monitoring, industrial manufacturing, and so on.
Bring flexible low-cost connectivity to the most remote or tricky areas with the MikroTik KNOT!
| Nivel de ganancia de antena (máx.) | 1,5 dBi |
| Certificación | CE, FCC, IC, EAC, ROHS |
| Código de protección (IP) | IP20 |
| Color producto | White |
| Tipo de montaje | DIN-rail |
| Banda Wi-Fi | Single-band (2.4 GHz) |
| Bluetooth | Yes |
| Estándar Wi-Fi superior | Wi-Fi 4 (802.11n) |
| Estándares de red | IEEE 802.11a/IEEE 802.11b/IEEE 802.11g/IEEE 802.11n/IEEE 802.3af/IEEE 802.3at |
| Estándares Wi-Fi | 802.11b/802.11g/Wi-Fi 4 (802.11n) |
| Tasa de reenvío | 300 Mpps |
| Tecnología de cableado | 10/100Base-T(X) |
| Velocidad de transferencia de datos WLAN (máx.) | 300 Mbit/s |
| Velocidades datos Ethernet LAN | 10/100 Mbit/s |
| Velocidades de transferencia de datos WLAN soportadas | 300 Mbit/s |
| Versión Bluetooth | 5.2 |
| Wi-Fi | Yes |
| Temperatura de funcionamiento (T-T) | -40 - 70 °C |
| Memoria flash | 16 MB |
| Memoria interna | 64 MB |
| Modelo procesador | QCA9531 |
| Puertos LAN Ethernet (RJ-45) | 2 |
| Puertos Micro-USB 2.0 | 1 |
| Ranura para tarjeta SIM | Yes |
| Tipo de interfaz serie | RS-485 |
| Tipo de tarjeta SIM | NanoSIM |
| Alimentación PoE | Yes |
| Consumo de energía (típico) | 18 W |
| Sistemas operativos compatibles | RouterOS |
| Conexión inalámbrica | Yes |
| Frecuencia procesador | 650 MHz |
| Memoria y procesador | QCA9531 |
| Número de procesadores instalados | 1 |
| Procesador integrado | Yes |
| Garantía | 15 Month(s) |
MP-849767
36 unidades
Ficha técnica
- Estándares de red
- IEEE 802.11a/IEEE 802.11b/IEEE 802.11g/IEEE 802.11n/IEEE 802.3af/IEEE 802.3at
- Sistemas operativos compatibles
- RouterOS
- Tecnología de cableado
- 10/100Base-T(X)
- Certificación
- CE, FCC, IC, EAC, ROHS
- Bluetooth
- Yes
- Banda Wi-Fi
- Single-band (2.4 GHz)
- Tasa de reenvío
- 300 Mpps
- Memoria interna
- 64 MB
- Tipo de montaje
- DIN-rail
- Memoria Flash
- 16 MB
- Ranura para tarjeta SIM
- Yes
- Tipo de tarjeta SIM
- NanoSIM
- Número de procesadores instalados
- 1
- Garantía
- 15 Month(s)
- Color producto
- White
- Temperatura de funcionamiento (T-T)
- -40 - 70 °C
- Velocidades datos Ethernet LAN
- 10/100 Mbit/s
- Wi-Fi
- Yes
- Puertos LAN Ethernet (RJ-45)
- 2
- Alimentación PoE
- Yes
- Consumo de energía (típico)
- 18 W
- Modelo procesador
- QCA9531
- Memoria y procesador
- QCA9531
- Frecuencia procesador
- 650 MHz
- Procesador integrado
- Yes
- Estándar Wi-Fi superior
- Wi-Fi 4 (802.11n)
- Código de protección (IP)
- IP20
- Estándares Wi-Fi
- 802.11b/802.11g/Wi-Fi 4 (802.11n)
- Versión Bluetooth
- 5.2
- Tipo de interfaz serie
- RS-485
- Nivel de ganancia de antena (máx.)
- 1,5 dBi
- Velocidad de transferencia de datos WLAN (máx.)
- 300 Mbit/s
- Conexión inalámbrica
- Yes
- Velocidades de transferencia de datos WLAN soportadas
- 300 Mbit/s
- Puertos Micro-USB 2.0
- 1
Referencias específicas
- ean13
- 4752224007131
- MPN
- RB924I-2ND-BT5&BG77
