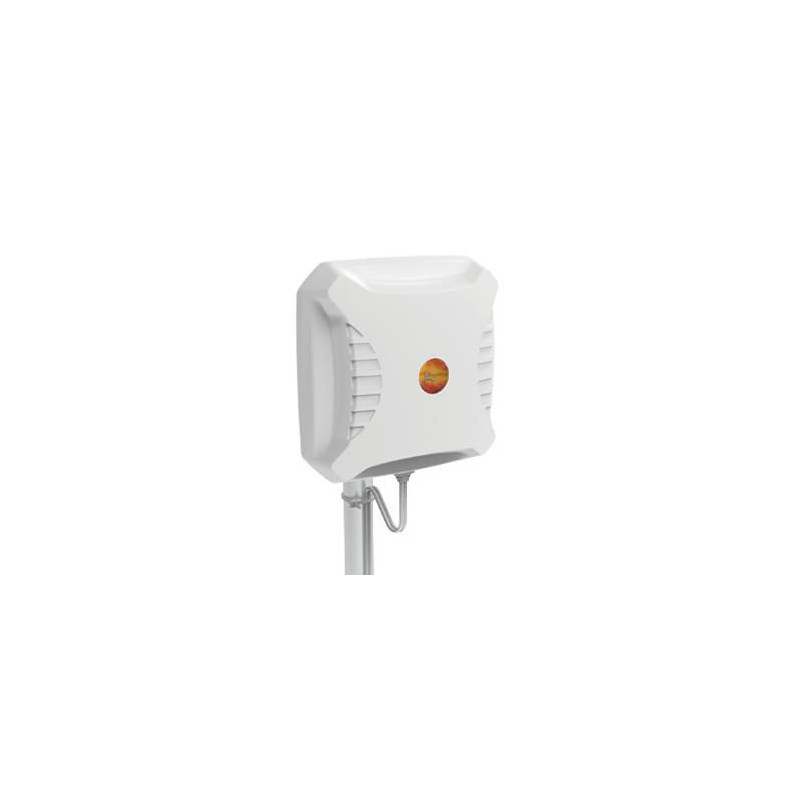

network antenna Directional - Ref. A-XPOL-0002-V3-01

The XPOL-2-5G is Poynting’s third generation “V3” of this very popular Cross Polarised (XPOL), cellular band, 2×2 MIMO antenna. The antenna enclosure effectively looks the same as the second generation “V2” but has been completely redesigned on the inside. We have used advanced metamaterial technology, making use of Artificial Magnetic Conductors (AMC) and new registered/patent pending radiator configuration, which is proving to yield exceptional improvements in bandwidth and gain. Radiation patterns of this antenna are exceptionally well controlled, further adding to the performance of the antenna.

The XPOL-2-5G antenna includes the newer 3400 – 3800 MHz bands, which were not previously covered by our V2 and is suitable for 2G, 3G, 4G & 5G. This antenna performs exceptionally well in the following frequency bands: 698 – 960MHz, 1700 – 2170MHz, 2300 – 2700MHz & 3400 – 3800MHz. In addition to the new bands, the gain in the 1700MHz and 2.7GHz is around 3dB higher than the “V2” over the same frequency bands! Our “V2” antenna already outperformed most competitors over these bands, so this substantial improvement in gain shows the benefits of the new advanced materials and novel radiator design.

So, if it was a car, we installed an entirely new technology engine producing twice the power under the bonnet – it may look the same, but just wait until you turn the ignition on!

Código de protección (IP)	IP65
Color producto	White
Género del conector	Male
Longitud del cable	5 m
Protección	Fireproof
Tipo de antena	Directional antenna
Tipo de cable	Twin HDF-195
Tipo de conector de antena	SMA
Uso	Indoor & outdoor
Temperatura de funcionamiento (T-T)	-40 - 80 °C
Cantidad por pack	1 pieza(s)
Banda de frecuencia	0.698-0.690; 1.710-2.7; 3.4 - 3.8 GHz
Nivel de ganancia de antena (máx.)	11 dBi
Garantía	1 año
