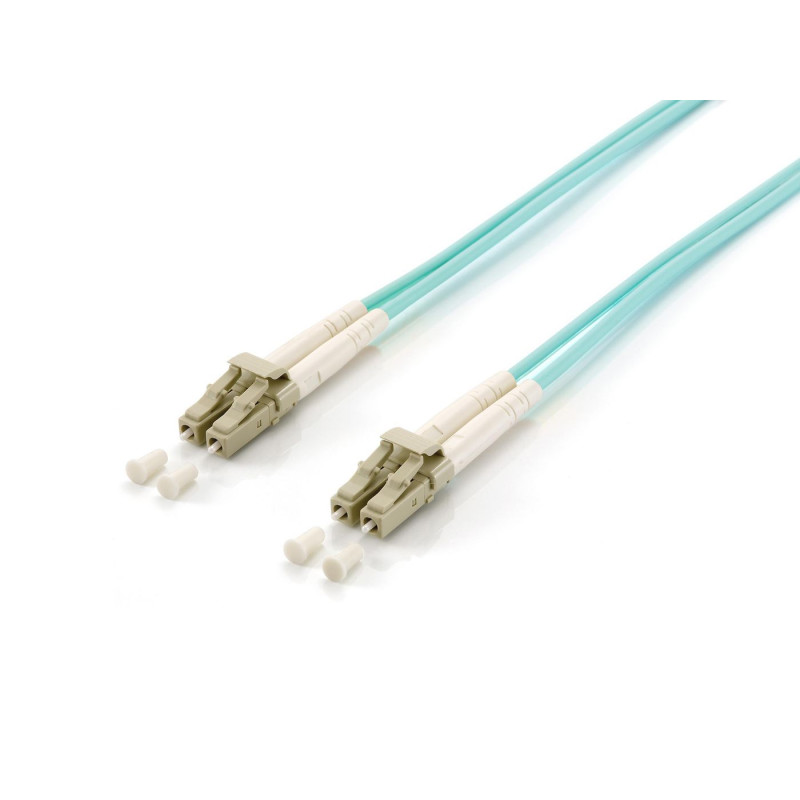

Equip Lc/Lc Fiber Optic Patch - Ref. 255410

The LC to LC fiber optic patch cable is a duplex multi-mode OM3 fiber cable designed for reliable, high-speed data transmission in enterprise and data center environments.

Equipped with LC connectors on both ends, this cable is suitable for network switches, servers, and optical transceivers in structured cabling systems that require stable short-distance optical connections.

Constructed with a 50/125µm OM3 multi-mode fiber core and ceramic ferrule connectors, the cable delivers low insertion loss and consistent signal quality. The LSZH jacket enhances safety for indoor installations, while supporting 10G Ethernet transmission distances of up to 300 meters.

Certificados de conformidad	RoHS
Color producto	Aqua colour
Conector 1	LC
Conector 1 género	Male
Conector 2	LC
Conector 2 género	Male
Diámetro del núcleo	50 µm
Diámetro del revestimiento	125 µm
Estructura modo fibra	Multi-mode
Full duplex	Yes
Longitud del cable	1,5 m
Material cubierta	Low smoke zero halogen (LSZH)
Material del conector	Ceramic
Tipo de fibra óptica	OM3
Velocidad de transferencia de datos	10 Gbit/s
Altura de la caja maestra (exterior)	40 cm
Ancho de la caja maestra (exterior)	40 cm
Código aduanero del producto (TARIC)	8544700010
Longitud de la caja maestra (externa)	30 cm
Peso bruto de la caja maestra (externa)	9520 g
Productos por caja maestra (exterior)	400 pieza(s)
Cantidad por pack	1 pieza(s)
Garantía	1 año
Diámetro del cable	2 mm
