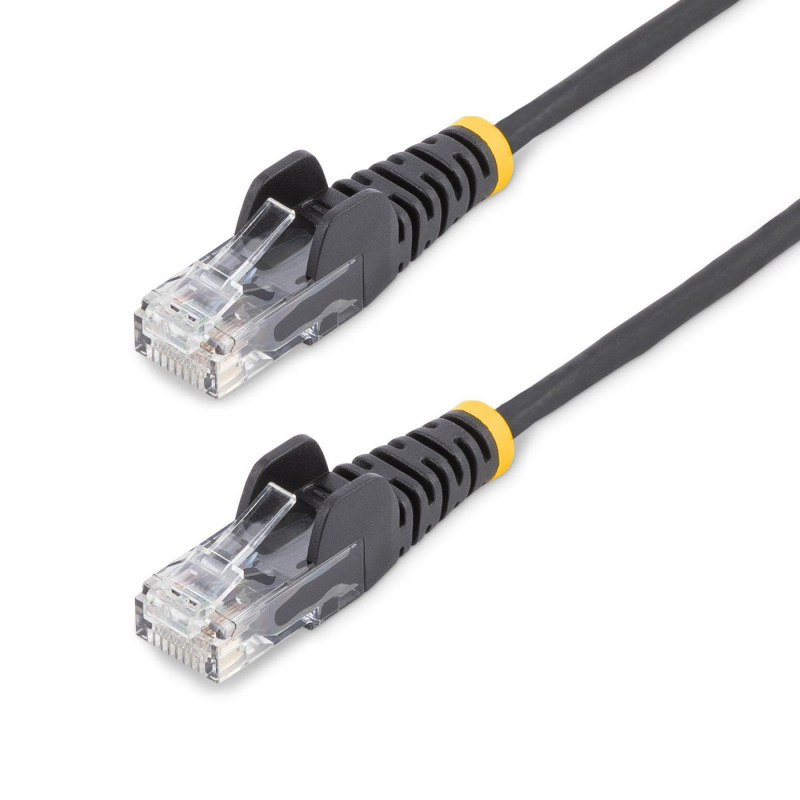

StarTech.com 1 Ft. Cat6 Ethernet Cable - - Ref. N6PAT1BKS

Slim CAT6 Patch Cable | 28 AWG Copper Wire | LSZH

This slim CAT6 cable meets all Category 6 patch cable specifications to deliver a reliable Gigabit and Power over Ethernet (PoE) network connection in high-density network installations.

Improved Airflow

The Slim Cat6 Patch Cord is 36% thinner than standard Cat6 Ethernet cables, enabling greater airflow and heat dissipation in confined spaces. The Slim Cat6 Ethernet cable is also more flexible, for easier cable routing in crowded network racks and patch panels.

This cable features snagless connectors that protect the RJ45 clips during installation, reducing snags or breakage when routing through narrow gaps or in between devices.

Durable Construction

The Slim Cat6 Cable features 50-micron gold RJ45 contacts that ensure a precise fit to minimize wear and signal loss. The 4-pair Unshielded Twisted Pair (UTP) construction utilizes 28AWG Pure Bare Copper Wire for improved conductivity and low resistance. The flexible Low Smoke Zero Halogen (LSZH) flame-retardant jacket emits low smoke and toxic fumes when exposed to extreme heat or in the event of a fire. This enables safer installations in poorly-ventilated areas including some industrial settings, self-contained environments such as trains and aircraft, as well as residential settings where compliance with building codes must be considered.

Tested for Reliability

Each cable is individually tested using a Fluke® DSX2-8000 CableAnalyzer™ to meet ANSI/TIA-568.2-D Category 6 specifications, ensuring consistent signal integrity with minimal Near-End Crosstalk (NEXT) and Retun Loss (RL). Reliably deliver up to 100W of PoE++ to power a remote networking devices, including PoE switches and boardroom cameras. This Slim Cat6 Patch Cable complies with IEEE 802.3bt Type 4 PoE++ specifications.

Certificación	CE, REACH
Certificados de conformidad	RoHS
Arranque de cable sin enganche	Yes
Blindaje de cable	U/UTP (UTP)
Cable estándar	Cat6
Color producto	Black
Conector 1	RJ-45
Conector 1 género	Male
Conector 2	RJ-45
Conector 2 género	Male
Frecuencia	250 MHz
Longitud del cable	0,3 m
Material cubierta	Low smoke zero halogen (LSZH)
Plug and play	Yes
Revestimiento de contactos del conector	Gold
Tamaño de cable AWG	28
Tecnología de cableado	10/100/1000Base-T(X)
Tipo de conductor	Stranded
Tipo de interfaz Ethernet	Gigabit Ethernet
Velocidad de transferencia de datos	1000 Mbit/s
Altura de la caja maestra (exterior)	25,4 cm
Ancho de la caja maestra (exterior)	42,4 cm
Longitud de la caja maestra (externa)	43,4 cm
Productos por caja maestra (exterior)	400 pieza(s)
Cantidad por pack	1 pieza(s)
No contiene	Halogen
Garantía	1 año
Diámetro exterior	3,7 mm
