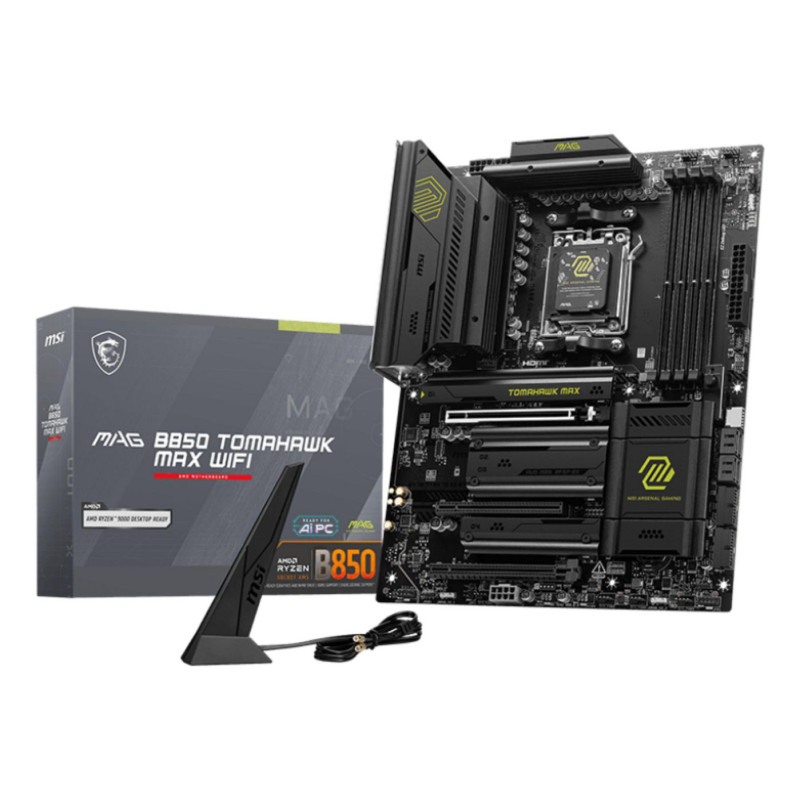

MSI Motherboard Amd B850 Socket - Ref. MAG B850 TOMAHAWK MAX WIFI

MSI B850 Tomahawk MAX wifi
MAG B850 TOMAHAWK MAX WIFI is designed for gamers with a stable, durable and DIY friendly foundation for their PC builds. Coming up with true Wi-Fi 7 solution, 5G LAN, USB 20Gbps, PCIe 5.0 solutions, Supplemental PCIe Power, and exclusive EZ DIY features, it's ready for the battlefield of AMD Ryzen™ 9000 series processors.

MSI's mainstream MAG series epitomizes stability and durability and is built to withstand the most intense gaming sessions. The entire lineup features robust construction with metallic-like hardness and excellent heat dissipation, ensuring stability for all critical gaming components.

MSI motherboards are designed with advanced hardware and technology, well-supporting the demanding computing usage of gaming and AI. Moreover, we also introduce AI to MSI Center and BIOS, making everything more effortless than before.

14+2+1 Duet Rail Power System
Unleash and sustain maximum performance with a flagship VRM design built with a total of 14+2+1 digital power phases. Combining dual power connectors and 80A Smart Power Stage, MAG B850 TOMAHAWK MAX WIFI is ready for the challenge of high-end processors.

OPTIMIZED PCB SOLUTION
The PCB design has been optimized for higher bandwidth and faster transfer speeds, which is also beneficial for reliable circuit transmission.

Extended Heatsink
Extended Heatsink enlarges the surface of heat dissipation and maintain the performance at heavy loads.

M.2 Shield Frozr
Strengthened M.2 thermal solution helps keep M.2 SSD safe and ensures incredible performance.

Heavy Plated VRM Heatsink
The VRM heatsink covers the upper MOS and helps dissipate the heat.

7W/mK Thermal Pad & Additional Choke Pad
High-quality 7W/mK MOSFET thermal pads and additional choke thermal pads ensure stable performance when all cores are runnging at high speed.

Enlarged Chipset Heatsink
The enlarged heatsink is designed to reduce dust and noise and capable of maintaining high efficiency of heat dissipation.

HIGH-BANDWIDTH AND LOW-LATENCY NETWORK
MSI's premium network solution provides incredible data transfer speed for demanding users.

1st M.2 highest PCI Express generation	5.0
1st M.2 largest key size	22110
2nd M.2 highest PCI Express generation	5.0
2nd M.2 largest key size	2280
3rd M.2 highest PCI Express generation	4.0
3rd M.2 largest key size	2280
4th M.2 highest PCI Express generation	4.0
4th M.2 largest key size	2280
Número de ranuras M.2 (M)	4
Ranuras PCI Express x16 (Gen 3.x)	1
Ranuras PCI Express x16 (Gen 4.x)	1
Ranuras PCI Express x16 (Gen 5.x)	1
Canales de salida de audio	7.1 canales
Chip de audio	Realtek ALC4080
Chipset de placa base	AMD B850
Color producto	White
Componente para	PC
Factor forma placa base	ATX
Familia de chipsets de placa base	AMD
Sistemas operativos Windows soportados	Windows 11 x64
Tarjeta gráfica integrada	No
Cabezal pin LED RGB	Yes
Conector del ventilador CPU	Yes
Conectores USB 2.0	4
Conectores USB 3.2 Gen 1 (3.1 Gen 1)	4
Conectores USB 3.2 Gen 2 (3.1 Gen 2)	1
Number of CPU fan connectors	6
Number of RGB LED pin headers	3
Number of water pump connectors	1
Número de conectores SATA	0
Número de conectores SATA II	0
Número de conectores SATA III	4
Número total de conectores SATA	4
Canales de memoria	Dual-channel
ECC сompatibility	Non-ECC
Máxima memoria interna	256 GB
Número de ranuras de memoria	4
Tipo de ranuras de memoria	DIMM
Tipos de memoria admitidos	DDR5-SDRAM
Velocidad de reloj de memoria admitida (máx.)	8400 MHz
Velocidades de reloj de memoria compatibles	4800/5600/8400 MHz
Bluetooth	Yes
Estándar Wi-Fi superior	Wi-Fi 7 (802.11be)
Estándares Wi-Fi	802.11a/802.11b/802.11g/Wi-Fi 4 (802.11n)/Wi-Fi 5 (802.11ac)/Wi-Fi 6 (802.11ax)/Wi-Fi 6E (802.11ax)/Wi-Fi 7 (802.11be)
Ethernet LAN	Yes
Tipo de interfaz Ethernet	5 Gigabit Ethernet
Versión Bluetooth	5.4
Wi-Fi	Yes
Puertos mSATA	0
Enchufe procesador	Socket AM5
Enchufes de procesador compatibles	Socket AM5
Fabricante procesador	AMD
Máxima memoria interna soportada por el procesador	256 GB
Series procesador compatibles	AMD Ryzen 7000 Series/AMD Ryzen 8000 Series/AMD Ryzen 9000 Series
Puertos DVI-D	0
Puertos HDMI	1
Puertos LAN Ethernet (RJ-45)	1
Puertos USB 2.0	4
Puertos USB 3.2 Gen 1 (3.1 Gen 1) Type-A	1
Puertos USB 3.2 Gen 1 (3.1 Gen 1) Type-C	0
Puertos USB 3.2 Gen 2 (3.1 Gen 2) Tipo-C	3
Puertos USB 3.2 Gen 2 (3.1 Gen 2) Type-A	2
Puertos VGA (D-Sub)	0
Versión HDMI	2.1
Interfaces unidades de almacenamiento soportadas	M.2/Micro SATA III
Niveles RAID	0/1/10
Número de HDDs soportados	4
Número de unidades de almacenamiento soportadas	8
RAID soportado	Yes
Tipos de unidades de almacenamiento soportadas	HDD & SSD
Garantía	1 año
