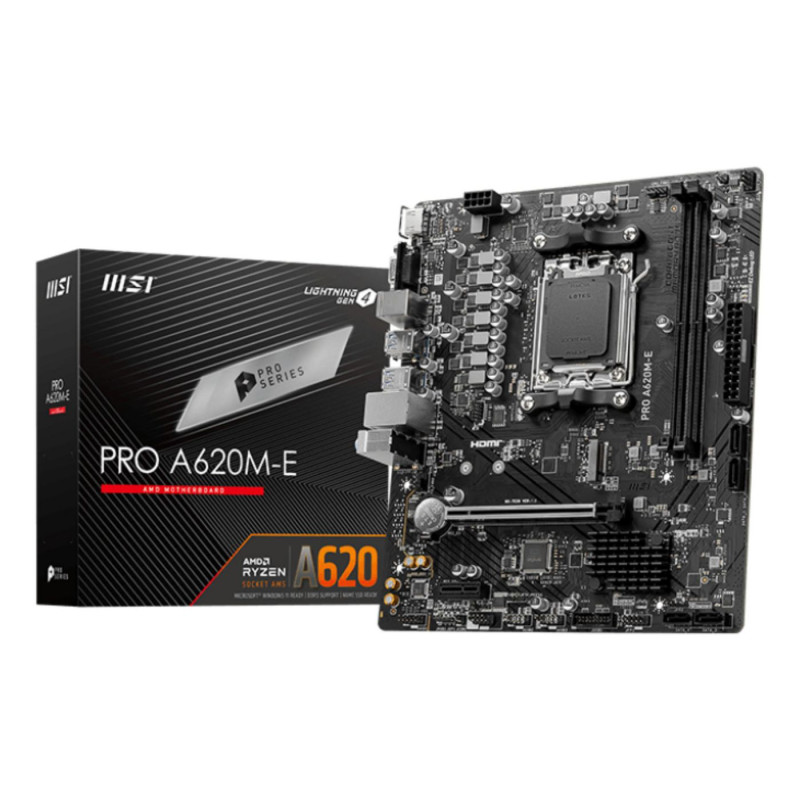

Pro A620M-E Motherboard Amd
208,50 €
172,31 € sin IVA
Impuestos incluidos
Supports AMD Ryzen 7000 , AM5, 2x DDR5 96GB Max, 1DPC 1R 6800MHz Max, 1DPC 2R 6000MHz Max, Dual-Channel, non-ECC, un-buffered, AMD EXPO, 1x HDMI 2.1, 4k 60Hz, 1x VGA, 2048x1536 50Hz, 1x PCI-E x16 4.0, 1x PCI-E x1 3.0, 1x M.2, 4x SATA 6G, 6x USB 2.0, 6x USB 3.2 Gen.1 Type-A, Realtek ALC897, 7.1-Channel, High Definition Audio, 1x ATX_PWR, 1xCPU_PWR, 1x CPU Fan, 2x System Fan, 2x JFP, 1x JCI, 1x JAUD, 1x JCOM, 1x RGB LED, 1x TPM 2.0, 4x USB 2.0, 2x USB 3.2 Gen1 Type A,4x EZ Debug LED, mATX 211mmx243.84mm
Pago 100% seguro
Tarjeta (RedSys) y transferencia bancaria
Envío en 24/72 h
Envío 9,95 € · GRATIS a partir de 299 €
Devoluciones en 14 días
Devolución fácil y sin complicaciones
Factura de empresa
IVA desglosado y factura oficial en cada compra
BUSINESS ELEGANCE
The PRO Series is tailored to professionals from all walks of life. The lineup features impressive performance and high quality, while aiming to provide users incredible experience. Users who care about productivity and efficiency can definitely count on the MSI PRO Series to assist you with multitasking and increasing efficiency.
Chipset Heatsink
The chipset heatsink is designed to reduce dust and noise and also capable of maintaining high efficiency of PCH.
CORE BOOST
Core Boost technology combines MSI's premium layout and optimized power design which allows for faster and undistorted current delivery to the CPU at pin-point precision. Not only supporting multi-core CPU, also creating the perfect conditions for your CPU overclocking.
MSI DRIVER UTILITY INSTALLER
Once connected to the internet, MSI Driver Utility Installer will detect and present suitable drivers and utilities automatically, you can download and install with just a few clicks.
Windows 11 certified
With MSI you benefit from great compatibility and a worry-free user experience when using Microsoft Windows 11. With a true dedication to performance, our R&D team has made sure everything works as intended when using the latest version of Microsoft Windows on any MSI product.
XL Clip
The enlarged PCI-E clip helps you swap or remove your devices easier. Keep the PCI-E slot stronger and safer.
EZ debug LED
Onboard LEDs will indicate the source of the problem so you know exactly where to look to get up and running again.
Keep Out Zone
MSI motherboards circuitry ensure the case standoff keep out zones are pure and clean. Moreover, the protective paint is printed around each screw hole to prevent parts from being scratched or damaged to the motherboard.
Doube ESD Protection
Double ESD protection doubles up the grounding layer around the mounting holes, preventing static discharge surges from damaging the motherboard.
LIGHTNING GEN 4 PCI-E
MSI lightning Gen 4 PCI-E represents the bandwidth of a x16 interface to 64GB/s that has doubled compared to its previous generation.
LATEST DDR5 MEMORY WITH SMT SLOT
A huge step of DDR performance enhancement with the latest DDR5 memory. Combines with dedicated SMT welding process and MSI Memory Boost technology, MSI PRO Series motherboards are ready to deliver the world class memory performance.
The advanced SMT(Surface Mount Technology) welding process reduces the defect rate of slot solder joints, electromagnetism, and interference. Combining with exclusive Memory Boost technology allows MSI motherboards to deliver the clean and pure high-frequency DDR5 signal.
MSI CENTER
MSI brand new MSI Center unifies a suite of MSI software utilities into a single centralized application. Take control of advanced motherboards features and unleash endless possibilities.
Mystic Light
Create your own colorful masterpiece with ease. Splash any color you want with just a few clicks!
True Color
Optimized monitor's brightness and color in several modes for different situation, you can also customize by yourself.
User Scenario
One click for setting your computer, even customize own profile as your preference.
Hardware Monitoring
Get immediate access to your critical hardware information in real-time.
Profile Settings
Tune select motherboard settings in the OC Setting menu, where options to boost core performance and optimize system cooling are presented in an intuitive interface.
Fan Center
Assume complete control of your fans with Fan Center. Set up to four CPU temperature targets and the motherboard will adjust fan speeds automatically.
System Diagnosis
Restore and backup your MSI storage devices in one click to provide stable system usage, you can even monitor the storage status to prevent system crash or data missing.
EXCLUSIVE UI OF AIDA64 EXTREME
MSI motherboards provide 60 days free trial of AIDA64 Extreme - MSI edition. AIDA64 Extreme is an almighty application for system information, diagnostics and benchmarks. With the application, you can monitor the detailed hardware and software information on PC and save it to file in multiple formats such as CSV and HTML.
CLICK BIOS 5
Get more from a loaded BIOS designed for ease of use. Fine-tune the motherboard for gaming performance, efficiency, or overclocking world records!
EXPO(EXTENDED PROFILES FOR OVERCLOCKING)
Choose from a preset EXPO profile and automatically overclock compatible DDR memory.
M-FLASH
Conveniently flash or upgrade the BIOS in a few minutes from the CMOS Setup Utility.
HARDWARE MONITOR
Get immediate access to your critical hardware information in real-time including temperature, memory capacity, clock speed, and voltage.
MEMORY TRY IT
Get extreme speed out of your system memory and get more performance.
SEARCH & FAVORITES
A permanent search & favorite option in the top right corner moves you through the BIOS menus quickly.
SYSTEM SAFETY
All MSI PRO series motherboards have SECURITY function in BIOS to protect every private files for no matter business or daily use.
SECURE BOOT
Secure boot is a security standard to make sure that a device boots using only software that is trusted. When the PC starts, the firmware checks the signature of each piece of boot software, including UEFI firmware drivers, EFI applications, and the operating system. The PC boots while the signatures are valid.
RESIZABLE BAR
Resizable BAR (Re-Size BAR) is an advanced PCI Express feature that enables the CPU to access the entire GPU frame buffer at once and improve performance.
EXTEND YOUR RGB EXPERIENCE WITH EASE
Add more color if you want! Mystic Light Extension pin header provides an intuitive way to control additional RGB strips and other RGB peripherals added to a system, without needing a separate RGB controller.
RGB
Supports 12V RGB Devices
Ambient Link
Synchronize lighting theme with compatible ligthting devices
PRO A620M-E
Supports AMD Ryzen™ 7000 Series Desktop Processors
Supports DDR5 Memory, Dual Channel DDR5 6000+MHz (OC)
Core Boost : With premium layout and digital power design to support more cores and provide better performance
Memory Boost: Advanced technology to deliver pure data signals for the best performance, stability and compatibility
Lightning Fast Game experience: PCIe 4.0 slot, Lightning Gen 4 x4 M.2
AUDIO BOOST: Reward your ears with studio grade sound quality for the most immersive gaming experience
Steel Armor: Protecting VGA cards against bending and EMI for better performance, stability and strength
The PRO Series is tailored to professionals from all walks of life. The lineup features impressive performance and high quality, while aiming to provide users incredible experience. Users who care about productivity and efficiency can definitely count on the MSI PRO Series to assist you with multitasking and increasing efficiency.
Chipset Heatsink
The chipset heatsink is designed to reduce dust and noise and also capable of maintaining high efficiency of PCH.
CORE BOOST
Core Boost technology combines MSI's premium layout and optimized power design which allows for faster and undistorted current delivery to the CPU at pin-point precision. Not only supporting multi-core CPU, also creating the perfect conditions for your CPU overclocking.
MSI DRIVER UTILITY INSTALLER
Once connected to the internet, MSI Driver Utility Installer will detect and present suitable drivers and utilities automatically, you can download and install with just a few clicks.
Windows 11 certified
With MSI you benefit from great compatibility and a worry-free user experience when using Microsoft Windows 11. With a true dedication to performance, our R&D team has made sure everything works as intended when using the latest version of Microsoft Windows on any MSI product.
XL Clip
The enlarged PCI-E clip helps you swap or remove your devices easier. Keep the PCI-E slot stronger and safer.
EZ debug LED
Onboard LEDs will indicate the source of the problem so you know exactly where to look to get up and running again.
Keep Out Zone
MSI motherboards circuitry ensure the case standoff keep out zones are pure and clean. Moreover, the protective paint is printed around each screw hole to prevent parts from being scratched or damaged to the motherboard.
Doube ESD Protection
Double ESD protection doubles up the grounding layer around the mounting holes, preventing static discharge surges from damaging the motherboard.
LIGHTNING GEN 4 PCI-E
MSI lightning Gen 4 PCI-E represents the bandwidth of a x16 interface to 64GB/s that has doubled compared to its previous generation.
LATEST DDR5 MEMORY WITH SMT SLOT
A huge step of DDR performance enhancement with the latest DDR5 memory. Combines with dedicated SMT welding process and MSI Memory Boost technology, MSI PRO Series motherboards are ready to deliver the world class memory performance.
The advanced SMT(Surface Mount Technology) welding process reduces the defect rate of slot solder joints, electromagnetism, and interference. Combining with exclusive Memory Boost technology allows MSI motherboards to deliver the clean and pure high-frequency DDR5 signal.
MSI CENTER
MSI brand new MSI Center unifies a suite of MSI software utilities into a single centralized application. Take control of advanced motherboards features and unleash endless possibilities.
Mystic Light
Create your own colorful masterpiece with ease. Splash any color you want with just a few clicks!
True Color
Optimized monitor's brightness and color in several modes for different situation, you can also customize by yourself.
User Scenario
One click for setting your computer, even customize own profile as your preference.
Hardware Monitoring
Get immediate access to your critical hardware information in real-time.
Profile Settings
Tune select motherboard settings in the OC Setting menu, where options to boost core performance and optimize system cooling are presented in an intuitive interface.
Fan Center
Assume complete control of your fans with Fan Center. Set up to four CPU temperature targets and the motherboard will adjust fan speeds automatically.
System Diagnosis
Restore and backup your MSI storage devices in one click to provide stable system usage, you can even monitor the storage status to prevent system crash or data missing.
EXCLUSIVE UI OF AIDA64 EXTREME
MSI motherboards provide 60 days free trial of AIDA64 Extreme - MSI edition. AIDA64 Extreme is an almighty application for system information, diagnostics and benchmarks. With the application, you can monitor the detailed hardware and software information on PC and save it to file in multiple formats such as CSV and HTML.
CLICK BIOS 5
Get more from a loaded BIOS designed for ease of use. Fine-tune the motherboard for gaming performance, efficiency, or overclocking world records!
EXPO(EXTENDED PROFILES FOR OVERCLOCKING)
Choose from a preset EXPO profile and automatically overclock compatible DDR memory.
M-FLASH
Conveniently flash or upgrade the BIOS in a few minutes from the CMOS Setup Utility.
HARDWARE MONITOR
Get immediate access to your critical hardware information in real-time including temperature, memory capacity, clock speed, and voltage.
MEMORY TRY IT
Get extreme speed out of your system memory and get more performance.
SEARCH & FAVORITES
A permanent search & favorite option in the top right corner moves you through the BIOS menus quickly.
SYSTEM SAFETY
All MSI PRO series motherboards have SECURITY function in BIOS to protect every private files for no matter business or daily use.
SECURE BOOT
Secure boot is a security standard to make sure that a device boots using only software that is trusted. When the PC starts, the firmware checks the signature of each piece of boot software, including UEFI firmware drivers, EFI applications, and the operating system. The PC boots while the signatures are valid.
RESIZABLE BAR
Resizable BAR (Re-Size BAR) is an advanced PCI Express feature that enables the CPU to access the entire GPU frame buffer at once and improve performance.
EXTEND YOUR RGB EXPERIENCE WITH EASE
Add more color if you want! Mystic Light Extension pin header provides an intuitive way to control additional RGB strips and other RGB peripherals added to a system, without needing a separate RGB controller.
RGB
Supports 12V RGB Devices
Ambient Link
Synchronize lighting theme with compatible ligthting devices
PRO A620M-E
Supports AMD Ryzen™ 7000 Series Desktop Processors
Supports DDR5 Memory, Dual Channel DDR5 6000+MHz (OC)
Core Boost : With premium layout and digital power design to support more cores and provide better performance
Memory Boost: Advanced technology to deliver pure data signals for the best performance, stability and compatibility
Lightning Fast Game experience: PCIe 4.0 slot, Lightning Gen 4 x4 M.2
AUDIO BOOST: Reward your ears with studio grade sound quality for the most immersive gaming experience
Steel Armor: Protecting VGA cards against bending and EMI for better performance, stability and strength
| Número de ranuras M.2 (M) | 1 |
| Ranuras PCI Express x1 | 1 |
| Ranuras PCI Express x1 (Gen 3.x) | 1 |
| Ranuras PCI Express x16 | 1 |
| Ranuras PCI Express x16 (Gen 4.x) | 1 |
| Canales de salida de audio | 7.1 canales |
| Chip de audio | Realtek ALC897 |
| Chipset de placa base | AMD A620 |
| Color producto | Black |
| Componente para | PC |
| Factor forma placa base | micro ATX |
| Familia de chipsets de placa base | AMD |
| Tipo de alimentación | ATX |
| Tipo de refrigeración | Active |
| Resolución máxima | 3840 x 2160 Pixeles |
| Soporte de gráficos discretos | Yes |
| Tarjeta gráfica integrada | No |
| Cabezal pin LED RGB | Yes |
| Conector alimentación ATX (24 pines) | Yes |
| Conector de intrusión chasis | Yes |
| Conector del ventilador CPU | Yes |
| Conector del ventilador de alimentación | Yes |
| Conector TPM | Yes |
| Conectores USB 2.0 | 6 |
| Conectores USB 3.2 Gen 1 (3.1 Gen 1) | 6 |
| Conectores USB 3.2 Gen 2 (3.1 Gen 2) | 0 |
| Número de conectores COM | 1 |
| Número de conectores del ventilador del chasis | 1 |
| Número de conectores SATA | 0 |
| Número de conectores SATA II | 0 |
| Número de conectores SATA III | 4 |
| Número total de conectores SATA | 4 |
| Canales de memoria | Dual-channel |
| ECC сompatibility | Non-ECC |
| Máxima memoria interna | 96 GB |
| Número de ranuras de memoria | 2 |
| Tipo de ranuras de memoria | DIMM |
| Tipos de memoria admitidos | DDR5-SDRAM |
| Velocidades de reloj de memoria compatibles | 6000 MHz |
| Controlador LAN | Realtek RTL8111H |
| Ethernet LAN | Yes |
| Tipo de interfaz Ethernet | Gigabit Ethernet |
| Wi-Fi | No |
| Puertos mSATA | 0 |
| Cables incluidos | SATA |
| Enchufe procesador | Socket AM5 |
| Enchufes de procesador compatibles | Socket AM5 |
| Fabricante procesador | AMD |
| Máximo número de procesadores SMP | 1 |
| Serie AMD Opteron | 7000 |
| Series procesador compatibles | AMD Ryzen™ 7 |
| Entrada de micrófono | Yes |
| Line-in | Yes |
| Puertos COM | 1 |
| Puertos HDMI | 1 |
| Puertos LAN Ethernet (RJ-45) | 1 |
| Puertos PS/2 | 2 |
| Puertos USB 2.0 | 6 |
| Puertos USB 3.2 Gen 1 (3.1 Gen 1) Type-A | 6 |
| Puertos VGA (D-Sub) | 1 |
| Salidas de auriculares | 1 |
| Tipo de conector USB | USB Type-A |
| Versión HDMI | 2.1 |
| Interfaces unidades de almacenamiento soportadas | M.2/PCI Express/SATA |
| Niveles RAID | 0/1/10 |
| Número de unidades de almacenamiento soportadas | 5 |
| RAID soportado | Yes |
| Tipos de unidades de almacenamiento soportadas | HDD & SSD |
| Garantía | 1 año |
MP-128768
Referencias específicas
- MPN
- 911-7E28-001
