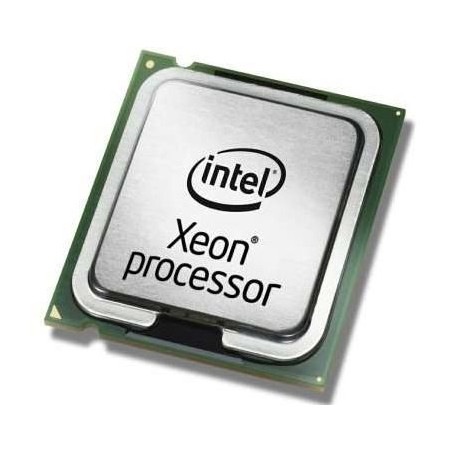

Processor 2.33GHz/1333Mhz

Performance. Efficiency. Agility.
Intel’s newest dual-core processor for dual processor (DP) servers and workstations delivers a new level of energy-efficient performance from the innovative Intel® Core™ microarchitecture, optimized for low-power, dual-core, 64-bit computing.

The Dual-Core Intel Xeon processor 5100 series is ideal for intense computing environments, 32-bit and 64-bit business-critical applications and high-end workstations. Combined with the Intel® 5000 chipset family and Fully Buffered DIMM (FBDIMM) technology, the new Dual-Core Intel Xeon processor 5100 series-based platforms are expected to deliver up to 3 times the performance and 3.5 times the performance/watt of previous-generation single-core Intel® Xeon® processors. The new Dual-Core Intel Xeon processor 5100 series-based platforms are expected to deliver up to 2.25 times the performance and 2.35 times the performance/watt of previous-generation dual-core Intel Xeon processors.

The Dual-Core Intel Xeon processor 5100 series is compatible with Intel® 5000P, 5000V and 5000X series of chipsets. Server boards based on these chipsets are optimized for dual core with advanced platform features of Dual Independent Bus and Fully Buffered DIMM memory technology offering up to 4X and 3X available bandwidth of current generation platforms. Improved I/O performance is possible with PCI Express* and the option of Intel I/O Acceleration Technology.

Dual-core processing
Significant performance headroom, especially for multi-threaded applications, helps boost system utilization through virtualization and application responsiveness.

Intel® Core™ microarchitecture
Better performance on multiple application types and user environments at a substantially reduce power envelope.

Majority of SKUs at 65W
Significantly lower power (compared to previous generation) helps improve data center density and power/thermal operating costs.

Ultra-dense, ultra low-power SKUs at 40W
Low-voltage SKU available at reduced power envelopes will deliver even higher performance per watt — helps reduce power/thermal operating costs and improve data center density.

4 MB shared L2 cache
Increases efficiency of L2 cache-to-processor data transfers, maximizing main memory to processor bandwidth and reducing latency.
Entire L2 cache can be allocated to one core.

1066 and 1333 MHz system bus
Faster system bus speeds than previous generations for increased throughput.

Intel® Virtualization Technology
New processor hardware enhancements that support software-based virtualization, enabling migration of more environments — including 64-bit OSs and applications — to virtual environments.

Intel® Extended Memory 64 Technology (Intel® EM64T)
Flexibility for 64-bit and 32-bit applications and operating systems.

Enhanced Intel® Speedstep™ Technology
Helps reduce average system power consumption and potentially improves system acoustics.

Ejecutar bit de desactivación	Yes
Estados inactivos	Yes
Número de transistores de matriz de procesamiento	291 M
Opciones integradas disponibles	Yes
Procesamiento del tamaño del troquel	143 mm²
Segmento de mercado	Server
Tecnologías de monitorización térmica	Yes
Tarjeta gráfica integrada	No
Tcase	65 °C
Intel® Virtualization Technology (Intel® VT)	VT-x
Bus frontal del procesador	1333 MHz
Caché del procesador	4 MB
Caja	No
Chipsets compatibles	Intel® 5000P/Intel® 5000V/Intel® 5000X/Intel® 5000Z/Intel® 5100/Intel® 5400
Componente para	Server/workstation
Enchufe procesador	LGA 771 (Socket J)
Familia procesador	Intel® Xeon® 5000 Sequence
Frecuencia base del procesador	2,33 GHz
Frecuencia procesador	2,33 GHz
Litografía del procesador	65 nm
Modelo procesador	5140
Modos de funcionamiento del procesador	64-bit
Núcleos procesador	2
Package type	Tray
Paridad FSB	Yes
Potencia de diseño térmico (TDP)	65 W
Tipo de caché del procesador	L2
Intel VT-x with Extended Page Tables (EPT)	Yes
Tecnología de virtualización Intel (VT-x)	Yes
Tecnología Intel SpeedStep mejorada	Yes
Warranty	1 #ProductAttributes.Unit.Year#
