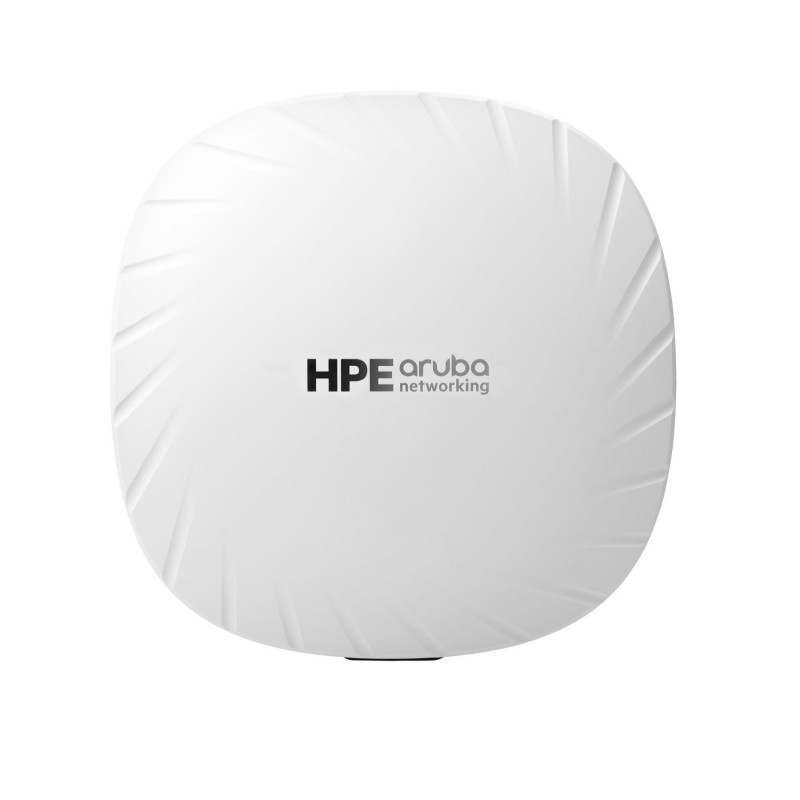

AP-515 Access Point

The Aruba 510 series access points with 802.11ax (Wi-Fi 6), combined with Aruba intelligent software innovations, are designed to deliver high performance connectivity for mobile and IoT devices in any environment.

The 510 series is designed to simultaneously serve multiple clients and traffic types in dense environments, and boosts overall network performance by up to 4X versus 802.11ac APs.

In addition to 802.11ax benefits, the 530 Series also provide Aruba differentiated capabilities that include AI-powered RF optimization, always-on connectivity, WPA3 certified security, and unified wired and wireless policy with Dynamic Segmentation.

Additionally, Green AP mode for 802.11ax APs also leverages AI/ML capabilities for energy savings of up to 70%.

Cantidad de antenas	4
Características de la antena	Integrated antenna
Nivel de ganancia de antena (máx.)	7,5 dBi
Tipo de antena	Internal
Tipo de dirección de antena	Omni-directional
Compliance certificates	CE/Electromagnetic Compatibility (EMC)/Federal Communications Commission (FCC)/ISED/Low Voltage Directive (LVD)
Colocación	Ceiling
Color producto	White
Ranura de bloqueo de cable	Yes
Uso recomendado	Indoor
2,4 GHz	Yes
5 GHz	Yes
Auto MDI/MDI-X	Yes
Banda de frecuencia	20/40 (2.4 GHz), 20/40/80/160 (5 GHz), and maximum peak data rate 2.69 Gbps GHz
Estándares de red	IEEE 802.11ax/IEEE 802.11mc
MACsec support	No
Máxima velocidad de transferencia de datos	5375 Mbit/s
Máxima velocidad de transferencia de datos (2,4 GHz)	575 Mbit/s
Máxima velocidad de transferencia de datos (5 GHz)	4800 Mbit/s
Método del espectro ensanchado	DSSS/OFDM
MIMO	Yes
Modulación	1024-QAM/16-QAM/256-QAM/64-QAM/BPSK/CCK/QPSK
Velocidades datos Ethernet LAN	1000/2500/5000 Mbit/s
Humedad relativa de almacenamiento (H-H)	5 - 93 %
Humedad relativa de funcionamiento (H-H)	5 - 93 %
Temperatura de almacenamiento (T-T)	-40 - 70 °C
Temperatura de funcionamiento (T-T)	0 - 50 °C
Conector jack de entrada DC	Yes
Puertos LAN Ethernet (RJ-45)	2
Puertos USB 2.0	1
Tipo de conector USB	USB Type-A
Alimentación PoE	Yes
Consumo de energía (típico)	16 W
Algoritmos de seguridad	WMM/WPA/WPA2
Garantía	1 año
