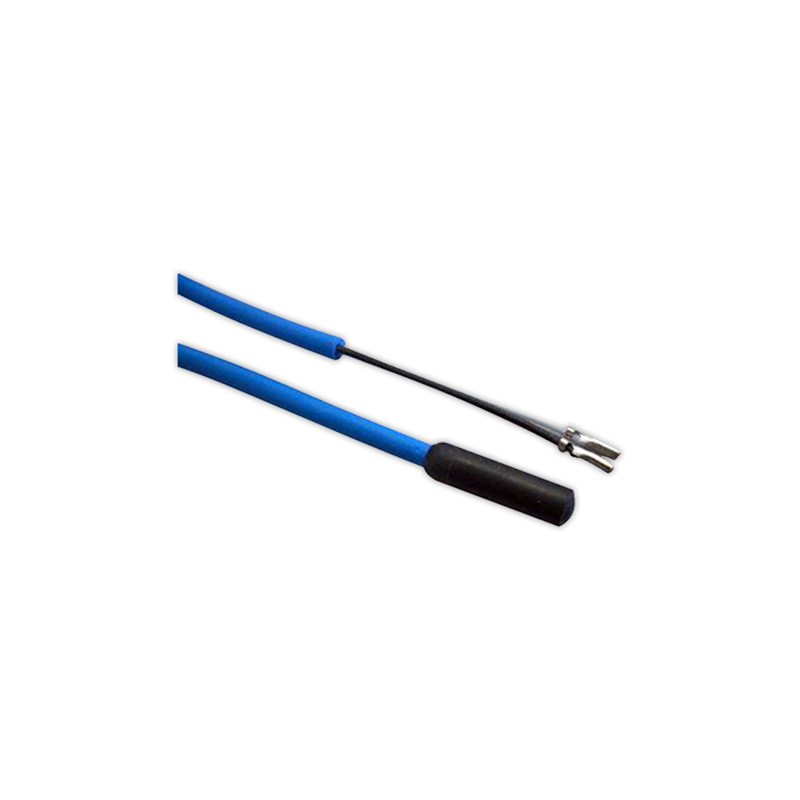

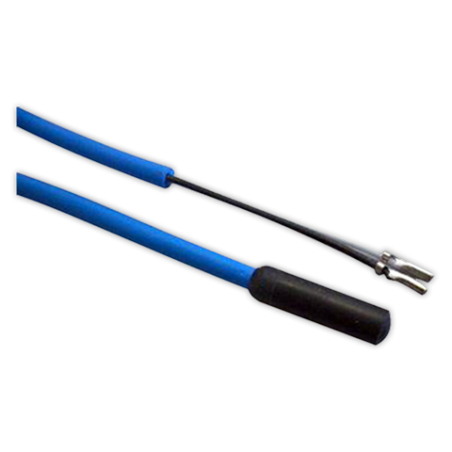

Sonda termostato digital OSAKA S6-1(2)

Nº3 Nº6 Nº9


Nº4


Nº7
OSAKA S 6-1 (2) (IP68) Technical features
N° PROBE GENERAL DATES DESCRIPTION Toll.mm OPERATING RANGE ( -50+110 )°C
1 SERIES PROBE PTC OVER MOULDED WITH CABLE-DOUBLE INSULATION IP 68 ( 2 WIRES ) TOLERANCE 1%
2 ELEMENT PTC KTY 82 - 121 1K 1% SMD PROTECTION GRADE IP 68
3 MATERIAL CASE THERMOPLASTIC RUBBER RESPONSE TIME K=10" in liq. V=2m/s
4 LENGHT CASE 25 mm. +/- 1.5% TESTS
5 Ø CASE 5 mm +/- 1.5%
6 CABLE THERMOPLASTIC RUBBER (EST) POLY. (INT) MECHANICAL TEST kg 2/24 h
color CABLE (BLUE) LEADS (BLACK-WHITE) OHMIC CHECK 25°C 1 KOhm
dimensions SECTION 2X0.25 MM² Ø3.3 MM +/- 1% INSULATION DEGREE 20 Mohm 500 Vcc
7 PROBE LENGHT 2 METERS +/- 3% DIELETRIC STRENGTH 2000 Vac
8 CONNECTOR CABLE/CASE NONE DATE 13/05/2014
9 TERMINALS PINS
10 FILLING THERMOPLASTIC RUBBER
OPTIONS - - - - - - -
EXTRA - - -
NOTE Probes fo temperature measurement
OSAKA SOLUTIONS, SL C/ Luis Sagnier, 46, 08032 Barcelona / SPAIN
comercial@osakasolutions.com www.osakasolutions.com

Toda la información contenida en esta hoja de datos están sujetas a cambios sin previo aviso.
