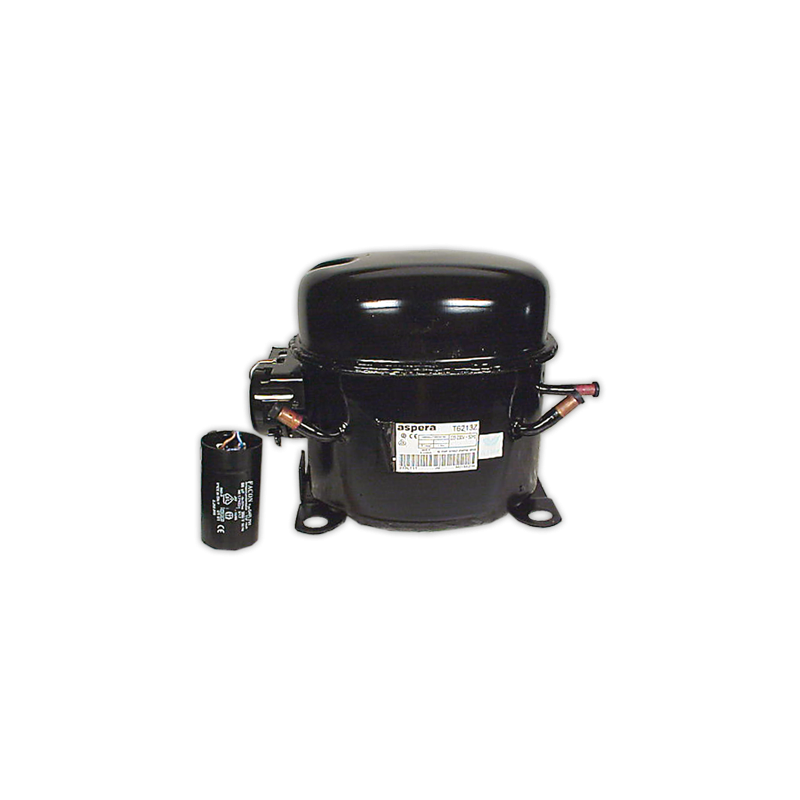

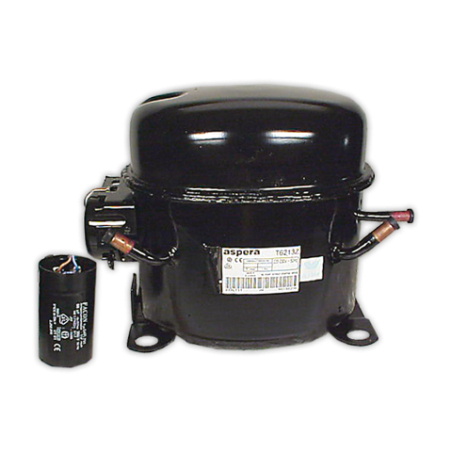

Compresor EMB NEU6214Z R-134a 1/2 AM/F

MODEL
NEU6214Z
ENGINEERING CODE COOLING CAPACITY
269NA51 1636 W (HBP)
APPROVED REFRIGERANT EFFICIENCY
R-134a 2.16 W/W (HBP)
POWER SUPPLY MOTOR TYPE
220-240 V 50 Hz CSIR
STANDARD CONDITIONS STARTING TORQUE
APPROVALS
ASHRAE HST
APPLICATION
HBP
DATA
General Data
Hermetic reciprocating
Type
On-Off
Technology Type
16.8 cm³
Displacement
Fan/NotControled/220
Compressor Cooling
520 m³/h
Fan Air Flow
Capillary Tube or Expansion Valve
Expansion Device
1/2 hp
Horse Power
13.92 bar
Max Condensing Pressure Operating
15.62 bar
Max Condensing Pressure Peak
220-240 V 50 Hz
Power Supply
-15 °C to 10 °C
Evaporating Temperature Range
Electrical Data
CSIR
Motor type
HST
Starting Torque
14.26 at 25° C
Start Winding Resistance
4.25 at 25° C
Run Winding Resistance
Mechanical Data
350 g
Maximum Recommended Refrigerant Charge
350 ml
Oil Charge
ESTER
Oil Type Configuration
ISO22
Oil Type Viscosity
Dry air charge
Pressurization
11.6 Kg
Weight
2.1 L
Free Internal Volume
Electrical Components
  Description
108-130 Uf / 330 V
Start Capacitor
Relay | MTRPH-0048-65*
Starting Device
MST20APK-3259
Motor Protection
External Characteristics
European
Base Plate
No
Tray Holder
206 mm
Height
Connector Internal Diameter Shape
8.1 mm Slanted 42?/Copper
Suction
6.1 mm Straight/Copper
Discharge
6.1 mm Slanted 42?/Copper
Process
PERFORMANCE
Rated Points
Condensing Evaporating Cooling Power Gas Flow
Current Efficiency
Temperature Temperature Capacity Consumption Rate
54.40°C 7.20°C 1637 W 758 W 3.98 A 36.24 kg/h 2.16 W/W
Test Condition: ASHRAEHBP46, Fan/NotControled/220, Return Gas 35°C, Evaporation 7.20°C, Condensing 54.40°C, Ambient 35°C , Liquid 46.1°C, Subcooling 8.3K. Data in accordance to EN
12900:2013 and AHRI 540:2015 polynomial equation and uncertainty guidance.
Performance Curve Data
Condensing Temperature 35°C
Evaporating Cooling Gas Flow Efficiency
Power W Current A
Temperature °C Capacity W Rate kg/h W/W
-15 803 386 2.6 14.81 2.08
-10 1015 431 2.74 18.80 2.35
-5 1267 482 2.91 23.55 2.63
0 1559 537 3.12 29.10 2.9
5 1892 597 3.35 35.51 3.17
10 2267 663 3.62 42.83 3.42
Test Condition: ASHRAEHBP46, Fan/NotControled/220, Return Gas 35°C, Ambient 35°C , Subcooling 8.3K. Data in accordance to EN 12900:2013 and AHRI 540:2015 polynomial equation and
uncertainty guidance.
Condensing Temperature 45°C
Evaporating Cooling Gas Flow Efficiency
Power W Current A
Temperature °C Capacity W Rate kg/h W/W
-15 714 411 2.69 14.23 1.74
-10 906 465 2.86 18.13 1.95
-5 1134 524 3.06 22.78 2.16
0 1398 589 3.3 28.22 2.37
5 1699 659 3.57 34.50 2.58
10 2038 735 3.87 41.66 2.77
Test Condition: ASHRAEHBP46, Fan/NotControled/220, Return Gas 35°C, Ambient 35°C , Subcooling 8.3K. Data in accordance to EN 12900:2013 and AHRI 540:2015 polynomial equation and
uncertainty guidance.
Condensing Temperature 55°C
Evaporating Cooling Gas Flow Efficiency
Power W Current A
Temperature °C Capacity W Rate kg/h W/W
-10 789 502 2.97 17.21 1.57
-5 992 571 3.22 21.75 1.74
0 1228 645 3.51 27.07 1.91
5 1497 724 3.84 33.20 2.07
10 1799 811 4.21 40.20 2.22
Test Condition: ASHRAEHBP46, Fan/NotControled/220, Return Gas 35°C, Ambient 35°C , Subcooling 8.3K. Data in accordance to EN 12900:2013 and AHRI 540:2015 polynomial equation and
uncertainty guidance.
Operating Envelope
External Dimensions
Wiring Diagram
Assembly Instructions
www.embraco.com
