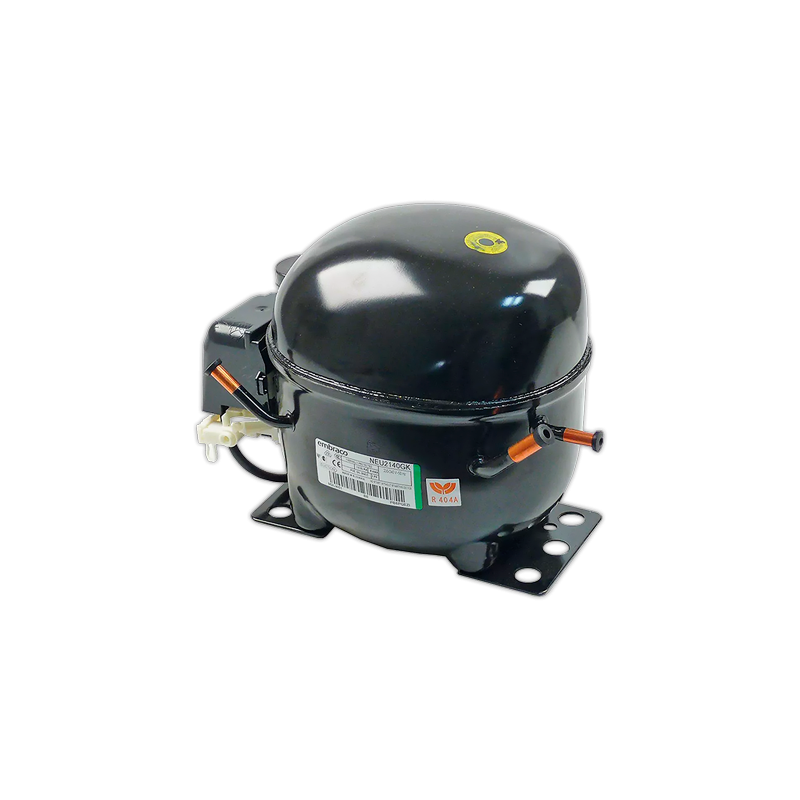

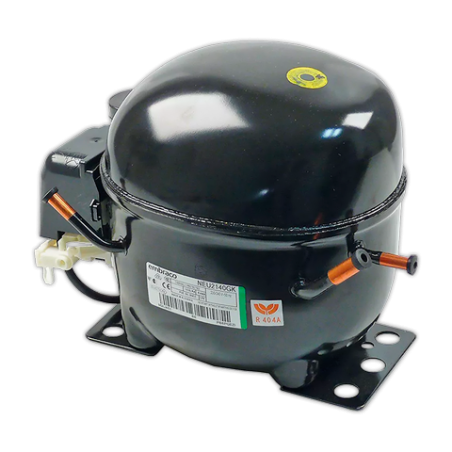

Compresor EMB NEU2155GK R-404A 5/8 B/F

COMPRESSOR TECHNICAL DATA
NEK2150GK
ENGINEERING CODE REFRIGERANT
959AA54 R-404A
POWER SUPPLY APPLICATION
220-240 V 50 Hz LBP
MOTOR TYPE STANDARD
CSIR EN12900
COOLING CAPACITY EFFICIENCY
337 W 0.96 W/W
DATA
GENERAL DATA
NEK2150GK
Model
Hermetic Reciprocating
Type
ON/OFF
Technology
LBP
Compressor Application
Capillary Tube or Expansion Valve
Expansion Device
Fan/220
Compressor Cooling
1/2
HP
HST
Starting Torque
SLOVAKIA
Plant
ELECTRICAL DATA
27.95 Ω at 25°C
Start Winding Resistance
5.11 Ω at 25°C
Run Winding Resistance
MECHANICAL DATA
Displacement 12.11 cm³
Oil Charge 350 ml
Oil Type ESTER
Oil Viscosity ISO22
Weight 11 Kg
ELECTRICAL COMPONENTS
Start Capacitor 72-88 μf/330 V
CSR CSIR BOX No
Starting Device Type RELAY
Starting Device Description MTRP-0012*
Overload Protection T0634/G6
EXTERNAL CHARACTERISTICS
SMALL
Base Plate
YES
Tray Holder
Connector Internal Diameter Shape Material
8.1 mm SLANTED 42° COPPER
Suction
6.1 mm STRAIGHT COPPER
Discharge
6.1 mm SLANTED 42° COPPER
Process
PERFORMANCE
TESTED CONDITIONS
R-404A
Tested Refrigerant
LBP
Tested Application
EN12900
Tested Standard
Fan
Tested Cooling
220 V
Tested Voltage
50 Hz
Tested Frequency
Dew
Refrigerant Temperature
RATED POINTS
Condensing Evaporating Power
Cooling Efficiency Gas Flow
Temperature Temperature Consumption Current A
Capacity W W/W Rate kg/h
°C °C W
40 -35 337 0.96 352 - 9.13
Test Condition: Subcooling 0 K, Return Gas 20 ºC. Data are an indication of performance based simulation.
PERFORMANCE CURVE Condensing Temperature 35ºC
Evaporating Power
Cooling Efficiency Gas Flow
Temperature Consumption Current A
Capacity W W/W Rate kg/h
°C W
-40 283 0.94 303 - 7.18
-35 370 1.07 344 - 9.44
-30 478 1.23 390 - 12.26
-25 609 1.39 437 - 15.69
-20 764 1.58 484 - 19.79
-15 942 1.78 528 - 24.62
-10 1147 2.02 569 - 30.23
Test Condition: Subcooling 0 K, Return Gas 20 ºC. Data are an indication of performance based simulation.
PERFORMANCE CURVE Condensing Temperature 45ºC
Evaporating Power
Cooling Efficiency Gas Flow
Temperature Consumption Current A
Capacity W W/W Rate kg/h
°C W
-40 229 0.73 312 - 6.59
-35 303 0.85 358 - 8.77
-30 395 0.96 410 - 11.48
-25 506 1.09 466 - 14.79
-20 636 1.21 525 - 18.75
-15 787 1.35 585 - 23.41
-10 960 1.49 643 - 28.83
Test Condition: Subcooling 0 K, Return Gas 20 ºC. Data are an indication of performance based simulation.
PERFORMANCE CURVE Condensing Temperature 55ºC
Evaporating Power
Cooling Efficiency Gas Flow
Temperature Consumption Current A
Capacity W W/W Rate kg/h
°C W
-30 306 0.74 416 - 10.44
-25 396 0.83 480 - 13.62
-20 502 0.91 549 - 17.42
-15 625 1.01 622 - 21.90
-10 766 1.10 696 - 27.13
Test Condition: Subcooling 0 K, Return Gas 20 ºC. Data are an indication of performance based simulation.
ENVELOPE
EXTERNAL DIMENSIONS
