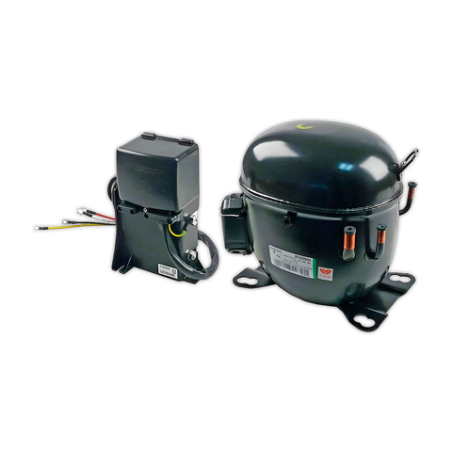

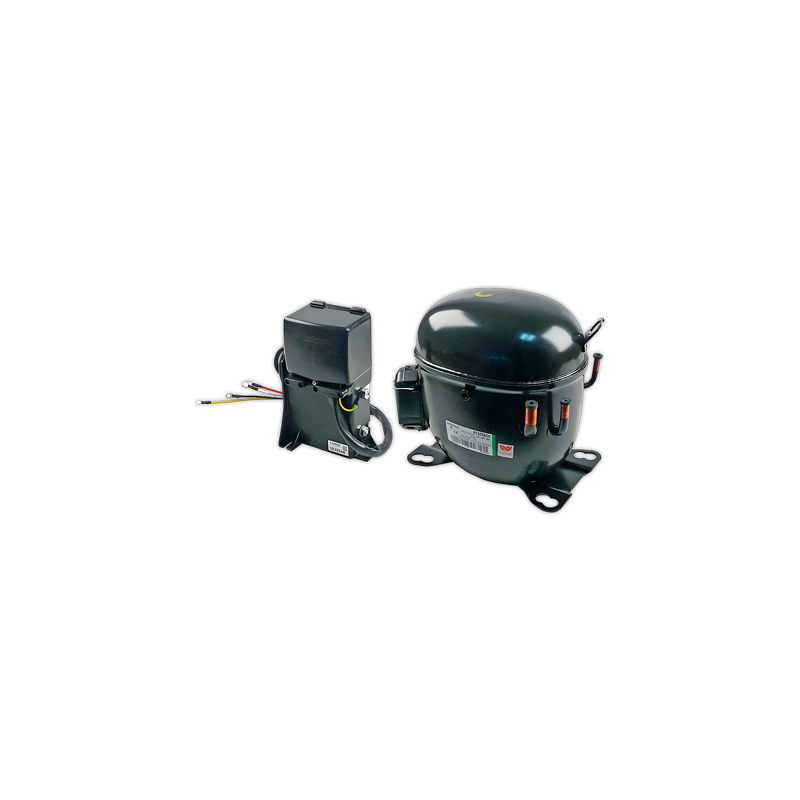

Compresor EMB NT6226GK R-404A 1CV AM/F

MODEL
NT6226GK
ENGINEERING CODE COOLING CAPACITY
923BA08 1755 W
APPROVED REFRIGERANT EFFICIENCY
R-404A 1.79 W/W
POWER SUPPLY MOTOR TYPE
220-240 V 50 Hz CSCR
STANDARD CONDITIONS STARTING TORQUE
APPROVALS
EN12900 HST
APPLICATION
MBP
DATA
General Data
Hermetic reciprocating
Type
On-Off
Technology Type
22.4 cm³
Displacement
Fan
Compressor Cooling
520 m³/h
Fan Air Flow
Capillary Tube or Expansion Valve
Expansion Device
1 hp
Horse Power
24.71 bar
Max Condensing Pressure Operating
27.71 bar
Max Condensing Pressure Peak
220-240 V 50 Hz
Power Supply
-20 °C to 10 °C
Evaporating Temperature Range
Electrical Data
CSCR
Motor type
HST
Starting Torque
8.31 at 25° C
Start Winding Resistance
at 25° C
1.63
Run Winding Resistance
Mechanical Data
800 g
Maximum Recommended Refrigerant Charge
450 ml
Oil Charge
Polyolester
Oil Type Configuration
ISO22
Oil Type Viscosity
Dry air charge
Pressurization
18.2 Kg
Weight
3.3 L
Free Internal Volume
Electrical Components
Description
yes
CSR / CSIR Box
Potential relay | RVA403C-123
Starting Device
130-156 ?F / 250V
Start Capacitor
External 3/4" T0828/C9
Motor Protection
External Characteristics
Universal
Base Plate
No
Tray Holder
234 mm
Height
Connector Internal Diameter Shape
12.7 mm ROTOLOCK 1"-14UNS-2A
Suction
6.42 mm Vertical
Discharge
6.42 mm Vertical
Process
PERFORMANCE
Rated Points
Condensing Evaporating Cooling Power Gas Flow
Current Efficiency
Temperature Temperature Capacity Consumption Rate
45.00°C -10.00°C 1755 W 980 W 4.78 A 52.71 kg/h 1.79 W/W
Test Condition: EN12900, Fan, Return Gas 20°C, Evaporation -10.00°C, Condensing 45.00°C, Ambient 35°C , Liquid 45°C. Data in accordance to EN12900 guideline polynomial curve.
Performance Curve Data
Condensing Temperature 35°C
Evaporating Cooling Gas Flow Efficiency
Power W Current A
Temperature °C Capacity W Rate kg/h W/W
-20 1361 764 3.83 35.28 1.78
-15 1706 831 4.12 44.58 2.05
-10 2117 898 4.42 55.78 2.36
-5 2592 966 4.72 69.05 2.68
0 3133 1035 5.03 84.52 3.03
5 3739 1106 5.35 102.35 3.38
10 4410 1180 5.69 122.69 3.74
Test Condition: EN12900, Fan, MBP. Data in accordance to EN12900 guideline polynomial curve.
Condensing Temperature 45°C
Evaporating Cooling Gas Flow Efficiency
Power W Current A
Temperature °C Capacity W Rate kg/h W/W
-20 1114 821 4.09 32.83 1.36
-15 1408 901 4.43 41.86 1.56
-10 1755 980 4.78 52.71 1.79
-5 2157 1059 5.13 65.56 2.04
0 2612 1138 5.49 80.54 2.3
5 3121 1218 5.86 97.81 2.56
10 3683 1299 6.23 117.52 2.83
Test Condition: EN12900, Fan, MBP. Data in accordance to EN12900 guideline polynomial curve.
Condensing Temperature 55°C
Evaporating Cooling Gas Flow Efficiency
Power W Current A
Temperature °C Capacity W Rate kg/h W/W
-10 1422 1062 5.16 50.41 1.34
-5 1746 1156 5.58 62.80 1.51
0 2113 1249 6.01 77.26 1.69
5 2522 1342 6.44 93.94 1.88
10 2973 1435 6.88 112.98 2.07
Test Condition: EN12900, Fan, MBP. Data in accordance to EN12900 guideline polynomial curve.
Operating Envelope
External Dimensions
Wiring Diagram
Assembly Instructions
www.embraco.com
