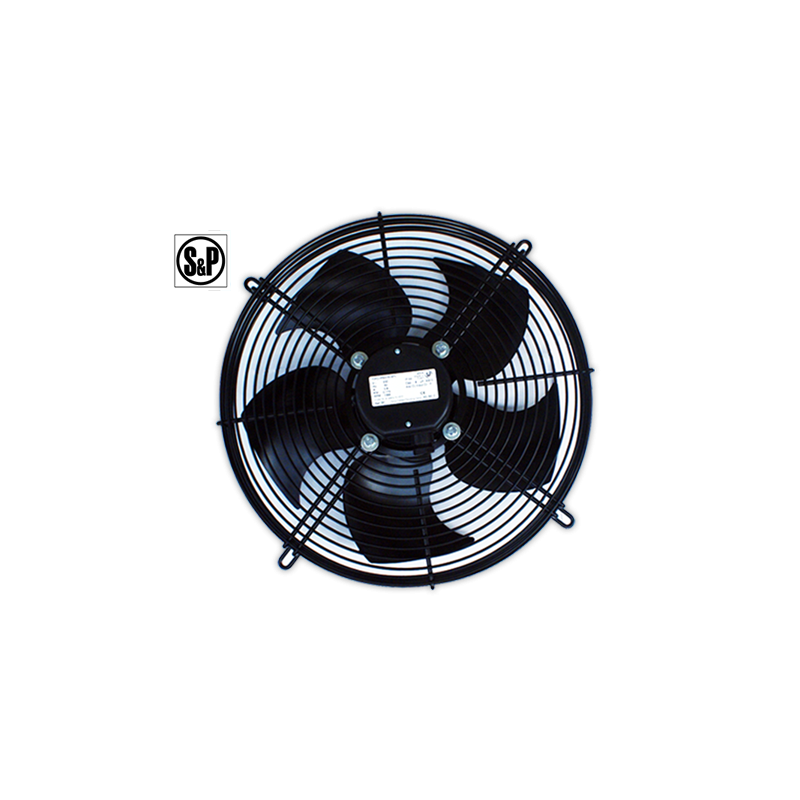

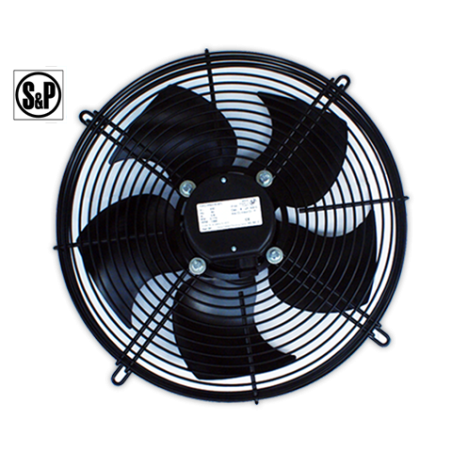

Ventilador S&P HRT/4-350 BPN aspirante

HRT/4-350 BPN
Dimensiones y conexiones
IP44
Dimensions and wiring
2015
61
Características
Characteristics
Tensión
3 230/400V 50/60Hz
Voltage
0
4
4
Tipo motor 4 polos
IP44 cl.F
Motor type 4 poles
Potencia absorbida máxima
190 W
Maximum power absorbed
Intensidad absorbida máxima
0,4 A
Maximum absorbed current
49
Condensador
Capacitor
Ia/In
2,7
Is/In
Temperatura del aire
-40ºC<T<+60ºC
Air temperature
Peso
4,0 kg
Weight
Código ventilador
5750134800
Fan code number
Código motor
- - - - - - - - -
Motor code number
Curvas características / Performance curves
(11/01/2010)

ErP
Fan
-1
p [Pa]
sf
n
[min ]
2013 2015
data
1500
140
Installation category
A
Efficiency category
Static
VSD must be installed
with the fan
120
No
1000
70
Specific ratio
1
Overall efficiency [%]
28,6 24,6 28,6
100
500
Efficiency grade
40 36,0 40,0

max
Absorbed power [kW]
0,158

3
/h] 1838
Air volume [m
80
0
Static pressure [Pa]
89
SFP

65L [dB(A)]
WA
3
Speed [RPM]
[W/m /s]
1347
P
[W]
250
600
60
* Data at optimum efficiency
working point
200
Norma ensayo: ISO 5801
400
Ventilador probado sin reja y
40
150
con embocadura
Test standard: ISO 5801
100
Fan tested without guard and
200
20
with bellmouth entry
50
69
Espectro de potencia (LwA)
0 0 0
en dB(A) en la aspiración en
3
q [m /h]
800 1200 1600 2000 2400 2800
punto de trabajo de presión
v
baja (L), media (M), alta (H)
Hz 63 125 250 500 1000 2000 4000 8000 LwA
Sound power spectrum (LwA)
L 38 49 54 59 64 65 60 51 69
in dB(A), at the fan inlet in
M 34 45 50 55 60 61 56 47 65
low(L), medium(M) or high(H)
pressure working point.
H 45 54 60 62 65 64 60 53 70
