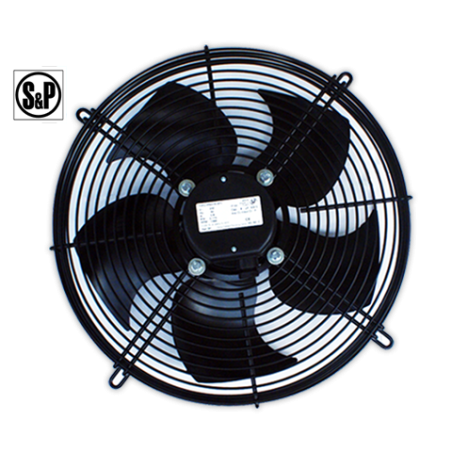

Ventilador S&P HRT/4-400 BPN aspirante

HRT/4-400 BPN
Dimensiones y conexiones
IP44
Dimensions and wiring
2015
64
Características
Characteristics
Tensión
3 230/400V 50/60Hz
Voltage
8 5
9 0
3 5
Tipo motor 4 polos
IP44 cl.F
Motor type 4 poles
Potencia absorbida máxima
180 W
Maximum power absorbed
Intensidad absorbida máxima
0,4 A
Maximum absorbed current
46
Condensador
Capacitor
Ia/In
2,9
Is/In
Temperatura del aire
-40ºC<T<+60ºC
Air temperature
Peso
5,0 kg
Weight
Código ventilador
5755110300
Fan code number
Código motor
Motor code number
(06/07/2012)
Curvas características / Performance curves

-1
p [Pa]
ErP
sf
Fan
n
[min ]
2013 2015
data
1500
120
Installation category
A
1300
Efficiency category
Static
VSD must be installed
100
1100
with the fan
No
66
Specific ratio
1
900
Overall efficiency [%]
31,4 24,7 28,7

max
80
Efficiency grade
42,7 36,0 40,0
700
Absorbed power [kW]
0,164

3
500
Air volume [m
/h] 2341
SFP
Static pressure [Pa]
3
79
60
[W/m /s]
[W]
P
Speed [RPM]
1248
66 L [dB(A)]
200
600
WA

* Data at optimum efficiency
working point
150
40
400
Norma ensayo: ISO 5801
Ventilador probado sin reja y
100
con embocadura
20
Test standard: ISO 5801
200
Fan tested without guard and
50
with bellmouth entry
68
0 0 0
Espectro de potencia (LwA)
3
q [m /h]
1200 1600 2000 2400 2800 3200 3600
v
en dB(A) en la aspiración en
punto de trabajo de presión
baja (L), media (M), alta (H)
Hz 63 125 250 500 1000 2000 4000 8000 LwA
Sound power spectrum (LwA)
L 37 48 53 58 63 64 59 50 68
in dB(A), at the fan inlet in
M 35 46 51 56 61 62 57 48 66
low(L), medium(M) or high(H)
pressure working point.
H 41 50 56 58 61 60 56 49 66
Soler&Palau
Ventilation Group
31
