Vivotek Security Camera Ip Security - Ref. VC9101

VIVOTEK’s VC9101 is a high-performance split-type camera system. Its discreet design, rich functionality and ability to be flexibly integrated into even the tightest spaces, make this camera ideal for indoor or covert surveillance of ATMs, banks, stores and offices.

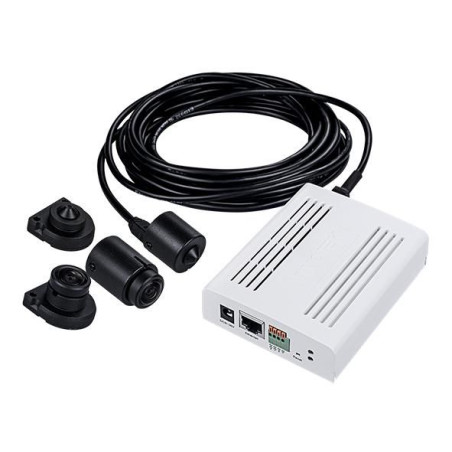

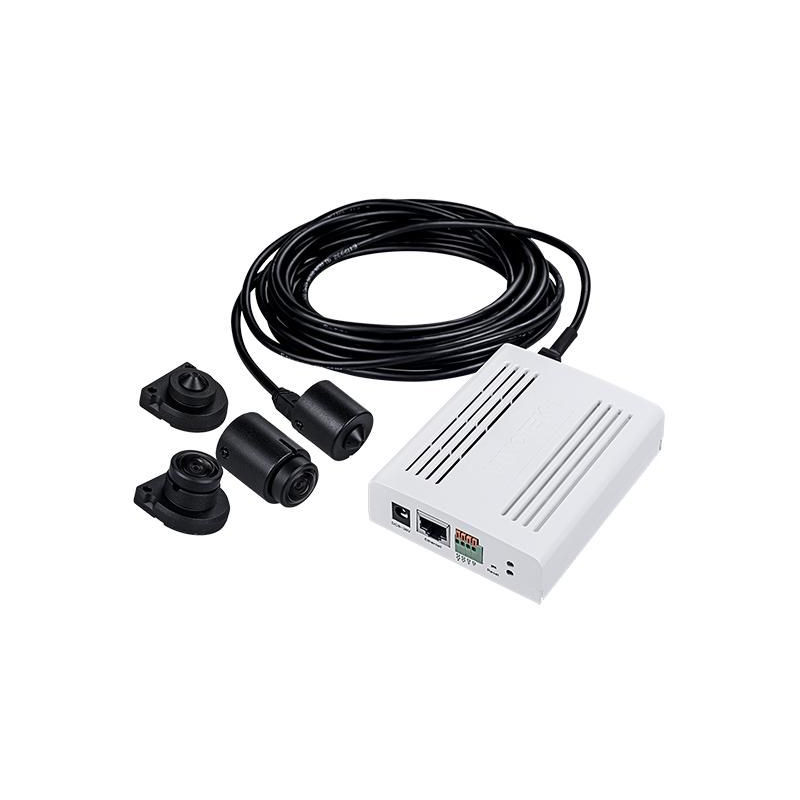

The VC9101 features a separate camera unit (CU series) and video core design, enabling the tiny camera unit (with 5-meter long cable) to be easily and flexibly installed into any decoration or interior design, thus preserving stylish appearances while dramatically saving on installation time and cost.

VC9101 video core has a powerful processor which can stream a 5MP 360 degree fisheye image or a 4MP 16:9 image. Furthermore, the VC9101 is equipped with CNN (Convolutional Neural Network) hardware accelerator which allows the deep learning VCA be more efficient and powerful. VC9101 also provides deep learning based face detection suitable for most installation scenarios.

The VC9101 camera core can support one camera unit and is designed to work in perfect harmony with a choice of 4 different types of camera units, CU9171-H, CU9171-HF, CU9183-H and CU9183-HF. The whole system incorporates a number of advanced features found in VIVOTEK cameras, including WDR Pro, SNV, Smart Stream III technology, 3DNR, and security features like secure boot, signed firmware, and Trend Micro cybersecurity.

Formatos de audio compatibles	G.711/G.726
Relación señal-ruido (SNR)	55,9 dB
Sistema de audio	2-way
Sistema de audio dúplex completo	Yes
Ángulo de visión de la lente, diagonal	117 °
Ángulo de visión de lente, horizontal	93 °
Ángulo de visión de lente, vertical	48 °
Iluminación mínima	0,045 lx
Velocidad de obturación	1/5 - 1/32000 s
Color producto	Black
Indicadores LED	Power/Status
Tamaño sensor óptico	1/2.7 "
Tipo de sensor	CMOS
Distancia focal fija	3,7 mm
Máximo número de apertura	2,5
Número de lentes	1
Zoom digital	48 x
Bluetooth	No
Ethernet LAN	Yes
Número de usuarios	10 usuario(s)
Tipo de interfaz Ethernet	Fast Ethernet
Wi-Fi	No
Visión nocturna	No
Temperatura de almacenamiento (T-T)	0 - 50 °C
Temperatura de funcionamiento (T-T)	-10 - 50 °C
Número de cámaras	1
Amplio rango dinámico (WDR)	Yes
Control PTZ	Yes
Instalación soportada	Indoor
Rango dinámico	120 dB
Tecnología de conectividad	Wired
Tipo	IP security camera
Entrada de micrófono	Yes
Consumo de energía (máx.)	8,5 W
Tipo de alimentación	PoE
Detección de movimiento de vídeo	Yes
Protección con contraseña	Yes
HDD integrado	No
Lector de tarjetas integrado	Yes
Memoria flash	8192 MB
Memoria interna	2048 MB
Tarjetas de memoria compatibles	MicroSD (TransFlash)
Sistemas operativos Mac soportados	Mac OS X 10.12 Sierra
Sistemas operativos Windows soportados	Windows 10/Windows 7/Windows 8
Garantía	1 año
Formatos de compresión de vídeo	H.264/H.265/M-JPEG
Megapixels totales	5 MP
Resolución máxima	2688 x 1520 Pixeles
Tecnología de reducción de ruido	3D noise reduction
Velocidad de fotogramas	30 pps
