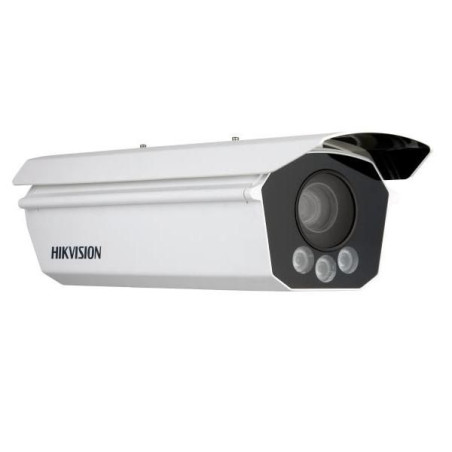

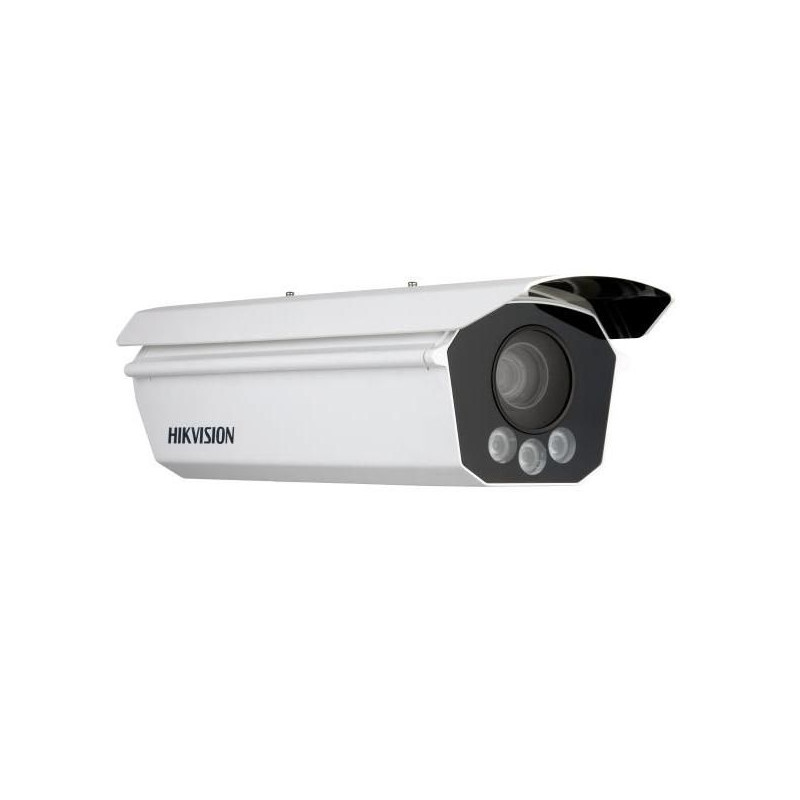

9 MP IR ANPR Checkpoint

New mobility and transportation models are emerging every day, and there are more and more vehicles hitting the road in towns and cities worldwide, adding to the complexity of our already overloaded urban traffic systems. The effects of excessive traffic negatively affect inhabitants’ quality of life and the sustainability of cities.

Apart from increasing transportation capacity, the issue may also be addressed by keeping traffic system operators and users better informed; and by making safer, more coordinated, and smarter use of the road networks.

Across the world, city authorities are beginning to look for smart technologies to make people’s journeys faster and safer. One of these is Hikvision’s portfolio of video security solutions that incorporate various cutting-edge technologies. From dedicated high-performance cameras for event capture to centralized video management platforms and comprehensive smart parking systems, our ITS solutions perfectly integrate all the devices and deliver scalable applications to cover various transportation scenarios.

Trust Hikvision ITS products for their industry-leading stability, reliability, and performance. Altogether, they transform standard video monitoring with features that alert operators and users about traffic issues in real time, allowing them to take immediate actions to keep lanes clear and traffic flowing.

Checkpoint Systems
As a critical part of the intelligent traffic systems, checkpoints provide key data on traffic flow and violations. They create an intelligent network that weaves the whole roadmap together for maximum insight and administration of traffic.

Código de protección (IP)	IP67
Código IK	IK10
Material	Aluminium
Capture rate	99 %
Capture speed range	10 - 320 kmh
Driving direction recognition accuracy	98,5 %
License plate recognition	Yes
LPR accuracy	98 %
Maximum number of lane coverage	3
Mistaken capture rate	2 %
Motorcycle license plate recognition	Yes
No license plate detection	Yes
Sistema operativo instalado	Linux
Tecnología de conectividad	Wired
Tipo	Checkpoint camera
Trigger mode	External I/O trigger/Radar trigger/Video trigger
Vehicle colour recognition	Yes
Vehicle manufacturer recognition	Yes
Vehicle type recognition	Yes
Violation behaviour detection	Driving on lane line/Driving without seatbelt/Lane change/Phone call while driving/Wrong-way driving
Fastest camera shutter speed	0.00005/1 s
Infrared (IR) cut-off filter	Yes
Maximum image resolution	4096 x 2160 Pixeles
Megapixel (aprox.)	9 MP
Minimum illumination	0 lx
Slowest camera shutter speed	0,02 s
Tamaño sensor óptico	1/1 "
Tipo de sensor	GMOS
Ajuste de enfoque	Auto
Focal length range (varifocal)	11 - 40 mm
Máximo número de apertura	25
Número de lentes	1
Número mínimo de apertura	1,4
Tipo de lente	Varifocal lens
Web browsers supported	Chrome V61+, IE9 to IE11, Firefox V41+, Edge
API standards	ISAPI/ISUP/ONVIF/SDK
Ethernet LAN	Yes
Nivel de acceso de usuario	Administrator/Operator/User
Número de canales de visualización simultánea en vivo	6 canales
Número de usuarios	32 usuario(s)
Protocolos de red soportados	TCP/IP,ICMP,HTTP,HTTPS,FTP,DNS,RTP,RTSP,RTCP,NTP,SNMP,802.1X,IPv4/IPv6,UDP,ISUP,ARP,IGMP
Tipo de interfaz Ethernet	Gigabit Ethernet
Distancia visión nocturna	30 m
Longitud de onda infrarroja	850 nm
Número de LEDs de iluminación	3
Tipo de LED	IR
Visión nocturna	Yes
Humedad relativa de almacenamiento (H-H)	0 - 95 %
Humedad relativa de funcionamiento (H-H)	5 - 95 %
Temperatura de almacenamiento (T-T)	-30 - 60 °C
Temperatura de funcionamiento (T-T)	-30 - 70 °C
Cantidad por pack	1 pieza(s)
Canales de entrada de alarma	2
Canales de salida de alarma	7
Puerto USB	Yes
Puertos LAN Ethernet (RJ-45)	2
Puertos RS-232	1
Puertos RS-485	3
Consumo de energía (máx.)	35 W
Tipo de alimentación	AC
Voltaje de entrada AC	100 - 240 V
Built-in radar	Yes
Tarjetas de memoria compatibles	MicroSD (TransFlash)/MicroSDHC/MicroSDXC
Basic event	HDD Error, network disconnected, IP address conflicted, vehicle detector exception, traffic light detector exception
Relación señal-ruido (SNR)	60 dB
Vehicle colour	Black/Blue/Brown/Cyan/Green/Grey/Pink/Purple/Red/White/Yellow
Vehicle type	Bus/Car/Light truck/Motorcycle/MPV/Pickup/SUV/Tricycle/Truck/Van
Garantía	3 años
Formatos de compresión de vídeo	H.264/H.265/M-JPEG
H.264 profiles	Baseline/High/Main
H.265 profiles	Main
Image enhancement methods	3D Digital Noise Reduction (3D DNR)/Backlight Compensation (BLC)/Highlight Compensation (HLC)
Máxima resolución de vídeo	4096 x 2160 Pixeles
Resoluciones de vídeo	1280 x 720/1920 x 1080/1920 x 1200/2688 x 1520/3840 x 2160/4096 x 2160/704 x 576 Pixeles
Velocidad de fotogramas	50 pps
