Aruba Instant On 1930 Managed - Ref. JL685A#ABB
492,10 €
406,70 € sin IVA
Impuestos incluidos

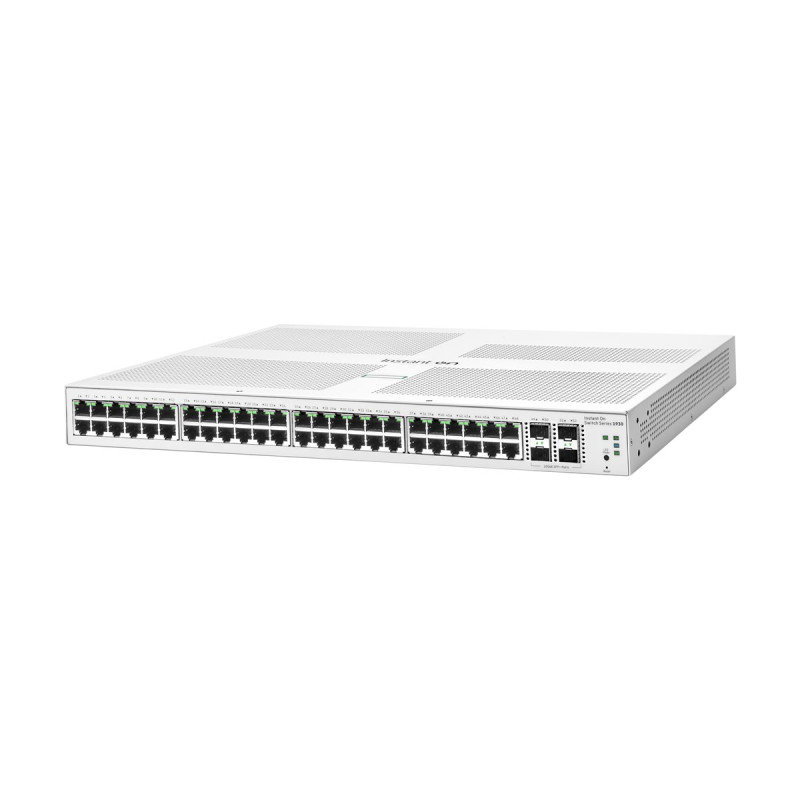

HPE Aruba Instant On 1930 Smart 48G 4SFP+ Switch. Producto HPE.
Pago 100% seguro
Tarjeta (RedSys) y transferencia bancaria
Envío en 24/72 h
Envío 12,04 € (IVA inc.) · GRATIS a partir de 299 €
Devoluciones en 14 días
Devolución fácil y sin complicaciones
Factura de empresa
IVA desglosado y factura oficial en cada compra
The Aruba Instant On 1930 switch series is designed for small and growing businesses that require enhanced performance to support bandwidth-demanding applications. The Aruba Instant On 1930 switch series seamlessly integrates with existing Instant On indoor/outdoor access points and can be centrally managed with the Instant On mobile app onsite or remotely. These cloud-managed layer 2+ Ethernet switches consist of 8-, 24-, and 48-port Class 4 PoE (i.e. PoE+) and non-PoE Gigabit Ethernet models, with 1G SFP slots on 8-port model and 1G/10G SFP+ slots on 24-/48G models for fiber connectivity.
Features
Simplify Network Deployment and Management for Small Organizations
- The Aruba Instant On 1930 switch series features easy-to-use, out-of-the-box, plug-and-play deployment.
- The series offers a complete portfolio of choices for increased small business flexibility. It consists of seven models including 8G-, 24G-, and 48G-ports with and without class 4 PoE (i.e. PoE+).
- The 24- and 48- port models include four SFP/SFP+ transceiver slots that support Gigabit or 10-Gigabit speeds for fiber connectivity.
- The Aruba Instant On 1930 switch series can be deployed using two management modes – Instant On cloud-management (access via mobile app and/or web portal) and the local web GUI.
Keep Your Business Protected with Integrated Security Features
- The Aruba Instant On 1930 switch series supports energy efficient Ethernet for lower power consumption and an enhanced feature set for more robust operation.
- Enhanced security features such as IEEE 802.1x, and VLANs guard your network from unwanted or unauthorized access.
- Automatic denial-of-service (DOS) monitors and protects the network against malicious attacks.
- Management security restricts access to critical configuration commands, offers multiple privilege levels with password protection.
Deliver High Perfomance
- The Aruba Instant On 1930 switch series delivers advanced functionalities including customizable like VLANs, link aggregation, Spanning Tree Protocols, and IEEE 802.1X access control.
- 8-, 24-, and 48-port configurations with a choice of non-PoE and Class 4 PoE models provides deployment flexibility that fits all small business environment. Class4 PoE options allow to power devices like IP phones, surveillance cameras and access points, without the cost of additional cabling.
- The 24- and 48-port models include 1G/10G SFP+ ports for reliable fiber connectivity and other connections across longer distances.
- The switch series is covered by the Limited Lifetime Warranty with 24x7 phone support for 90 days and chat support for the entire warranty duration.
Features
Simplify Network Deployment and Management for Small Organizations
- The Aruba Instant On 1930 switch series features easy-to-use, out-of-the-box, plug-and-play deployment.
- The series offers a complete portfolio of choices for increased small business flexibility. It consists of seven models including 8G-, 24G-, and 48G-ports with and without class 4 PoE (i.e. PoE+).
- The 24- and 48- port models include four SFP/SFP+ transceiver slots that support Gigabit or 10-Gigabit speeds for fiber connectivity.
- The Aruba Instant On 1930 switch series can be deployed using two management modes – Instant On cloud-management (access via mobile app and/or web portal) and the local web GUI.
Keep Your Business Protected with Integrated Security Features
- The Aruba Instant On 1930 switch series supports energy efficient Ethernet for lower power consumption and an enhanced feature set for more robust operation.
- Enhanced security features such as IEEE 802.1x, and VLANs guard your network from unwanted or unauthorized access.
- Automatic denial-of-service (DOS) monitors and protects the network against malicious attacks.
- Management security restricts access to critical configuration commands, offers multiple privilege levels with password protection.
Deliver High Perfomance
- The Aruba Instant On 1930 switch series delivers advanced functionalities including customizable like VLANs, link aggregation, Spanning Tree Protocols, and IEEE 802.1X access control.
- 8-, 24-, and 48-port configurations with a choice of non-PoE and Class 4 PoE models provides deployment flexibility that fits all small business environment. Class4 PoE options allow to power devices like IP phones, surveillance cameras and access points, without the cost of additional cabling.
- The 24- and 48-port models include 1G/10G SFP+ ports for reliable fiber connectivity and other connections across longer distances.
- The switch series is covered by the Limited Lifetime Warranty with 24x7 phone support for 90 days and chat support for the entire warranty duration.
| Capacidad | 130,95 Mpps |
| Capacidad de conmutación | 176 Gbit/s |
| Latencia (1 Gbps) | 2,2 µs |
| Latencia (10 Gbps) | 1,2 µs |
| Latencia (10-100 Mbps) | 4,5 µs |
| Memoria de búfer de paquetes | 1,5 MB |
| Tabla de direcciones MAC | 16000 entradas |
| Apilable | No |
| Color producto | White |
| Factor forma | 1U |
| Montaje en rack | Yes |
| Capa switch | L2+ |
| Gestión basada en web | Yes |
| Soporte de calidad de servicio (QoS) | Yes |
| Tipo de switch | Managed |
| Agregación de enlaces | Yes |
| Auto MDI/MDI-X | Yes |
| Detección automática | Yes |
| Estándares de red | IEEE 802.1p/IEEE 802.1Q/IEEE 802.1x/IEEE 802.3/IEEE 802.3ab/IEEE 802.3x/IEEE 802.3z |
| Full duplex | Yes |
| Limitación de velocidad | Yes |
| Número de VLANs | 256 |
| Protocolo de árbol de expansión | Yes |
| Puertos en espejo | Yes |
| Soporte 10G | Yes |
| Soporte de control de flujo | Yes |
| Soporte VLAN | Yes |
| Tecnología de cableado Ethernet de cobre | 1000BASE-T/100BASE-TX/10BASE-T |
| Humedad relativa de almacenamiento (H-H) | 15 - 95 % |
| Humedad relativa de funcionamiento (H-H) | 15 - 95 % |
| Temperatura de almacenamiento (T-T) | -40 - 70 °C |
| Temperatura de funcionamiento (T-T) | 0 - 40 °C |
| Frecuencia procesador | 800 MHz |
| Memoria flash | 256 MB |
| Memoria interna | 512 MB |
| Modelo procesador | ARM Cortex-A9 |
| Tipo de memoria | SDRAM |
| Cantidad de ranuras para módulos SFP+ | 4 |
| Puertos Ethernet RJ-45 de conmutación básica | 48 |
| Tipo de puertos Ethernet RJ-45 de conmutación básica | Gigabit Ethernet (10/100/1000) |
| Consumo de energía (máx.) | 36,9 W |
| Frecuencia de entrada AC | 50 - 60 Hz |
| Fuente de alimentación | AC |
| Fuente de alimentación incluida | Yes |
| Voltaje de entrada AC | 100 - 240 V |
| Alimentación PoE | No |
| Compatibilidad SSH/SSL | Yes |
| IGMP snooping | Yes |
| Garantía | 1 año |
Características principales
- Puertos: 48 puertos
- Tipo de puertos: Gigabit Ethernet (10/100/1000)
- Puertos SFP+: 4 ranuras
- Gestión: Managed
- Capa: L2+
- Capacidad de conmutación: 176 Gbit/s
- Tabla MAC: 16000 entradas
- VLAN: 256 VLAN
- Apilable: No
- Montaje: 1U
MP-24529
35 unidades
Ficha técnica
- Estándares de red
- IEEE 802.1p/IEEE 802.1Q/IEEE 802.1x/IEEE 802.3/IEEE 802.3ab/IEEE 802.3x/IEEE 802.3z
- Soporte 10G
- Yes
- Tecnología de cableado ethernet de cobre
- 1000BASE-T/100BASE-TX/10BASE-T
- Soporte de control de flujo
- Yes
- Tabla de direcciones MAC
- 16000 entradas
- Capacidad de conmutación
- 176 Gbit/s
- Montaje en rack
- Yes
- Apilable
- No
- Capacidad
- 130,95 Mpps
- Memoria interna
- 512 MB
- Soporte VLAN
- Yes
- Número de VLANs
- 256
- Memoria Flash
- 256 MB
- Protocolo de árbol de expansión
- Yes
- Tipo de memoria
- SDRAM
- Latencia (10-100 Mbps)
- 4,5 µs
- Latencia (1 Gbps)
- 2,2 µs
- Color producto
- White
- Humedad relativa de almacenamiento (H-H)
- 15 - 95 %
- Humedad relativa de funcionamiento (H-H)
- 15 - 95 %
- Temperatura de almacenamiento (T-T)
- -40 - 70 °C
- Temperatura de funcionamiento (T-T)
- 0 - 40 °C
- Factor forma
- 1U
- Full duplex
- Yes
- Gestión basada en web
- Yes
- Soporte de calidad de servicio (QoS)
- Yes
- Modelo procesador
- ARM Cortex-A9
- Latencia (10 Gbps)
- 1,2 µs
- Capa switch
- L2+
- Tipo de switch
- Managed
- Agregación de enlaces
- Yes
- Auto MDI/MDI-X
- Yes
- Limitación de velocidad
- Yes
- Puertos en espejo
- Yes
- Frecuencia procesador
- 800 MHz
- Memoria de búfer de paquetes
- 1,5 MB
- Puertos Ethernet RJ-45 de conmutación básica
- 48
- Tipo de puertos Ethernet RJ-45 de conmutación básica
- Gigabit Ethernet (10/100/1000)
- Cantidad de ranuras para módulos SFP+
- 4
- Detección automática
- Yes
Referencias específicas
- ean13
- 0190017356112
- MPN
- JL685A#ABB
