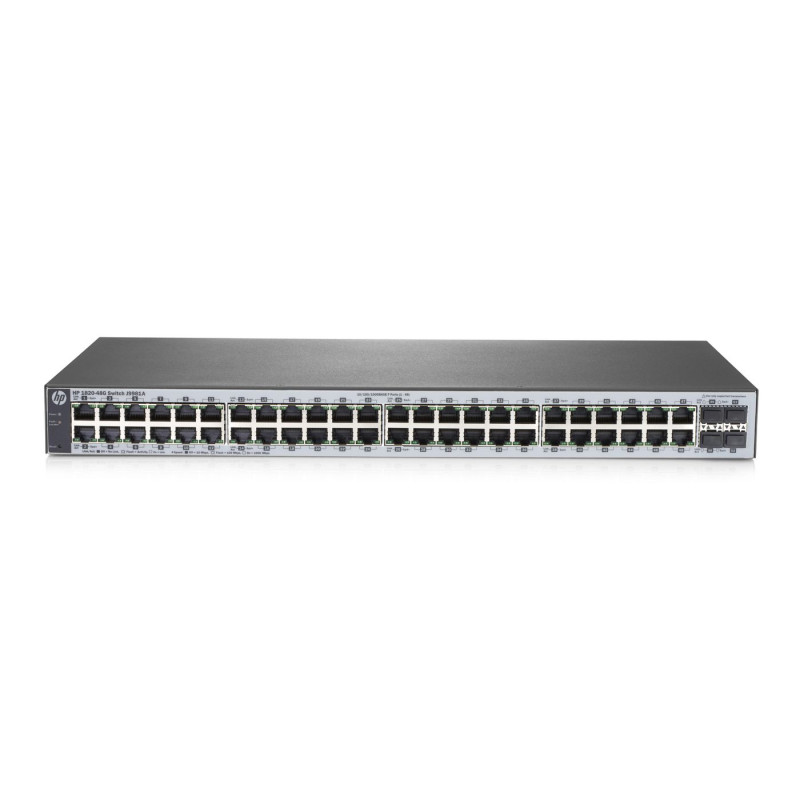

1820-48G Switch

The HPE 1820 Switch Series offers more choice and flexibility for smaller organizations that require ease of use and lower Total Cost of Ownership (TCO), while delivering better network performance. They are smart-managed, fixed configuration, Gigabit Ethernet Layer 2 switches in an easy-to-administer solution that have the latest energy-saving capabilities. These switches are plug-and-play out of the box, where network operation can be fine-tuned through features available from a simple Web browser-based GUI, when needed.

Features

Easy-to-Use, Simple to Deploy and Manage
- The HPE 1820 Switch Series features an intuitive Web management interface with an enhanced navigation pane for easy management of devices by non-technical users. The HPE 1820 Switch Series is ideal for organizations that require simplicity.
- The series gives you flexibility and choice with a complete portfolio. You get six rack-mountable models including three non-Power over Ethernet (PoE) models. Some models include SFP ports for fiber connectivity.
- Customizable features include VLANs, Spanning Tree, Link aggregation trunking, and IGMP Snooping. All models include Rapid Spanning Tree Protocol (RSTP) and DSCP QoS policies.
- These switches support flexible installation options, including mounting on walls, under tables or on desk tops.

Some models are of a fan-less design, making them quiet for office deployments. Energy Efficiency and Lower TCO
- The HPE 1820 Switch Series include the latest energy-savings capabilities, including Energy Efficient Ethernet (IEEE), idle-port power down and PoE Port Scheduler.
- The 8-port Gigabit Ethernet model can be powered by an upstream PoE switch for environments where no line power is available.

Quality of Service (QoS)
- The HPE 1820 Switch Series traffic prioritization provides time sensitive packets (like VoIP and video) with priority over other traffic based on DSCP or IEEE 802.1p classification. Packets are mapped to eight hardware queues for more effective throughput.
- Broadcast control allows limiting of broadcast traffic rate, to reduce unwanted network broadcast traffic.
- IEEE 802.11p/Q delivers data to devices based on the priority and type of traffic.

Capacidad	77,3 Mpps
Capacidad de conmutación	104 Gbit/s
Compatibilidad Jumbo frames	Yes
Latencia (1 Gbps)	2 µs
Latencia (10-100 Mbps)	7 µs
Memoria de búfer de paquetes	1,5 MB
Tabla de direcciones MAC	16000 entradas
Apilable	Yes
Certificación Energy Star	Yes
Color producto	Grey
Factor forma	1U
Montaje en rack	Yes
Capa switch	L2
Gestión basada en web	Yes
Soporte de calidad de servicio (QoS)	Yes
Tipo de switch	Managed
Agregación de enlaces	Yes
Auto MDI/MDI-X	Yes
Detección automática	Yes
Estándares de red	IEEE 802.3/IEEE 802.3ab/IEEE 802.3u
Full duplex	Yes
Protocolo de árbol de expansión	Yes
Puertos en espejo	Yes
Soporte 10G	No
Soporte de control de flujo	Yes
Soporte VLAN	Yes
Tecnología de cableado Ethernet de cobre	1000BASE-T/100BASE-TX/10BASE-T
Humedad relativa de almacenamiento (H-H)	15 - 95 %
Humedad relativa de funcionamiento (H-H)	15 - 95 %
Temperatura de almacenamiento (T-T)	-40 - 70 °C
Temperatura de funcionamiento (T-T)	0 - 40 °C
Frecuencia procesador	400 MHz
Memoria flash	16 MB
Memoria interna	128 MB
Modelo procesador	ARM Cortex-A9
Procesador integrado	Yes
Tipo de memoria	SDRAM
Cantidad de módulos SFP instalados	0
Cantidad de módulos SFP+ instalados	0
Cantidad de ranuras para módulos SFP	4
Puertos Ethernet RJ-45 de conmutación básica	48
Tipo de puertos Ethernet RJ-45 de conmutación básica	Gigabit Ethernet (10/100/1000)
Consumo de energía (típico)	39 W
Frecuencia de entrada AC	50 - 60 Hz
Fuente de alimentación	AC
Fuente de alimentación incluida	Yes
Voltaje de entrada AC	100 - 240 V
Alimentación PoE	No
Características DHCP	DHCP client
Compatibilidad SSH/SSL	Yes
IGMP snooping	Yes
Certificados de sostenibilidad	ENERGY STAR
Garantía	1 año
