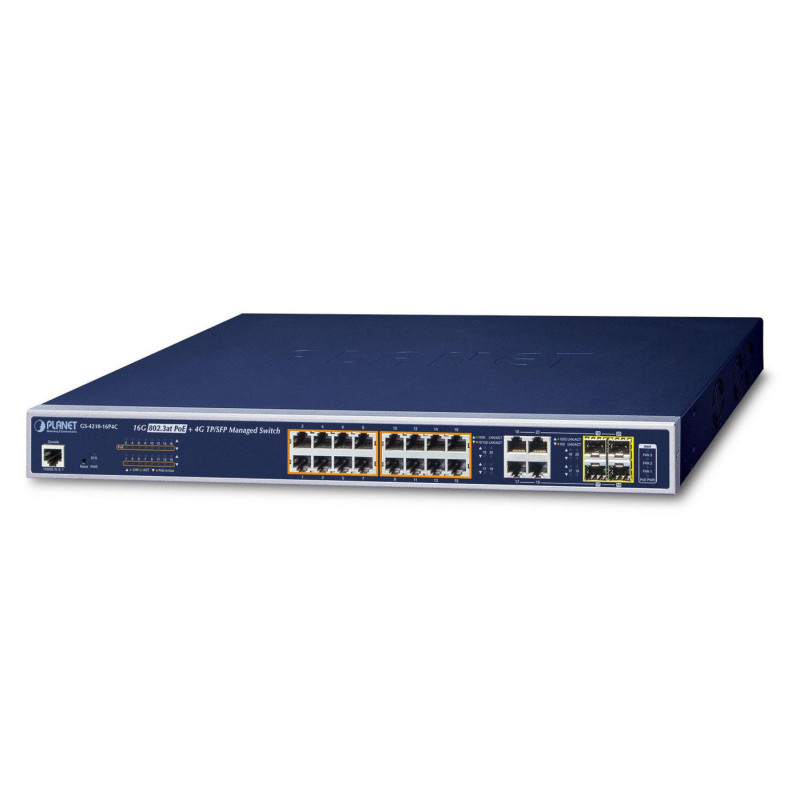

Planet IPv6/IPv4, 16-Port Managed - Ref. GS-4210-16P4C

A Perfect Managed PoE+ Switch with Advanced L2/L4 Switching and Security

The GS-4210-16P4C is s a cost-optimized, Gigabit PoE+ Managed Switch featuring PLANET intelligent PoE functions to improve the availability of critical business applications. It provides IPv6/IPv4 dual stack management and built-in L2/L4 Gigabit switching engine along with 16 10/100/1000BASE-T ports featuring 36-watt 802.3at PoE+ and 4 additional Gigabit TP/SFP combo ports. With a total power budget of up to 220 watts for different kinds of PoE applications, the GS-4210-16P4C provides a quick, safe and cost-effective Power over Ethernet network solution for small businesses and enterprises.


Cybersecurity Network Solution to Minimize Security Risks

The GS-4210-16P4C supports SSHv2 and TLS protocols to provide strong protection against advanced threats. It includes a range of cybersecurity features such as DHCP Snooping, IP Source Guard, dynamic ARP Inspection Protection, 802.1x port-based network access control, RADIUS and TACACS+ user accounts management, SNMPv3 authentication, and so on to complement it as an all-security solution.


Redundant Ring, Fast Recovery for Critical Network Applications

The GS-4210-16P4C supports redundant ring technology and features strong, rapid self-recovery capability to prevent interruptions and external intrusions. It incorporates advanced ITU-T G.8032 ERPS (Ethernet Ring Protection Switching) technology, Spanning Tree Protocol (802.1s MSTP) into customer’s network to enhance system reliability and uptime in various environments.


Built-in Unique PoE Functions for Powered Devices Management

As it is the managed PoE switch for surveillance, wireless and VoIP networks, the GS-4210-16P4C features the following special PoE management functions:

- PD Alive Check
- Scheduled Power Recycling
- PoE Schedule
- PoE Usage Monitoring
- PoE Extension


Intelligent Powered Device Alive-Check

The GS-4210-16P4C can be configured to monitor connected PD (powered device) status in real time via ping action. Once the PD stops working and responding, the GS-4210-16P4C will resume the PoE port power and bring the PD back to work. It will greatly enhance the network reliability through the PoE port resetting the PD’s power source, thus reducing the administrator’s management burden.


Scheduled Power Recycling

The GS-4210-16P4C allows each of the connected PoE IP cameras or PoE wireless access points to reboot at a specified time each week. Therefore, it will reduce the chance of IP camera or AP crash resulting from buffer overflow.


PoE Schedule for Energy Savings

Under the trend of energy savings worldwide and contributing to environmental protection, the GS-4210-16P4C can effectively control the power supply besides its capability of giving high watts power. The “PoE schedule” function helps you to enable or disable PoE power feeding for each PoE port during specified time intervals and it is a powerful function to help SMBs or enterprises save power and money. It also increases security by powering off PDs that should not be in use during non-business hours.


PoE Usage Monitoring

Via the power usage chart in the web management interface, the GS-4210-16P4C enables the administrator to monitor the status of the power usage of the connected PDs in real time. Thus, it greatly enhances the management efficiency of the facilities.


802.3at PoE+ Power and Ethernet Data Transmission Distance Extension

In the “Extend” operation mode, the GS-4210-16P4C operates on a per-port basis at 10Mbps duplex operation but can support 36-watt PoE power output over a distance of up to 250 meters overcoming the 100m limit on Ethernet UTP cable. With this brand-new feature, the GS-4210-16P4C provides an additional solution for 802.3at/af PoE distance extension, thus saving the cost of Ethernet cable installation.


Environmentally-friendly, Smart Fan Design for Silent Operation

The GS-4210-16P4C features a low noise design and an effective ventilation system. It supports the smart fan technology that automatically controls the speed of the built-in fan to reduce noise and maintain the temperature of the PoE switch for optimal power output capability. The GS-4210-16P4C is able to operate reliably, stably and quietly in any environment without affecting its performance.


IPv6/IPv4 Dual Stack Management

Supporting both IPv6 and IPv4 protocols, the GS-4210-16P4C helps the SMBs to step in the IPv6 era with the lowest investment as its network facilities need not be replaced or overhauled if the IPv6 FTTx edge network is set up.


Robust Layer 2 Features

Almacenar y reenviar	Yes
Capacidad	29,76 Mpps
Capacidad de conmutación	40 Gbit/s
Compatibilidad Jumbo frames	Yes
Marcos Jumbo	10000
Número de colas	8
Tabla de direcciones MAC	8000 entradas
Botón Reset	Yes
Certificación	FCC Part 15 Class A, CE
Color producto	Blue
Factor forma	1U
Indicadores LED	Yes
Material de la carcasa	Metal
Montaje en rack	Yes
Número de ventiladores	3 Ventilador(es)
Capa switch	L2/L4
Clasificación del tráfico	Yes
Gestión basada en web	Yes
Registro de eventos del sistema	Yes
Soporte de calidad de servicio (QoS)	Yes
Tipo de switch	Managed
Soporte multicast	Yes
Agregación de enlaces	Yes
Auto MDI/MDI-X	Yes
Características de LAN virtual	Private VLAN/Protocol-based VLAN/Tagged VLAN
Control broadcast storm	Yes
Full duplex	Yes
Limitación de velocidad	Yes
Número de VLANs	4094
Protocolo de árbol de expansión	Yes
Puertos en espejo	Yes
Soporte 10G	No
Soporte de control de flujo	Yes
Soporte VLAN	Yes
Tecnología de cableado Ethernet de cobre	1000BASE-T
Disipación de calor	982 BTU/h
Humedad relativa de almacenamiento (H-H)	5 - 95 %
Humedad relativa de funcionamiento (H-H)	5 - 95 %
Temperatura de almacenamiento (T-T)	-20 - 70 °C
Temperatura de funcionamiento (T-T)	0 - 50 °C
Firmware actualizable	Yes
Cantidad de ranuras para módulos SFP	4
Puerto consola	RJ-45
Puertos Ethernet RJ-45 de conmutación básica	20
Puertos Gigabit Ethernet (cobre)	16
Tipo de puertos Ethernet RJ-45 de conmutación básica	Gigabit Ethernet (10/100/1000)
Consumo de energía (máx.)	251 W
Frecuencia de entrada AC	50 - 60 Hz
Voltaje de entrada AC	100 - 240 V
Alimentación PoE	Yes
Cantidad puertos PoE	16
Presupuesto total alimentación PoE	220 W
Algoritmos de seguridad	802.1x RADIUS/SNMP/SNMPv3/SSH/SSL/TLS
Autenticación	Port-based authentication
Compatibilidad SSH/SSL	Yes
Filtrado de direcciones MAC	Yes
Filtrado/protección BPDU	Yes
IGMP snooping	Yes
Lista de control de acceso (ACL)	Yes
Garantía	3 años
