IPv4/IPv6, 16-P 10/100/1000Bas

Cost-Optimized Managed Switch for Small and Medium Businesses

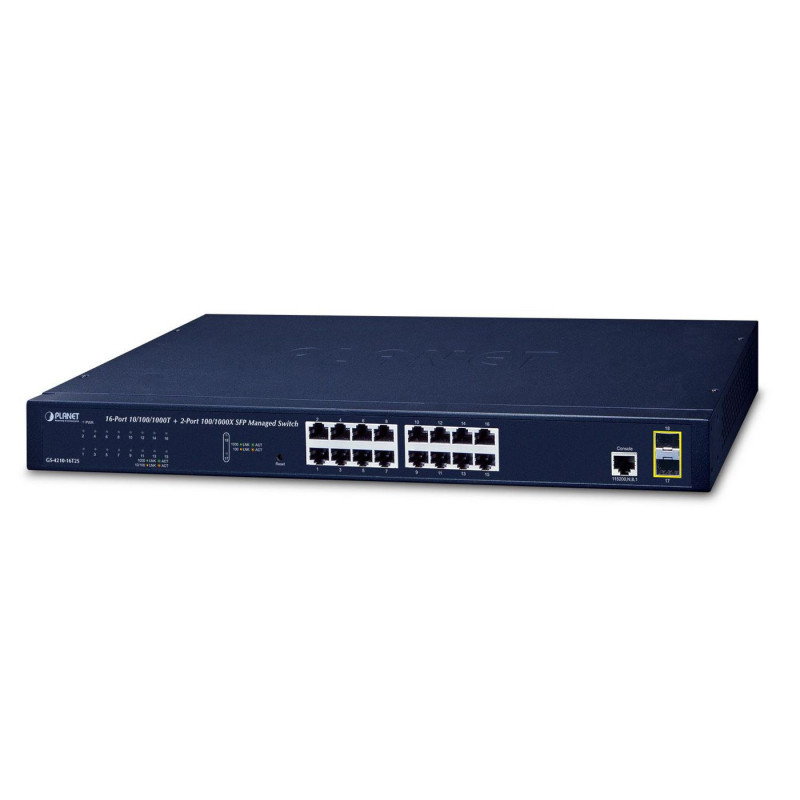

PLANET GS-4210-16T2S is an ideal Gigabit Switch which provides cost-effective advantage to local area network and is widely accepted in the SMB office network. It offers intelligent Layer 2 data packet switching and management functions,friendly web user interface and stable operation. Besides the hot IPv6 / IPv4 management and abundant L2 / L4 switching functions, the GS-4210-16T2S comes with fanless feature and green technology to provide a quiet, energy-saving, high-speed and reliable office network environment.
The GS-4210-16T2S is equipped with 16 10/100/1000BASE-T Gigabit Ethernet ports and 2 additional 100/1000BASE-X SFP interfaces with inner power system. It offers a rack-mountable, affordable, safe and reliable Gigabit network switch solution for SMBs deploying networks, or requiring enhanced data security and network traffic management.

Robust Layer 2 Features

The GS-4210-16T2S can be programmed for advanced switch management functions such as dynamic port link aggregation, 802.1Q VLAN and Q-in-Q VLAN, Multiple Spanning Tree protocol (MSTP), Loop and BPDU Guard, IGMP Snooping, and MLD Snooping. Via the link aggregation, the GS-4210-16T2S allows the operation of a high-speed trunk to combine with multiple ports such as a 16Gbps fat pipe, and supports fail-over as well. Also, the Link Layer Discovery Protocol (LLDP) is the Layer 2 protocol included to help discover basic information about neighboring devices on the local broadcast domain.

Efficient Traffic Control

The GS-4210-16T2S is loaded with robust QoS features and powerful traffic management to enhance services to business-class data, voice, and video solutions. The functionality includes broadcast / multicast / unicast storm control, per port bandwidth control, 802.1p / CoS / IP DSCP QoS priority and remarking. It guarantees the best performance at VoIP and video stream transmission, and empowers the enterprises to take full advantage of the limited network resources.

Enhanced and Secure Management

For efficient management, the GS-4210-16T2S is equipped with console, Web, Telnet and SNMP management interfaces. With the built-in Web-based management interface, the GS-4210-16T2S offers an easy-to-use, platform-independent management and configuration facility. By supporting standard Simple Network Management Protocol (SNMP), the switch can be managed via any standard management software. For text-based management, the switch can be accessed via Telnet and the console port. Moreover, the GS-4210-16T2S offers secure remote management by supporting HTTPS and SNMP v3 connections which encrypt the packet content at each session.

Powerful Security

PLANET GS-4210-16T2S offers comprehensive IPv4 / IPv6 Layer 2 to Layer 4 Access Control List (ACL) for enforcing security to the edge. It can be used to restrict network access by denying packets based on source and destination IP address, TCP/UDP ports or defined typical network applications. Its protection mechanism also comprises 802.1X port-based authentication, which can be deployed with RADIUS to ensure the port level security and block illegal users. With the protected port function, communication between edge ports can be prevented to guarantee user privacy. Furthermore, port security function allows limiting the number of network devices on a given port.

Advanced Network Security

The GS-4210-16T2S also provides DHCP snooping, IP source guard and dynamic ARP inspection functions to prevent IP snooping from attack and discard ARP packets with invalid MAC address. The network administrators can now construct highly-secured corporate networks with considerably less time and effort than before.

Flexible Extension Solution

The two mini-GBIC slots built in the GS-4210-16T2S are compatible with the 100BASE-FX / 1000BASE-SX/LX SFP (Small Form-factor Pluggable) fiber transceiver to uplink to backbone switch and monitor center in long distance. The distance can be extended from 550 meters to 2km (multi-mode fiber) up to above 10/20/30/40/50/60/70/120 kilometers (single-mode fiber or WDM fiber). They are well suited for applications within the enterprise data centers and distributions.

Fanless Design

Adopting the latest chip process and green technology, the GS-4210-16T2S successfully reduces substantial power consumption with the fanless and noiseless design collocating with the effective cooler. Therefore, the GS-4210-16T2S is able to operate stably and quietly in any environment without affecting its performance.

Almacenar y reenviar	Yes
Capacidad	26,7 Mpps
Capacidad de conmutación	36 Gbit/s
Compatibilidad Jumbo frames	Yes
Marcos Jumbo	9216
Tabla de direcciones MAC	8000 entradas
Botón Reset	Yes
Certificación	FCC, CE
Color producto	Blue
Factor forma	1U
Indicadores LED	Yes
Material de la carcasa	Metal
Montaje en rack	Yes
Capa switch	L2/L4
Clasificación del tráfico	Yes
Gestión basada en web	Yes
Inspección ARP	Yes
Registro de eventos del sistema	Yes
Soporte de calidad de servicio (QoS)	Yes
Tipo de switch	Managed
Soporte multicast	Yes
Agregación de enlaces	Yes
Auto MDI/MDI-X	Yes
Características de LAN virtual	Private VLAN/Protocol-based VLAN/Stacked VLAN/Tagged VLAN
Compatible con aprendizaje automático de dirección MAC	Yes
Compatible con envejecimiento automático de dirección MAC	Yes
Control broadcast storm	Yes
Full duplex	Yes
Limitación de velocidad	Yes
Número de VLANs	4094
Protocolo de árbol de expansión	Yes
Puertos en espejo	Yes
Soporte 10G	No
Soporte de control de flujo	Yes
Soporte VLAN	Yes
Tecnología de cableado Ethernet de cobre	1000BASE-T/100BASE-TX/10BASE-T
Disipación de calor	35 BTU/h
Humedad relativa de almacenamiento (H-H)	5 - 95 %
Humedad relativa de funcionamiento (H-H)	5 - 95 %
Temperatura de almacenamiento (T-T)	-10 - 70 °C
Temperatura de funcionamiento (T-T)	0 - 50 °C
Tecnología de cableado fibra Ethernet	1000BASE-X
Firmware actualizable	Yes
Cantidad de módulos SFP instalados	0
Cantidad de módulos SFP+ instalados	0
Cantidad de ranuras para módulos SFP	2
Puerto consola	RJ-45
Puertos Ethernet RJ-45 de conmutación básica	16
Puertos Gigabit Ethernet (cobre)	16
Tipo de puertos Ethernet RJ-45 de conmutación básica	Gigabit Ethernet (10/100/1000)
Consumo de energía (máx.)	10,4 W
Corriente de entrada	0.8 A
Frecuencia de entrada AC	50 - 60 Hz
Voltaje de entrada AC	100 - 240 V
Alimentación PoE	No
Protocolos de gestión	web, telnet, SNMP
Protocolos de red soportados	IPv4 / IPv6
Algoritmos de seguridad	802.1x RADIUS/HTTPS/SSH/SSL/TLS
Autenticación	Port-based authentication
Enlace IP-MAC-Port	Yes
Filtrado de direcciones MAC	Yes
Filtrado/protección BPDU	Yes
IGMP snooping	Yes
Lista de control de acceso (ACL)	Yes
Protección de bucle	Yes
Garantía	3 años

Características principales

• Gestión: Managed
• Capa: L2/L4
• Capacidad de conmutación: 36 Gbit/s
• Tabla MAC: 8000 entradas
• VLAN: 4094 VLAN
• Montaje: 1U
