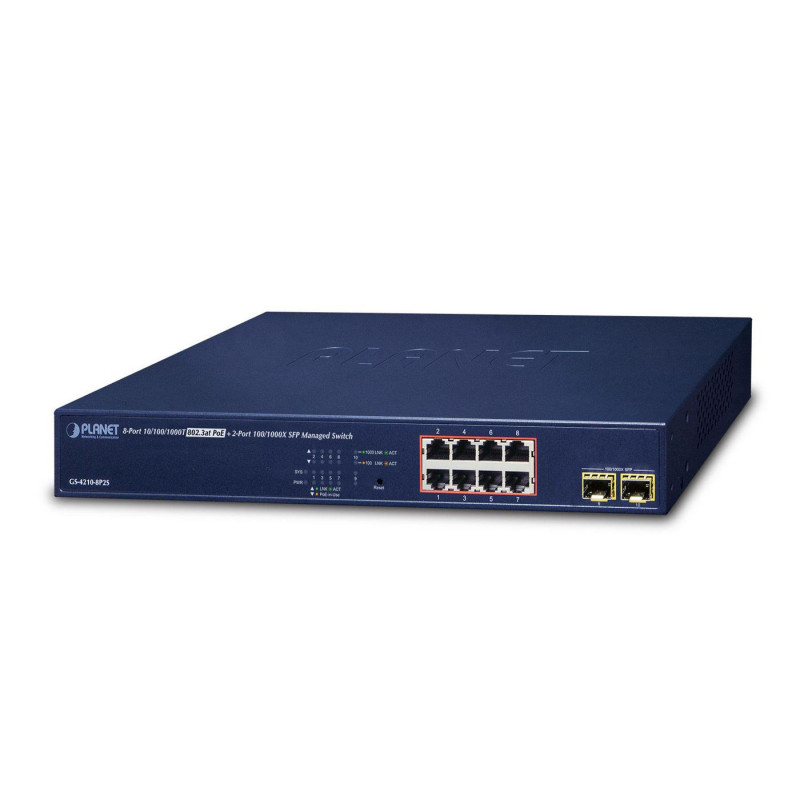

Planet IPv4/IPv6, 8-Port Managed - Ref. GS-4210-8P2S

A Perfect Managed PoE+ Switch with Advanced L2/L4 Switching and Security

PLANET GS-4210-8P2S is a cost-optimized, desktop-size Managed Gigabit PoE+ Switch featuring PLANET intelligent PoE functions to improve the availability of critical business applications. It provides IPv6/IPv4 dual stack management and built-in L2/L4 Gigabit switching engine along with 8 10/100/1000BASE-T ports featuring 36-watt 802.3at PoE+ and 2 additional Gigabit SFP slots. With a total power budget of up to 120 watts for different kinds of PoE applications, it provides a quick, safe and cost-effective Power over Ethernet network solution for small businesses and enterprises.


Cybersecurity Network Solution to Minimize Security Risks

The cybersecurity feature that virtually needs no effort and cost to have includes the protection of the switch management and the enhanced security of the mission-critical network. Both SSH and TLS protocols are utilized to provide strong protection against advanced threats.


Built-in Unique PoE Functions for Powered Devices Management

As it is the managed PoE switch for surveillance, wireless and VoIP networks, the GS-4210-8P2S features the following special PoE management functions:

- PD Alive Check
- Scheduled Power Recycling
- PoE Schedule
- PoE Usage Monitoring
- PoE Extension


Intelligent Powered Device Alive-Check

The GS-4210-8P2S can be configured to monitor connected PD (powered device) status in real time via ping action. Once the PD stops working and responding, the GS-4210-8P2S will resume the PoE port power and bring the PD back to work. It will greatly enhance the network reliability through the PoE port resetting the PD’s power source, thus reducing the administrator’s management burden.


Scheduled Power Recycling

The GS-4210-8P2S allows each of the connected PoE IP cameras or PoE wireless access points to reboot at a specified time each week. Therefore, it will reduce the chance of IP camera or AP crash resulting from buffer overflow.


PoE Schedule for Energy Savings

Under the trend of energy savings worldwide and contributing to environmental protection, the GS-4210-8P2S can effectively control the power supply besides its capability of giving high watts power. The “PoE schedule” function helps you to enable or disable PoE power feeding for each PoE port during specified time intervals and it is a powerful function to help SMBs or enterprises save power and money. It also increases security by powering off PDs that should not be in use during non-business hours.


PoE Usage Monitoring

Via the power usage chart in the web management interface, the GS-4210-8P2S enables the administrator to monitor the status of the power usage of the connected PDs in real time. Thus, it greatly enhances the management efficiency of the facilities.


802.3at PoE+ Power and Ethernet Data Transmission Distance Extension

In the “Extend” operation mode, the GS-4210-8P2S operates on a per-port basis at 10Mbps duplex operation but can support 36-watt PoE power output over a distance of up to 250 meters overcoming the 100m limit on Ethernet UTP cable. With this brand-new feature, the GS-4210-8P2S provides an additional solution for 802.3at/af PoE distance extension, thus saving the cost of Ethernet cable installation.


Environmentally-friendly, Smart Fan Design for Silent Operation

The GS-4210-8P2S features a desktop-sized metal housing, a low noise design and an effective ventilation system. It supports the smart fan technology that automatically controls the speed of the built-in fan to reduce noise and maintain the temperature of the PoE switch for optimal power output capability. The GS-4210-8P2S is able to operate reliably, stably and quietly in any environment without affecting its performance.


IPv6/IPv4 Dual Stack Management

Supporting both IPv6 and IPv4 protocols, the GS-4210-8P2S helps the SMBs to step in the IPv6 era with the lowest investment as its network facilities need not be replaced or overhauled if the IPv6 FTTx edge network is set up.


Robust Layer 2 Features

The GS-4210-8P2S can be programmed for advanced switch management functions such as dynamic port link aggregation, 802.1Q VLAN and Q-in-Q VLAN, Multiple Spanning Tree protocol (MSTP), loop and BPDU guard, IGMP snooping, and MLD snooping. Via the link aggregation, the GS-4210-8P2S allows the operation of a high-speed trunk to combine with multiple ports, and supports fail-over as well. Also, the Link Layer Discovery Protocol (LLDP) is the Layer 2 protocol included to help discover basic information about neighboring devices on the local broadcast domain.


Efficient Traffic Control

Capacidad	14,88 Mpps
Capacidad de conmutación	20 Gbit/s
Tabla de direcciones MAC	8000 entradas
Apilable	No
Color producto	Blue
Factor forma	1U
Indicadores LED	Yes
Material de la carcasa	Metal
Montaje en rack	Yes
Seguridad	FCC Part 15 Class A, CE, LVD
Soporte de calidad de servicio (QoS)	Yes
Tipo de switch	Managed
Full duplex	Yes
Semidúplex	Yes
Soporte 10G	No
Humedad relativa de almacenamiento (H-H)	5 - 95 %
Humedad relativa de funcionamiento (H-H)	5 - 95 %
Temperatura de almacenamiento (T-T)	-20 - 70 °C
Temperatura de funcionamiento (T-T)	0 - 50 °C
Tamaño del búfer	512,5 KB
Cantidad de módulos SFP instalados	2
Cantidad de ranuras para módulos SFP	2
Puertos Ethernet RJ-45 de conmutación básica	8
Tipo de puertos Ethernet RJ-45 de conmutación básica	Gigabit Ethernet (10/100/1000)
Consumo de energía (típico)	165 W
Frecuencia de entrada AC	50 - 60 Hz
Voltaje de entrada AC	100 - 240 V
Alimentación PoE	Yes
Cantidad puertos PoE	8
Presupuesto total alimentación PoE	120 W
Garantía	3 años
