5-P 10/100/1000Mbps Gigabit
32,85 €
27,15 € sin IVA
Impuestos incluidos

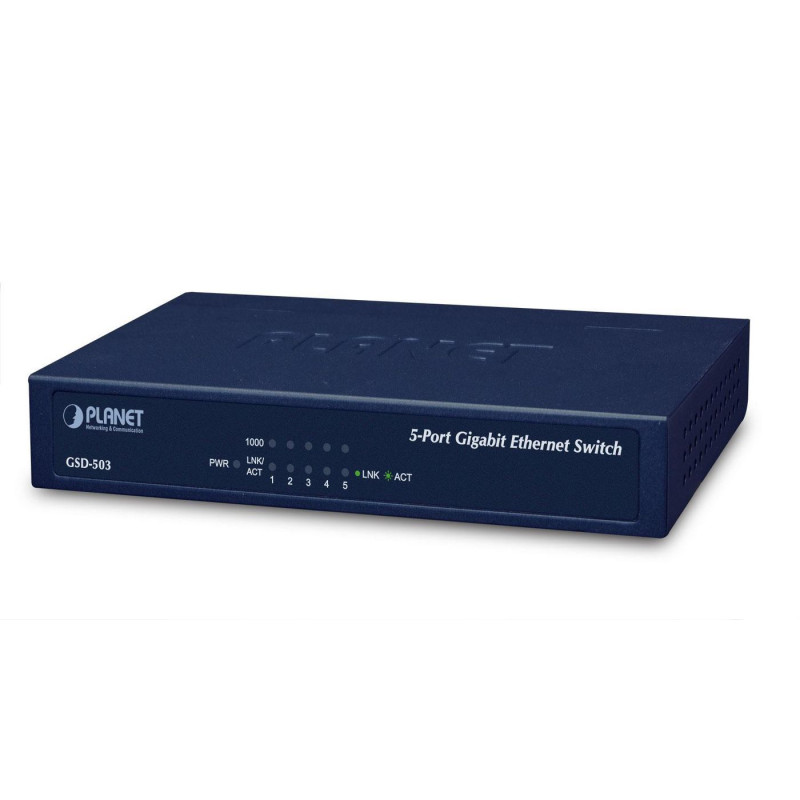

5-P 10/100/1000Mbps Gigabit. Producto Planet.
Pago 100% seguro
Tarjeta (RedSys) y transferencia bancaria
Envíos y plazos
Envío 12,04 € (IVA inc.) · GRATIS a partir de 299 €
Devoluciones en 14 días
Devolución fácil y sin complicaciones
Factura de empresa
IVA desglosado y factura oficial en cada compra
Optimal Solution for Energy Saving and Gigabit High Performance
PLANET Green Networking Switch - GSD-503 is an ideal solution in line with the energy-saving trend worldwide. The GSD-503 is a 5-port Gigabit Ethernet Switch bringing both benefits of energy saving and Gigabit wire speed performance. It is specially designed for home networking, SOHOs and enterprises.
Energy Saving
The GSD-503 incorporates two advanced Green Networking technologies and is able to provide power saving up to 40% less energy but maintains high performance efficiently.
(1) Hibernation Link Down power saving
The Hibernation Link Down power saving goes beyond IEEE specifications to automatically lower power for a given port when it is not linked. With the Hibernation Link Down power saving technology, the GSD-503 will automatically adjust power usage of the ports that are shut down or not connected to network device.
(2) Intelligent scales power based on cable length
Intelligent scales power, the other technology adopted, is an intelligent algorithm that actively determines the appropriate power level based on cable length. When the GSD-503 is connected with Ethernet cable shorter than 20m, a device can obtain maximum power saving because the GSD-503 would automatically detect the Ethernet cable length and diminish power usage. The connected device can substantially reduce the overall power consumption, which makes a significant contribution to energy saving.
Leading Home, SOHO and Workgroup Users to High-speed Networking Generation
The GSD-503 is designed with modern metal compact housing and easy for deployment of high speed Gigabit networking in home or SOHO applications. Providing 10Gbps internal switching fabric, the GSD-503 can handle an extremely large amount of data in a secure topology linking to a backbone or high capacity servers. The GSD-503 provides 2K MAC address table, and offers wire-speed packet transfer performance without risk of packet loss. The high data throughput of the device makes it ideal for most Gigabit environments, especially for the network to be upgraded to a Gigabit environment.
Plug & Play
All RJ-45 copper interfaces of the GSD-503 support 10/100/1000Mbps auto-negotiation for optimal speed detection through RJ-45 Category 5, 5e or 6 cables. They support standard auto-MDI/MDI-X feature which can detect the type of connection to any Ethernet device without requiring special straight or crossover cables.
PLANET Green Networking Switch - GSD-503 is an ideal solution in line with the energy-saving trend worldwide. The GSD-503 is a 5-port Gigabit Ethernet Switch bringing both benefits of energy saving and Gigabit wire speed performance. It is specially designed for home networking, SOHOs and enterprises.
Energy Saving
The GSD-503 incorporates two advanced Green Networking technologies and is able to provide power saving up to 40% less energy but maintains high performance efficiently.
(1) Hibernation Link Down power saving
The Hibernation Link Down power saving goes beyond IEEE specifications to automatically lower power for a given port when it is not linked. With the Hibernation Link Down power saving technology, the GSD-503 will automatically adjust power usage of the ports that are shut down or not connected to network device.
(2) Intelligent scales power based on cable length
Intelligent scales power, the other technology adopted, is an intelligent algorithm that actively determines the appropriate power level based on cable length. When the GSD-503 is connected with Ethernet cable shorter than 20m, a device can obtain maximum power saving because the GSD-503 would automatically detect the Ethernet cable length and diminish power usage. The connected device can substantially reduce the overall power consumption, which makes a significant contribution to energy saving.
Leading Home, SOHO and Workgroup Users to High-speed Networking Generation
The GSD-503 is designed with modern metal compact housing and easy for deployment of high speed Gigabit networking in home or SOHO applications. Providing 10Gbps internal switching fabric, the GSD-503 can handle an extremely large amount of data in a secure topology linking to a backbone or high capacity servers. The GSD-503 provides 2K MAC address table, and offers wire-speed packet transfer performance without risk of packet loss. The high data throughput of the device makes it ideal for most Gigabit environments, especially for the network to be upgraded to a Gigabit environment.
Plug & Play
All RJ-45 copper interfaces of the GSD-503 support 10/100/1000Mbps auto-negotiation for optimal speed detection through RJ-45 Category 5, 5e or 6 cables. They support standard auto-MDI/MDI-X feature which can detect the type of connection to any Ethernet device without requiring special straight or crossover cables.
| Almacenar y reenviar | Yes |
| Capacidad | 7,44 Mpps |
| Capacidad de conmutación | 10 Gbit/s |
| Compatibilidad Jumbo frames | Yes |
| Marcos Jumbo | 9000 |
| Tabla de direcciones MAC | 2000 entradas |
| Certificación | FCC, CE |
| Color producto | Blue |
| Indicadores LED | Yes |
| Interruptor de encendido/apagado | Yes |
| Material de la carcasa | Metal |
| Montaje a pared | Yes |
| Montaje en rack | No |
| Capa switch | L2 |
| Tipo de switch | Unmanaged |
| Auto MDI/MDI-X | Yes |
| Compatible con aprendizaje automático de dirección MAC | Yes |
| Compatible con envejecimiento automático de dirección MAC | Yes |
| Estándares de red | IEEE 802.3/IEEE 802.3ab/IEEE 802.3az/IEEE 802.3u/IEEE 802.3x |
| Full duplex | Yes |
| Negociación automática | Yes |
| Soporte 10G | No |
| Soporte de control de flujo | Yes |
| Tecnología de cableado Ethernet de cobre | 1000BASE-T/100BASE-TX/10BASE-T |
| Disipación de calor | 11 BTU/h |
| Humedad relativa de almacenamiento (H-H) | 5 - 95 % |
| Humedad relativa de funcionamiento (H-H) | 5 - 95 % |
| Temperatura de almacenamiento (T-T) | -10 - 70 °C |
| Temperatura de funcionamiento (T-T) | 0 - 50 °C |
| Adaptador AC incluido | Yes |
| Cantidad de módulos SFP instalados | 0 |
| Cantidad de módulos SFP+ instalados | 0 |
| Conector de alimentación | DC-in jack |
| Puertos Ethernet RJ-45 de conmutación básica | 5 |
| Puertos Gigabit Ethernet (cobre) | 5 |
| Tipo de puertos Ethernet RJ-45 de conmutación básica | Gigabit Ethernet (10/100/1000) |
| Compatibilidad con fuentes de alimentación redundantes (RPS) | No |
| Consumo de energía (máx.) | 3,3 W |
| Corriente de entrada | 1 A |
| Corriente de salida | 1 A |
| Fuente de alimentación incluida | Yes |
| Número de fuentes de alimentación | 1 |
| Voltaje de entrada DC | 5 V |
| Voltaje de salida | 5 V |
| Alimentación PoE | No |
| Protocolos de red soportados | CSMA / CD |
| Garantía | 3 años |
Características principales
- Puertos: 5 puertos
- Tipo de puertos: Gigabit Ethernet (10/100/1000)
- Gestión: Unmanaged
- Capa: L2
- Capacidad de conmutación: 10 Gbit/s
- Tabla MAC: 2000 entradas
- Montaje: No
MP-554072
17 unidades
Ficha técnica
- Estándares de red
- IEEE 802.3/IEEE 802.3ab/IEEE 802.3az/IEEE 802.3u/IEEE 802.3x
- Soporte 10G
- No
- Tecnología de cableado ethernet de cobre
- 1000BASE-T/100BASE-TX/10BASE-T
- Soporte de control de flujo
- Yes
- Tabla de direcciones MAC
- 2000 entradas
- Capacidad de conmutación
- 10 Gbit/s
- Montaje en rack
- No
- Indicadores LED
- Yes
- Certificación
- FCC, CE
- Corriente de entrada
- 1 A
- Corriente de salida
- 1 A
- Capacidad
- 7,44 Mpps
- Adaptador AC incluido
- Yes
- Material de la carcasa
- Metal
- Color producto
- Blue
- Humedad relativa de almacenamiento (H-H)
- 5 - 95 %
- Humedad relativa de funcionamiento (H-H)
- 5 - 95 %
- Temperatura de almacenamiento (T-T)
- -10 - 70 °C
- Temperatura de funcionamiento (T-T)
- 0 - 50 °C
- Interruptor de encendido/apagado
- Yes
- Full duplex
- Yes
- Consumo de energía (máx.)
- 3,3 W
- Montaje a pared
- Yes
- Compatibilidad Jumbo frames
- Yes
- Capa switch
- L2
- Tipo de switch
- Unmanaged
- Auto MDI/MDI-X
- Yes
- Cantidad de módulos SFP instalados
- 0
- Puertos Ethernet RJ-45 de conmutación básica
- 5
- Tipo de puertos Ethernet RJ-45 de conmutación básica
- Gigabit Ethernet (10/100/1000)
- Cantidad de módulos SFP+ instalados
- 0
- Conector de alimentación
- DC-in jack
- Marcos Jumbo
- 9000
- Almacenar y reenviar
- Yes
- Negociación automática
- Yes
- Compatible con aprendizaje automático de dirección MAC
- Yes
- Compatible con envejecimiento automático de dirección MAC
- Yes
- Compatibilidad con fuentes de alimentación redundantes (RPS)
- No
- Disipación de calor
- 11 BTU/h
- Puertos Gigabit Ethernet (cobre)
- 5
Referencias específicas
- ean13
- 4711213682339
- MPN
- GSD-503
