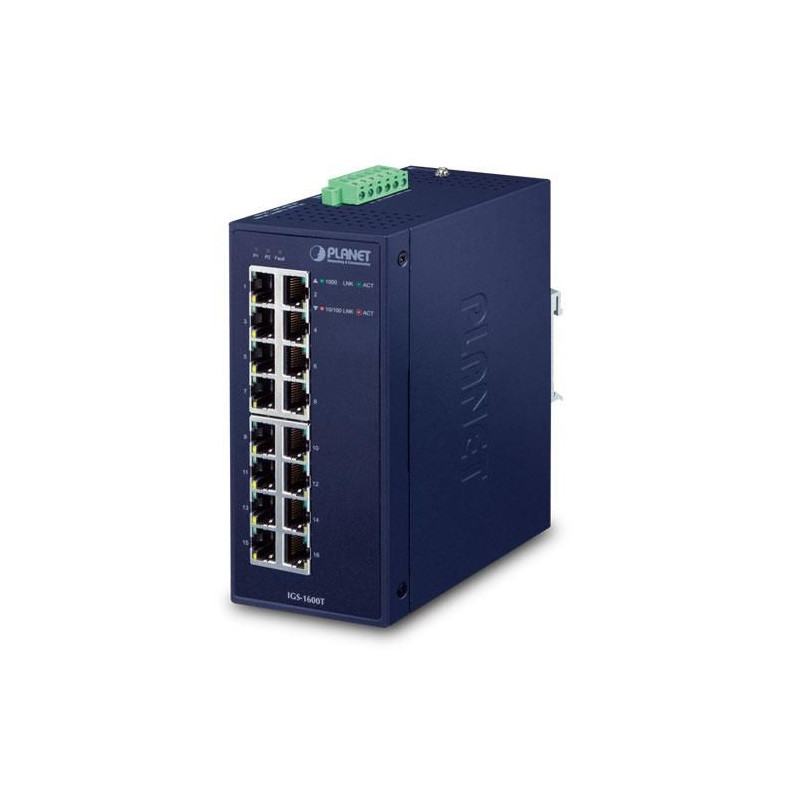

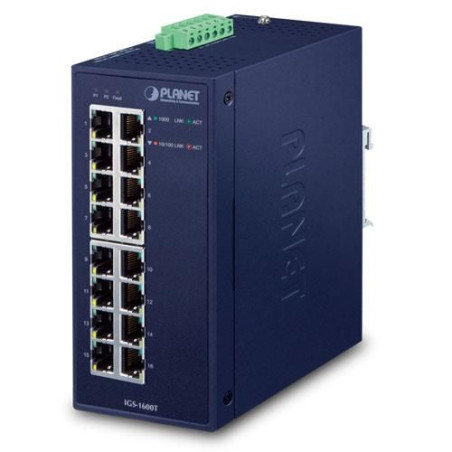

IP30 Industrial 16-Port - Ref. IGS-1600T
400,64 €
331,11 € sin IVA
Impuestos incluidos
IP30 Industrial 16-Port. Producto Planet.
Pago 100% seguro
Tarjeta (RedSys) y transferencia bancaria
Envíos y plazos
Envío 12,04 € (IVA inc.) · GRATIS a partir de 299 €
Devoluciones en 14 días
Devolución fácil y sin complicaciones
Factura de empresa
IVA desglosado y factura oficial en cada compra
PLANET IGS-1600T Industrial high-density 16-port 10/100/1000T Gigabit Ethernet Switch is equipped with a rugged IP30 metal case for stable operation in heavy industrial demanding environments. Thus, the IGS-1600T provides a high level of immunity against electromagnetic interference and heavy electrical surges which are usually found on plant floors or in curbside traffic control cabinets.
Industrial-grade, Flexible and Environmentally-hardened Design
The IGS-1600T possesses an integrated power supply source with a wide range of voltages (12 to 48V DC or 24V AC) for worldwide high availability applications requiring dual or backup power inputs. Being able to operate under wide temperature range from -40 to 75 degrees C, the IGS-1600T can be placed in almost any difficult environment. The IGS-1600T also allows either DIN rail or wall mounting for efficient use of cabinet space.
Robust Protection
The IGS-1600T provides a contact discharge of ±6KV DC and air discharge of ±6KV DC for Ethernet ESD protection. It also supports ±6KV surge immunity to improve product stability and protects users’ networks from devastating ESD attacks, making sure the flow of operation does not fluctuate.
Dual Power Input for High Availability Network System
The IGS-1600T features a strong dual power input system with wide-ranging voltages (12V~48V DC or 24V AC) incorporated into customer’s automation network to enhance system reliability and uptime. In the example below, when power supply 1 fails to work, the hardware failover function will be activated automatically to keep powering the IGS-1600T via power supply 2 alternatively without any loss of operation.
Energy Savings
The IGS-1600T, integrated with advanced green networking technologies and IEEE 802.3az protocol based power savings, is able to provide power savings of up to 50% but maintain high performance efficiently.
- Link Down power savings
The Link Down power savings goes beyond IEEE specifications to automatically lower power consumption for a given port when it is not linked. With the Link Down power saving technology, the IGS-1600T will automatically adjust power usage of the ports that are shut down or not connected to network device.
- Intelligent power scale based on cable length
Intelligent power scale is an intelligent algorithm that actively determines the appropriate power level based on cable length. When the IGS-1600T is connected with Ethernet cable shorter than 20m, a device can obtain maximum power savings because the IGS-1600T would automatically detect the Ethernet cable length and diminish power usage. The connected device can substantially reduce the overall power consumption, which makes a significant contribution to energy savings.
Industrial-grade, Flexible and Environmentally-hardened Design
The IGS-1600T possesses an integrated power supply source with a wide range of voltages (12 to 48V DC or 24V AC) for worldwide high availability applications requiring dual or backup power inputs. Being able to operate under wide temperature range from -40 to 75 degrees C, the IGS-1600T can be placed in almost any difficult environment. The IGS-1600T also allows either DIN rail or wall mounting for efficient use of cabinet space.
Robust Protection
The IGS-1600T provides a contact discharge of ±6KV DC and air discharge of ±6KV DC for Ethernet ESD protection. It also supports ±6KV surge immunity to improve product stability and protects users’ networks from devastating ESD attacks, making sure the flow of operation does not fluctuate.
Dual Power Input for High Availability Network System
The IGS-1600T features a strong dual power input system with wide-ranging voltages (12V~48V DC or 24V AC) incorporated into customer’s automation network to enhance system reliability and uptime. In the example below, when power supply 1 fails to work, the hardware failover function will be activated automatically to keep powering the IGS-1600T via power supply 2 alternatively without any loss of operation.
Energy Savings
The IGS-1600T, integrated with advanced green networking technologies and IEEE 802.3az protocol based power savings, is able to provide power savings of up to 50% but maintain high performance efficiently.
- Link Down power savings
The Link Down power savings goes beyond IEEE specifications to automatically lower power consumption for a given port when it is not linked. With the Link Down power saving technology, the IGS-1600T will automatically adjust power usage of the ports that are shut down or not connected to network device.
- Intelligent power scale based on cable length
Intelligent power scale is an intelligent algorithm that actively determines the appropriate power level based on cable length. When the IGS-1600T is connected with Ethernet cable shorter than 20m, a device can obtain maximum power savings because the IGS-1600T would automatically detect the Ethernet cable length and diminish power usage. The connected device can substantially reduce the overall power consumption, which makes a significant contribution to energy savings.
| Almacenar y reenviar | Yes |
| Capacidad | 23,81 Mpps |
| Capacidad de conmutación | 32 Gbit/s |
| Compatibilidad Jumbo frames | Yes |
| Marcos Jumbo | 10000 |
| Memoria de búfer de paquetes | 4,1 MB |
| Tabla de direcciones MAC | 8000 entradas |
| Certificación | FCC 15 A, CE/IEC60068-2-32, IEC60068-2-27, IEC60068-2-6 |
| Código de protección (IP) | IP30 |
| Color producto | Blue |
| Material de la carcasa | Metal |
| Montaje a pared | Yes |
| Montaje en carril DIN | Yes |
| Capa switch | L2 |
| Tipo de switch | Unmanaged |
| Auto MDI/MDI-X | Yes |
| Compatible con aprendizaje automático de dirección MAC | Yes |
| Compatible con envejecimiento automático de dirección MAC | Yes |
| Estándares de red | IEEE 802.1p/IEEE 802.3/IEEE 802.3ab/IEEE 802.3az/IEEE 802.3u/IEEE 802.3x |
| Full duplex | Yes |
| Negociación automática | Yes |
| Soporte 10G | No |
| Soporte de control de flujo | Yes |
| Tecnología de cableado Ethernet de cobre | 1000BASE-T/100BASE-TX/10BASE-T |
| Humedad relativa de funcionamiento (H-H) | 5 - 95 % |
| Temperatura de almacenamiento (T-T) | -40 - 85 °C |
| Temperatura de funcionamiento (T-T) | -40 - 75 °C |
| Cantidad de módulos SFP instalados | 0 |
| Cantidad de módulos SFP+ instalados | 0 |
| Puertos Ethernet RJ-45 de conmutación básica | 16 |
| Tipo de puertos Ethernet RJ-45 de conmutación básica | Gigabit Ethernet (10/100/1000) |
| Consumo de energía (máx.) | 8,7 W |
| Voltaje de entrada DC | 12 - 48 V |
| Alimentación PoE | No |
| Garantía | 5 años |
Características principales
- Puertos: 16 puertos
- Tipo de puertos: Gigabit Ethernet (10/100/1000)
- Gestión: Unmanaged
- Capa: L2
- Presupuesto PoE: No
- Capacidad de conmutación: 32 Gbit/s
- Tabla MAC: 8000 entradas
- Garantía: 5 años
MP-607759
2 unidades
Ficha técnica
- Estándares de red
- IEEE 802.1p/IEEE 802.3/IEEE 802.3ab/IEEE 802.3az/IEEE 802.3u/IEEE 802.3x
- Soporte 10G
- No
- Tecnología de cableado ethernet de cobre
- 1000BASE-T/100BASE-TX/10BASE-T
- Soporte de control de flujo
- Yes
- Tabla de direcciones MAC
- 8000 entradas
- Capacidad de conmutación
- 32 Gbit/s
- Certificación
- FCC 15 A, CE/IEC60068-2-32, IEC60068-2-27, IEC60068-2-6
- Capacidad
- 23,81 Mpps
- Material de la carcasa
- Metal
- Voltaje de entrada DC
- 12 - 48 V
- Montaje en carril DIN
- Yes
- Número de puertos
- 16
- Garantía
- 5 años
- Color producto
- Blue
- Humedad relativa de funcionamiento (H-H)
- 5 - 95 %
- Temperatura de almacenamiento (T-T)
- -40 - 85 °C
- Temperatura de funcionamiento (T-T)
- -40 - 75 °C
- Full duplex
- Yes
- Alimentación PoE
- No
- Consumo de energía (máx.)
- 8,7 W
- Montaje a pared
- Yes
- Compatibilidad Jumbo frames
- Yes
- Capa switch
- L2
- Tipo de switch
- Unmanaged
- Auto MDI/MDI-X
- Yes
- Cantidad de módulos SFP instalados
- 0
- Memoria de búfer de paquetes
- 4,1 MB
- Puertos Ethernet RJ-45 de conmutación básica
- 16
- Tipo de puertos Ethernet RJ-45 de conmutación básica
- Gigabit Ethernet (10/100/1000)
- Cantidad de módulos SFP+ instalados
- 0
- Código de protección (IP)
- IP30
- Marcos Jumbo
- 10000
- Almacenar y reenviar
- Yes
- Negociación automática
- Yes
- Compatible con aprendizaje automático de dirección MAC
- Yes
- Compatible con envejecimiento automático de dirección MAC
- Yes
Referencias específicas
- ean13
- 4711605284882
- MPN
- IGS-1600T
