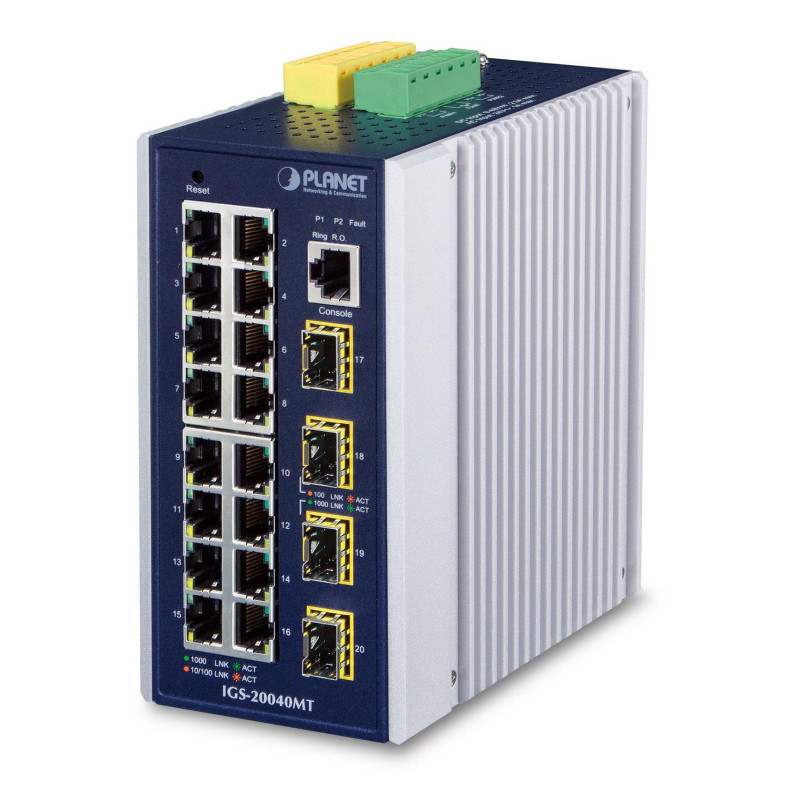

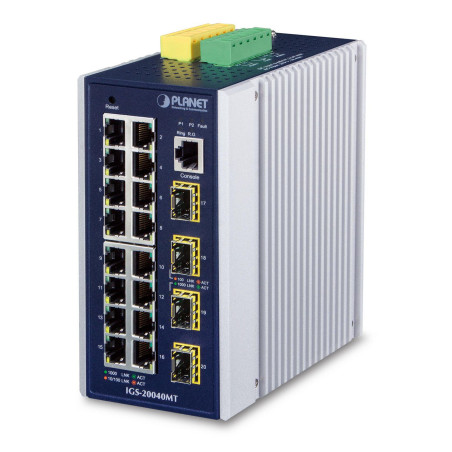

IP30 Industrial 16* 10/100/100

PLANET IGS-20040MT is a fully-managed Gigabit fiber switch usually designed for the industrial network. It features 16 10/100/1000BASE-T copper ports, 4 100/1000BASE-X SFP ports and redundant power system in an IP30 rugged but compact-sized case that can be installed in any difficult environment without space limitation. It provides user-friendly yet advanced IPv6/IPv4 management interfaces, abundant L2/L4 switching functions and Layer 3 static routing capability. The IGS-20040MT can operate stably under the temperature range from -40 to 75 degrees C and allows either DIN-rail or wall mounting for efficient use of cabinet space. With 4 dual-speed SFP fiber slots, it can be flexibly applied to extend the connection distance.


Network with Cybersecurity Helps Minimize Security Risks

The IGS-20040MT comes with enhanced cybersecurity to fend off cyberthreats and cyberattacks. It supports SSHv2, TLS and SSL protocols to provide strong protection against advanced threats. Served as a key point to transmit data to customer's critical equipment in a business network, the cybersecurity feature of the IGS-20040MT protects the switch management and enhances the security of the mission-critical network without any extra deployment cost and effort.


Redundant Ring, Fast Recovery for Surveillance System

The IGS-20040MT supports redundant ring technology and features strong rapid self-recovery capability to prevent interruptions and external intrusions. It incorporates advanced ITU-T G.8032 ERPS (Ethernet Ring Protection Switching) technology, Spanning Tree Protocol (802.1s MSTP), and redundant power input system into customer’s industrial automation network to enhance system reliability and uptime in harsh factory environments. In certain simple Ring network, the recovery time of data link can be as fast as 10ms.


Modbus TCP Provides Flexible Network Connectivity for Factory Automation

With the supported Modbus TCP/IP protocol, the IGS-20040MT can easily integrate with SCADA systems, HMI systems and other data acquisition systems in factory floors. It enables administrators to remotely monitor the industrial Ethernet switch’s operating information, port information, communication status, and DI and DO status, thus easily achieving enhanced monitoring and maintenance of the entire factory.


1588 Time Protocol for Industrial Computing Networks

The IGS-20040MT is ideal for telecom and Carrier Ethernet applications, supporting MEF service delivery and timing over packet solutions for IEEE 1588 and synchronous Ethernet.


SMTP/SNMP Trap Event Alert

The IGS-20040MT provides SMTP/SNMP event alert function to help to diagnose the abnormal device owing to whether or not there is a break of the network connection, or the rebooting response.


Effective Alarm Alert for Better Protection

The IGS-20040MT supports a Fault Alarm feature which can alert the users when there is something wrong with the switches. With this ideal feature, the users would not have to waste time finding where the problem is. It will help to save time and human resource.


Digital Input and Digital Output for External Alarm

The IGS-20040MT supports Digital Input and Digital Output on its upper panel. The external alarm enables users to use Digital Input to detect external device’s status (such as door intrusion detector), and send event alarm to the administrators. The Digital Output could be used to alarm the administrators if the IGS-20040MT port is link-down, link-up or power-dead.


Layer 3 IPv4 and IPv6 Software VLAN Routing for Secure and Flexible Management

To help customers stay on top of their businesses, the IGS-20040MT not only provides high transmission performance and excellent Layer 2 technologies, but also IPv4/IPv6 software VLAN routing feature which allows to cross over different VLANs and different IP addresses for the purpose of having a highly-secure, flexible management and simpler networking application.


Robust Layer 2 Features

The IGS-20040MT can be programmed for advanced switch management functions such as dynamic port link aggregation, Q-in-Q VLAN, private VLAN, Rapid Spanning Tree Protocol, Layer 2 to Layer 4 QoS, bandwidth control and IGMP snooping. The IGS-20040MT provides 802.1Q tagged VLAN, and the VLAN groups allowed will be maximally up to 255. Via aggregation of supporting ports, the IGS-20040MT allows the operation of a high-speed trunk combining multiple ports. It enables a maximum of up to 10 trunk groups with 8 ports per trunk group, and supports fail-over as well.


Efficient Management

For efficient management, the IGS-20040MT is equipped with console, Web and SNMP management interfaces.

With the built-in Web-based management interface, the IGS-20040MT offers an easy-to-use, platform-independent management and configuration facility.
For text-based management, it can be accessed via Telnet and the console port.

Almacenar y reenviar	Yes
Capacidad	29,7 Mpps
Capacidad de conmutación	40 Gbit/s
Compatibilidad Jumbo frames	Yes
Marcos Jumbo	9216
Número de colas	8
Número de interfaces IP	8
Tabla de direcciones MAC	8000 entradas
Botón Reset	Yes
Certificación	FCC, CE
Código de protección (IP)	IP30
Color producto	Blue/White
Indicadores LED	Yes
Material de la carcasa	Aluminium
Montaje a pared	Yes
Montaje en carril DIN	Yes
Montaje en rack	No
Capa switch	L2+
Clasificación del tráfico	Yes
Gestión basada en web	Yes
Inspección ARP	Yes
Registro de eventos del sistema	Yes
Soporte de calidad de servicio (QoS)	Yes
Tipo de switch	Managed
Número de grupos de multidifusión filtrados	255
Soporte multicast	Yes
Agregación de enlaces	Yes
Auto MDI/MDI-X	Yes
Características de LAN virtual	Private VLAN/Protocol-based VLAN/Stacked VLAN/Tagged VLAN
Compatible con aprendizaje automático de dirección MAC	Yes
Compatible con envejecimiento automático de dirección MAC	Yes
Control broadcast storm	Yes
Full duplex	Yes
Limitación de velocidad	Yes
Negociación automática	Yes
Número de VLANs	4095
Protocolo de árbol de expansión	Yes
Puertos en espejo	Yes
Soporte 10G	No
Soporte de control de flujo	Yes
Soporte VLAN	Yes
Tecnología de cableado Ethernet de cobre	1000BASE-T/100BASE-TX/10BASE-T
Disipación de calor	27 BTU/h
Humedad relativa de almacenamiento (H-H)	5 - 95 %
Humedad relativa de funcionamiento (H-H)	5 - 95 %
Temperatura de almacenamiento (T-T)	-40 - 85 °C
Temperatura de funcionamiento (T-T)	-40 - 75 °C
Tecnología de cableado fibra Ethernet	1000BASE‑BX/1000BASE‑LX/1000BASE‑SX/100BASE-FX
Puerto bloque terminal	Yes
Cantidad de módulos SFP instalados	0
Cantidad de módulos SFP+ instalados	0
Cantidad de ranuras para módulos SFP	4
Conector de fibra óptica	MiniGBIC
Puerto consola	RJ-45
Puertos Ethernet RJ-45 de conmutación básica	16
Puertos Gigabit Ethernet (cobre)	16
Tipo de puertos Ethernet RJ-45 de conmutación básica	Gigabit Ethernet (10/100/1000)
Compatibilidad con fuentes de alimentación redundantes (RPS)	Yes
Consumo de energía (máx.)	17 W
Consumo de energía (típico)	8 W
Alimentación PoE	No
Protocolos de gestión	Telnet, SNMP
Protocolos de red soportados	IPv4 / IPv6
Algoritmos de seguridad	802.1x RADIUS/SSH/SSL/TLS
Autenticación	MAC-based authentication/Port-based authentication
Compatibilidad SSH/SSL	Yes
Filtrado/protección BPDU	Yes
IGMP snooping	Yes
Lista de control de acceso (ACL)	Yes
Protección de bucle	Yes
Garantía	5 años

Características principales

• Gestión: Managed
• Capa: L2+
• Capacidad de conmutación: 40 Gbit/s
• Tabla MAC: 8000 entradas
• VLAN: 4095 VLAN
• Montaje: No
