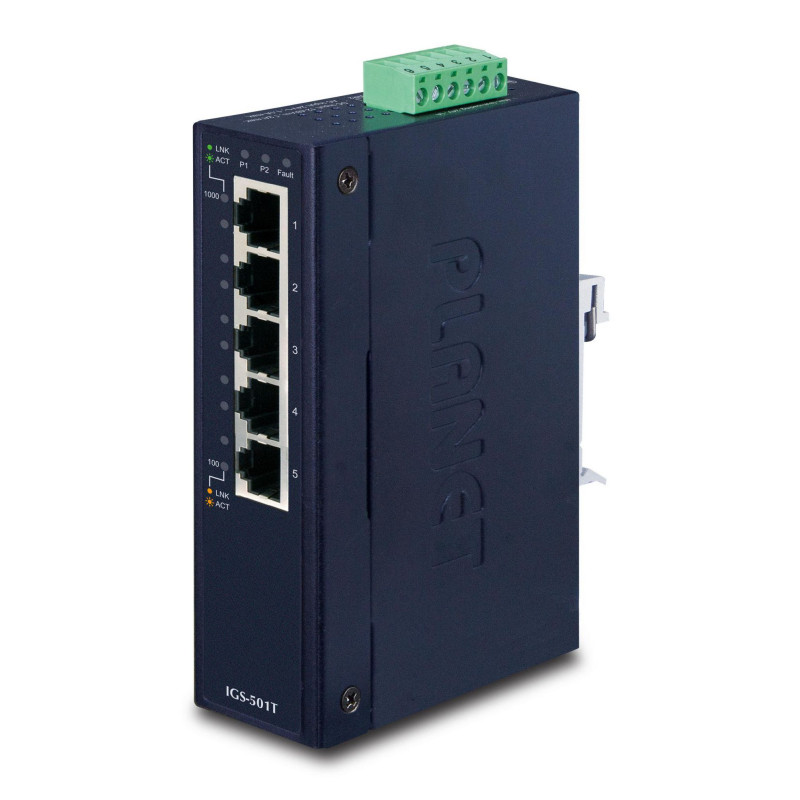

Planet IP30 Slim type 5-P Industrial - Ref. IGS-501T
146,28 €
120,90 € sin IVA
Impuestos incluidos
IP30 Slim type 5-P Industrial. Producto Planet.
Pago 100% seguro
Tarjeta (RedSys) y transferencia bancaria
Envíos y plazos
Envío 12,04 € (IVA inc.) · GRATIS a partir de 299 €
Devoluciones en 14 días
Devolución fácil y sin complicaciones
Factura de empresa
IVA desglosado y factura oficial en cada compra
Slim Type with More Practicability and Convenience
The IGS-501T advanced, slim-type, industrial, hardened Gigabit Ethernet Switch with IP30 metal case consists of 5 10/100/1000Mbps auto negotiation ports and thus, it operates reliably in heavy industrial demanding environments.
Its compact IP30 standard metal case features either DIN rail or wall mount for the efficient use of cabinet space.
Stable Performance under Difficult Environments
The IGS-501T provides a high level of immunity against electromagnetic interference and heavy electrical surges which are usually found on plant floors or in curb side traffic control cabinets. Being able to operate under the temperature range from -40 to 75 degrees C coupled with hazardous location certification (Class 1 Division 2), the IGS-501T can be placed in almost any difficult environment. The IGS-501T also possesses an integrated power supply source with a wide range of voltages (12 to 48V DC) for worldwide high availability applications requiring dual or backup power inputs.
Robust Switch Performance
The IGS-501T offers high performance switch architecture. With the 5 10/100/1000Mbps Gigabit Ethernet ports providing non-blocking switch fabric and wire-speed throughput as high as 10Gbps and the 2K MAC address table, the IGS-501T can perform wire-speed packets transfer without risk of packet loss.
The flow control function enables the IGS-501T to provide fast and reliable data transfer. The Gigabit port with 9K Jumbo frame supported can handle extremely large amounts of data transmission in industrial topology that forward data to central control room.
Plug and Play
All of the RJ-45 copper interfaces in the IGS-501T support 10/100/1000Mbps auto negotiation for optimal speed detection through RJ-45 Category 6, 5 or 5e cables. The standard auto-MDI/MDI-X support can detect the type of connection to any Ethernet device without requiring special straight or crossover cables.
The IGS-501T advanced, slim-type, industrial, hardened Gigabit Ethernet Switch with IP30 metal case consists of 5 10/100/1000Mbps auto negotiation ports and thus, it operates reliably in heavy industrial demanding environments.
Its compact IP30 standard metal case features either DIN rail or wall mount for the efficient use of cabinet space.
Stable Performance under Difficult Environments
The IGS-501T provides a high level of immunity against electromagnetic interference and heavy electrical surges which are usually found on plant floors or in curb side traffic control cabinets. Being able to operate under the temperature range from -40 to 75 degrees C coupled with hazardous location certification (Class 1 Division 2), the IGS-501T can be placed in almost any difficult environment. The IGS-501T also possesses an integrated power supply source with a wide range of voltages (12 to 48V DC) for worldwide high availability applications requiring dual or backup power inputs.
Robust Switch Performance
The IGS-501T offers high performance switch architecture. With the 5 10/100/1000Mbps Gigabit Ethernet ports providing non-blocking switch fabric and wire-speed throughput as high as 10Gbps and the 2K MAC address table, the IGS-501T can perform wire-speed packets transfer without risk of packet loss.
The flow control function enables the IGS-501T to provide fast and reliable data transfer. The Gigabit port with 9K Jumbo frame supported can handle extremely large amounts of data transmission in industrial topology that forward data to central control room.
Plug and Play
All of the RJ-45 copper interfaces in the IGS-501T support 10/100/1000Mbps auto negotiation for optimal speed detection through RJ-45 Category 6, 5 or 5e cables. The standard auto-MDI/MDI-X support can detect the type of connection to any Ethernet device without requiring special straight or crossover cables.
| Almacenar y reenviar | Yes |
| Capacidad | 7,4 Mpps |
| Capacidad de conmutación | 10 Gbit/s |
| Compatibilidad Jumbo frames | Yes |
| Marcos Jumbo | 9000 |
| Tabla de direcciones MAC | 2000 entradas |
| Apilable | No |
| Certificación | FCC Part 15 Class A, CE |
| Código de protección (IP) | IP30 |
| Color producto | Blue |
| Indicadores LED | Yes |
| Material de la carcasa | Metal |
| Montaje a pared | Yes |
| Montaje en carril DIN | Yes |
| Montaje en rack | No |
| Tipo de switch | Unmanaged |
| Auto MDI/MDI-X | Yes |
| Estándares de red | IEEE 802.1p/IEEE 802.3/IEEE 802.3ab/IEEE 802.3az/IEEE 802.3u/IEEE 802.3x |
| Full duplex | Yes |
| Semidúplex | Yes |
| Soporte 10G | No |
| Soporte de control de flujo | Yes |
| Tecnología de cableado Ethernet de cobre | 1000BASE-T/100BASE-T/10BASE-T |
| Tipos de cables compatibles | Cat3/Cat4/Cat5/Cat5e/Cat6 |
| Disipación de calor | 18 BTU/h |
| Humedad relativa de almacenamiento (H-H) | 5 - 90 % |
| Humedad relativa de funcionamiento (H-H) | 5 - 90 % |
| Temperatura de almacenamiento (T-T) | -40 - 75 °C |
| Temperatura de funcionamiento (T-T) | -40 - 75 °C |
| Máxima longitud cable | 100 m |
| Plug and play | Yes |
| Cantidad de módulos SFP instalados | 0 |
| Cantidad de módulos SFP+ instalados | 0 |
| Puertos Ethernet RJ-45 de conmutación básica | 5 |
| Tipo de puertos Ethernet RJ-45 de conmutación básica | Gigabit Ethernet (10/100/1000) |
| Consumo de energía (típico) | 5,28 W |
| Fuente de alimentación incluida | No |
| Voltaje de entrada DC | 12 - 48 V |
| Alimentación PoE | No |
| Garantía | 5 años |
Características principales
- Puertos: 5 puertos
- Tipo de puertos: Gigabit Ethernet (10/100/1000)
- Gestión: Unmanaged
- Presupuesto PoE: No
- Capacidad de conmutación: 10 Gbit/s
- Tabla MAC: 2000 entradas
- Apilable: No
- Montaje: No
- Garantía: 5 años
MP-607768
10 unidades
Ficha técnica
- Estándares de red
- IEEE 802.1p/IEEE 802.3/IEEE 802.3ab/IEEE 802.3az/IEEE 802.3u/IEEE 802.3x
- Soporte 10G
- No
- Tecnología de cableado ethernet de cobre
- 1000BASE-T/100BASE-T/10BASE-T
- Soporte de control de flujo
- Yes
- Tabla de direcciones MAC
- 2000 entradas
- Capacidad de conmutación
- 10 Gbit/s
- Montaje en rack
- No
- Apilable
- No
- Fuente de alimentación incluida
- No
- Indicadores LED
- Yes
- Certificación
- FCC Part 15 Class A, CE
- Capacidad
- 7,4 Mpps
- Material de la carcasa
- Metal
- Voltaje de entrada DC
- 12 - 48 V
- Montaje en carril DIN
- Yes
- Garantía
- 5 años
- Color producto
- Blue
- Humedad relativa de almacenamiento (H-H)
- 5 - 90 %
- Humedad relativa de funcionamiento (H-H)
- 5 - 90 %
- Temperatura de almacenamiento (T-T)
- -40 - 75 °C
- Temperatura de funcionamiento (T-T)
- -40 - 75 °C
- Plug and play
- Yes
- Full duplex
- Yes
- Alimentación PoE
- No
- Consumo de energía (típico)
- 5,28 W
- Montaje a pared
- Yes
- Compatibilidad Jumbo frames
- Yes
- Tipo de switch
- Unmanaged
- Auto MDI/MDI-X
- Yes
- Cantidad de módulos SFP instalados
- 0
- Puertos Ethernet RJ-45 de conmutación básica
- 5
- Tipo de puertos Ethernet RJ-45 de conmutación básica
- Gigabit Ethernet (10/100/1000)
- Cantidad de módulos SFP+ instalados
- 0
- Código de protección (IP)
- IP30
- Máxima longitud cable
- 100 m
- Marcos Jumbo
- 9000
- Almacenar y reenviar
- Yes
- Semidúplex
- Yes
- Disipación de calor
- 18 BTU/h
- Tipos de cables compatibles
- Cat3/Cat4/Cat5/Cat5e/Cat6
Referencias específicas
- ean13
- 4711213687334
- MPN
- IGS-501T
