IP30 Industrial L2+/L4 4-Port - Ref. IGS-5225-4T2S

For Harsh and Space-limited Environments

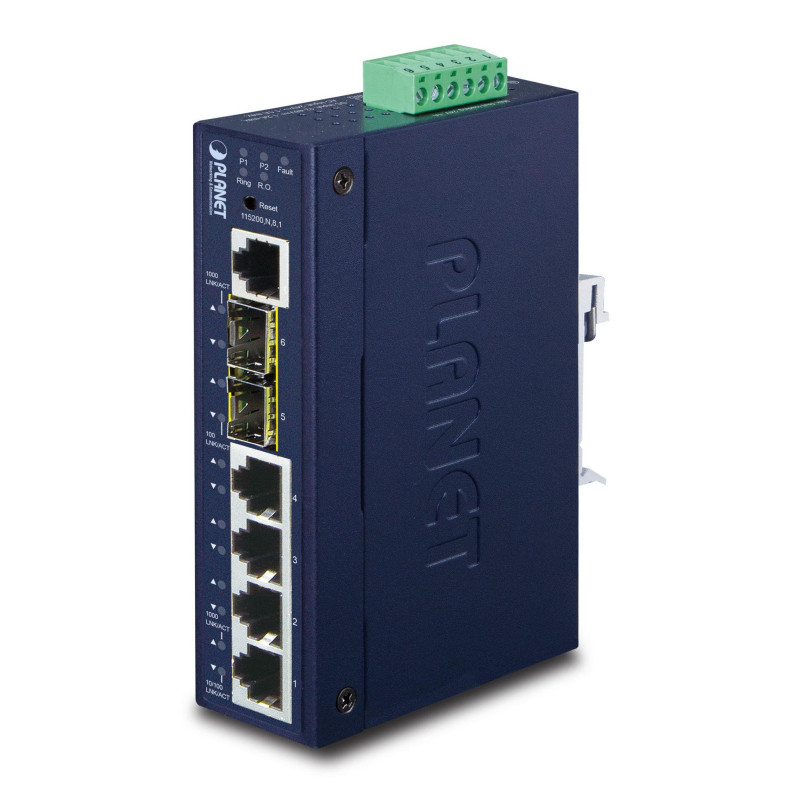

PLANET IGS-5225-4T2S, the smallest, fully-managed Gigabit fiber switch for harsh environments, features 4 10/100/1000Mbps copper ports, 2 100/1000X SFP ports and redundant power system in an IP30 rugged but compact-sized case. The IGS-5225-4T2S can be installed in any difficult environment as it can operate stably under the temperature range from -40 to 75 degrees C. With such a slim enclosure, it does not need a big space to install. The switch features user-friendly yet advanced IPv6/IPv4 management interfaces, abundant L2/L4 switching functions and Layer 3 static routing capability. It allows either DIN-rail or wall mounting for efficient use of cabinet space. With 2 dual-speed SFP fiber slots, it can be flexibly applied to extend the connection distance.


Cybersecurity Network Solution to Minimize Security Risks

The new generation of IGS-5225-4T2S has the cybersecurity feature to protect the switch management and enhance the security for mission-critical network without extra deployment cost and effort. The new IGS-5225-4T2S expands its memory and upgrades the kernel of SSH, TLS and SSL protocols to provide strong protection against advanced threats. It includes a range of cybersecurity features such as DHCP Snooping, IP Source Guard, ARP Inspection Protection, 802.1x port-based and MAC-based network access control, RADIUS and TACACS+ user accounts management, SNMPv3 authentication, and so on to complement it as an all-security solution. The network administrator can now construct highly-secure corporate networks with considerably less time and effort than before.


Redundant Ring, Fast Recovery for Critical Network Applications

The IGS-5225-4T2S supports redundant ring technology and features strong, rapid self-recovery capability to prevent interruptions and external intrusions. It incorporates advanced ITU-T G.8032 ERPS (Ethernet Ring Protection Switching) technology, Spanning Tree Protocol (802.1s MSTP), and redundant power input system into customer’s industrial automation network to enhance system reliability and uptime in harsh factory environments. In a certain simple Ring network, the recovery time of data link can be as fast as 10ms.


SMTP/SNMP Trap Event Alert and Fault Alarm

The IGS-5225-4T2S provides event alert function to help to diagnose the abnormal device owing to whether or not there is a break of the network connection, or the rebooting response. It supports a Fault Alarm feature which can alert the users when there is something wrong with the switches. With this ideal feature, the users would not have to waste time finding where the problem is. It will help to save time and human resource.


Layer 3 IPv4 and IPv6 Software VLAN Routing for Secure and Flexible Management

To help customers stay on top of their businesses, the IGS-5225 series not only provides ultra high transmission performance and excellent Layer 2 technologies, but also IPv4/IPv6 software VLAN routing feature which allows to cross over different VLANs and different IP addresses for the purpose of having a highly-secure, flexible management and simpler networking application.


Robust Layer 2 Features

The IGS-5225 series can be programmed for advanced switch management functions such as dynamic port link aggregation, Q-in-Q VLAN, private VLAN, Rapid Spanning Tree Protocol, Layer 2 to Layer 4 QoS, bandwidth control and IGMP snooping. The IGS-5225 series provides 802.1Q tagged VLAN, and the VLAN groups allowed will be maximally up to 255. Via aggregation of supporting ports, the IGS-5225-4T2S allows the operation of a high-speed trunk combining multiple ports. It enables a maximum of up to 10 trunk groups with 8 ports per trunk group, and supports fail-over as well.


Efficient Management

For efficient management, the IGS-5225 Managed Ethernet Switch series is equipped with console, Web and SNMP management interfaces. With the built-in Web-based management interface, the IGS-5225 series offers an easy-to-use, platform-independent management and configuration facility. For text-based management, the IGS-5225 series can be accessed via Telnet and the console port. Moreover, it also offers secure remote management via any standard-based management software by supporting SNMPv3 connection which encrypts the packet content at each session.


Powerful Security

The IGS-5225 series offers comprehensive Layer 2 to Layer 4 Access Control List (ACL) for enforcing security to the edge. It can be used to restrict network access by denying packets based on source and destination IP address, TCP/UDP ports or defined typical network applications. Its protection mechanism also comprises 802.1X Port-based and MAC-based user and device authentication. With the private VLAN function, communication between edge ports can be prevented to ensure user privacy.


Flexibility and Extension Solution

Almacenar y reenviar	Yes
Capacidad	8,9 Mpps
Capacidad de conmutación	12 Gbit/s
Compatibilidad Jumbo frames	Yes
Marcos Jumbo	9000
Número de colas	8
Tabla de direcciones MAC	8000 entradas
Botón Reset	Yes
Certificación	FCC Part 15 Class A, CE
Código de protección (IP)	IP30
Color producto	Blue
Indicadores LED	Yes
Material de la carcasa	Metal
Montaje a pared	Yes
Montaje en carril DIN	Yes
Capa switch	L2+
Clasificación del tráfico	Yes
Gestión basada en web	Yes
Soporte de calidad de servicio (QoS)	Yes
Tipo de switch	Managed
Soporte multicast	Yes
Agregación de enlaces	Yes
Auto MDI/MDI-X	Yes
Características de LAN virtual	Private VLAN/Protocol-based VLAN/Tagged VLAN
Compatible con aprendizaje automático de dirección MAC	Yes
Compatible con envejecimiento automático de dirección MAC	Yes
Control broadcast storm	Yes
Full duplex	Yes
Limitación de velocidad	Yes
Número de VLANs	4094
Protocolo de árbol de expansión	Yes
Puertos en espejo	Yes
Soporte 10G	No
Soporte de control de flujo	Yes
Soporte VLAN	Yes
Tecnología de cableado Ethernet de cobre	1000BASE-T/100BASE-T/10BASE-T
Disipación de calor	29,2 BTU/h
Humedad relativa de almacenamiento (H-H)	5 - 95 %
Humedad relativa de funcionamiento (H-H)	5 - 95 %
Temperatura de almacenamiento (T-T)	-40 - 85 °C
Temperatura de funcionamiento (T-T)	-40 - 75 °C
Cantidad de módulos SFP instalados	0
Cantidad de módulos SFP+ instalados	0
Cantidad de ranuras para módulos SFP	2
Puerto consola	RJ-45
Puertos Ethernet RJ-45 de conmutación básica	4
Puertos Gigabit Ethernet (cobre)	4
Tipo de puertos Ethernet RJ-45 de conmutación básica	Gigabit Ethernet (10/100/1000)
Compatibilidad con fuentes de alimentación redundantes (RPS)	Yes
Consumo de energía (máx.)	8,5 W
Voltaje de entrada DC	24 V
Alimentación PoE	No
Algoritmos de seguridad	SNMPv3/SSH/SSL/TLS
Autenticación	MAC-based authentication/Port-based authentication
Compatibilidad SSH/SSL	Yes
Enlace IP-MAC-Port	Yes
Filtrado/protección BPDU	Yes
IGMP snooping	Yes
Lista de control de acceso (ACL)	Yes
Garantía	5 años

Características principales

• Puertos: 4 puertos
• Gestión: Managed
• Capa: L2+
• Capacidad de conmutación: 12 Gbit/s
• Tabla MAC: 8000 entradas
• VLAN: 4094 VLAN
