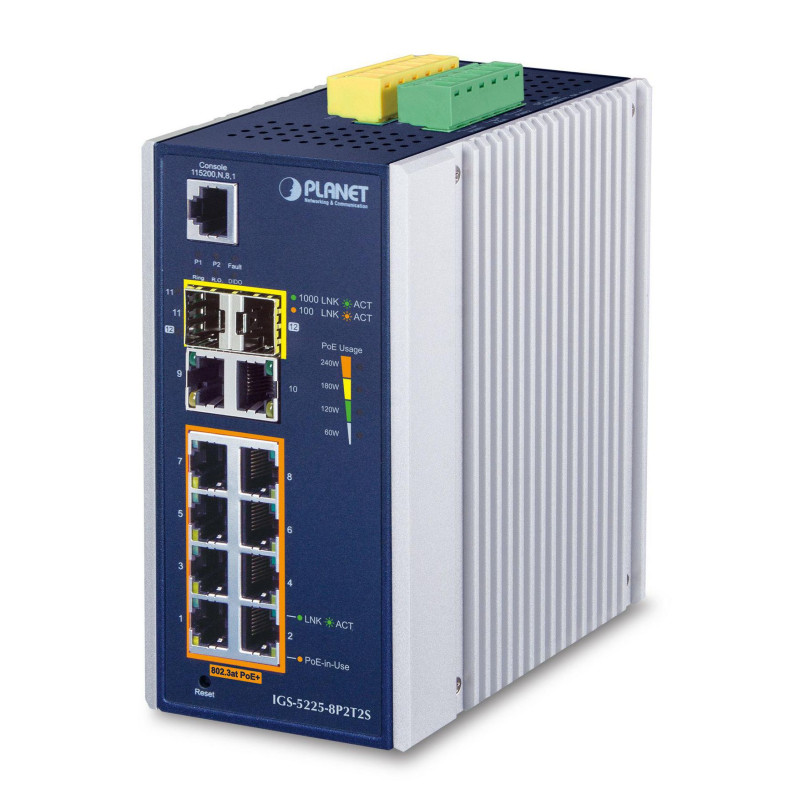

IP30 Industrial L2+/L4 8-Port - Ref. IGS-5225-8P2T2S

Environmentally Hardened Design

PLANET Industrial 8-port Gigabit 802.3at PoE+ Switch, IGS-5225-8P2T2S, is equipped with a rugged IP30 metal case for stable operation in heavy industrial demanding environments. Thus, the IGS-5225-8P2T2S provides a high level of immunity against electromagnetic interference and heavy electrical surges which are usually found on plant floors or in curbside traffic control cabinets.

Being able to operate under wide temperature range from -40 to 75 degrees C, the IGS-5225-8P2T2S can be placed in almost any difficult environment. The IGS-5225-8P2T2S also allows either DIN rail or wall mounting for efficient use of cabinet space.


Redundant Ring, Fast Recovery for Critical Network Applications

The IGS-5225-8P2T2S supports redundant ring technology and features strong, rapid self-recovery capability to prevent interruptions and external intrusions. It incorporates advanced ITU-T G.8032 ERPS (Ethernet Ring Protection Switching) technology, Spanning Tree Protocol (802.1s MSTP), and redundant power input system into customer’s industrial automation network to enhance system reliability and uptime in harsh factory environments. In a certain simple Ring network, the recovery time of data link can be as fast as 20ms.


High Power PoE for Security and Public Service Applications

To fulfill the demand of High Power PoE for network applications with Gigabit speed transmission under wide temperature, the IGS-5225-8P2T2S provides 8 10/100/1000Mbps ports featuring IEEE 802.3at Power over Ethernet Plus (PoE+) that combines up to 36-watt power output and data per port over one Cat5E/6 Ethernet cable. As the whole system comes with a total 240-watt PoE budget, the IGS-5225-8P2T2S is designed specifically to satisfy the growing demand of higher power consuming network PDs (powered devices) such as multi-channel (802.11a/b/g/n) wireless LAN access points, PTZ (Pan, Tilt & Zoom)/Speed Dome network cameras and other PoE network devices, doubling that of the current conventional 802.3af PoE.


Convenient and Smart ONVIF Devices with Detection Feature

PLANET has newly developed an awesome feature -- ONVIF Support -- which is specifically designed for co-operating with video IP surveillances. From the IGS-5225-8P2T2S’ GUI, you just need one click to search and show all of the ONVIF devices via network application. In addition, you can upload floor images to the switch and can remotely monitor or inspect an assembly line. Moreover, you can get real-time surveillance information and online/offline status; the PoE reboot can be controlled from the GUI.


Intelligent Alive Check for Powered Device

The IGS-5225-8P2T2S PoE Switch can be configured to monitor connected PD’s status in real time via ping action. Once the PD stops working and responding, the IGS-5225-8P2T2S will recycle the PoE port power and bring the PD back to work. It also greatly enhances the reliability in that the PoE port will reset the PD power, thus reducing administrator’s management burden.


PoE Schedule for Energy Saving

Under the trend of energy saving worldwide and contributing to environmental protection on the Earth, the IGS-5225-8P2T2S can effectively control the power supply besides its capability of giving high watts power. The built-in “PoE schedule” function helps you to enable or disable PoE power feeding for each PoE port during specified time intervals and it is a powerful function to help SMBs or enterprises save power and money.


Scheduled Power Recycling

The IGS-5225-8P2T2S allows each of the connected PoE IP cameras or PoE wireless access points to reboot at a specific time each week. Therefore, it will reduce the chance of IP camera or AP crash resulting from buffer overflow.


SMTP/SNMP Trap Event Alert

The IGS-5225-8P2T2S provides event alert function to help to diagnose the abnormal device owing to whether or not there is a break of the network connection, or the rebooting response.


Effective Alarm Alert for Better Protection

The IGS-5225-8P2T2S supports a Fault Alarm feature which can alert the users when there is something wrong with the switches. With this ideal feature, the users would not have to waste time finding where the problem is. It will help to save time and human resource.


Digital Input and Digital Output for External Alarm

The IGS-5225-8P2T2S supports Digital Input and Digital Output on its upper panel. This external alarm enables users to use Digital Input to detect and log external device status (such as door intrusion detector), and send event alarm to the administrators. The Digital Output could be used to alarm the administrators if the IGS-5225-8P2T2S port shows link down, link up or power failure.


Layer 3 IPv4 and IPv6 Software VLAN Routing for Secure and Flexible Management

Almacenar y reenviar	Yes
Capacidad	17,85 Mpps
Capacidad de conmutación	24 Gbit/s
Compatibilidad Jumbo frames	Yes
Marcos Jumbo	9000
Memoria de búfer de paquetes	4 MB
Número de rutas estáticas	32
Número de troncales	4
Ruta estática	Yes
Tabla de direcciones MAC	8000 entradas
Botón Reset	Yes
Certificación	FCC Part 15 Class A, CE
Código de protección (IP)	IP30
Color producto	Blue/White
Indicadores LED	Activity/Fault/Link/PoE/Power/Ring
Material de la carcasa	Aluminium
Montaje a pared	Yes
Montaje en carril DIN	Yes
Capa switch	L2+
Gestión basada en web	Yes
Soporte de calidad de servicio (QoS)	Yes
Tipo de switch	Managed
Entradas MLD	255
Multicast Listener Discovery (MLD) snooping	v1/v2
Soporte multicast	Yes
Auto MDI/MDI-X	Yes
Características de LAN virtual	MAC address-based VLAN/Multicast VLAN/Private VLAN/Protocol-based VLAN/Tagged VLAN/Voice VLAN
Compatible con aprendizaje automático de dirección MAC	Yes
Compatible con envejecimiento automático de dirección MAC	Yes
Control broadcast storm	Yes
Entradas de enrutamiento	32
Full duplex	Yes
Negociación automática	Yes
Número de VLANs	4094
Protocolo de árbol de expansión	Yes
Puertos en espejo	Yes
Semidúplex	Yes
Soporte 10G	No
Soporte de control de flujo	Yes
Soporte VLAN	Yes
Tecnología de cableado Ethernet de cobre	1000BASE-T/100BASE-FX/100BASE-TX/10BASE-T
Disipación de calor	865,64 BTU/h
Humedad relativa de almacenamiento (H-H)	5 - 95 %
Humedad relativa de funcionamiento (H-H)	5 - 95 %
Temperatura de almacenamiento (T-T)	-40 - 85 °C
Temperatura de funcionamiento (T-T)	-40 - 75 °C
Cantidad de módulos SFP instalados	0
Cantidad de módulos SFP+ instalados	0
Cantidad de ranuras para módulos SFP	2
Conector de alimentación	Terminal block (3-pin)
Puerto consola	RJ-45
Puertos Ethernet RJ-45 de conmutación básica	10
Puertos Gigabit Ethernet (cobre)	10
Tipo de puertos Ethernet RJ-45 de conmutación básica	Gigabit Ethernet (10/100/1000)
Consumo de energía (máx.)	252,3 W
Voltaje de entrada DC	48 - 56 V
Alimentación PoE	Yes
Alimentación PoE por puerto	36 W
Cantidad puertos PoE	8
Presupuesto total alimentación PoE	240 W
Características IPv4 e IPv6	IPv6 Telnet
Algoritmos de programación de colas	Priority queuing (PQ)/Weighted Round Robin (WRR)
Algoritmos de seguridad	SNMP/SNMPv3/SSH
Autenticación	Port-based authentication
Entradas IGMP	255
Filtrado/protección BPDU	Yes
IGMP snooping	Yes
Lista de control de acceso (ACL)	Yes
Protección de bucle	Yes
Garantía	5 años
