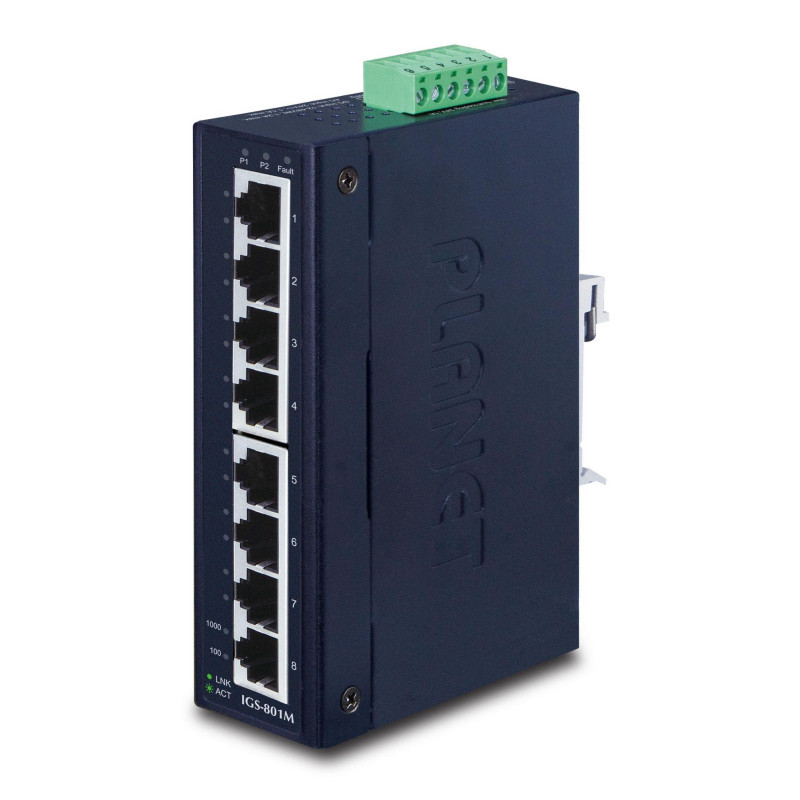

PLANET IGS-801M switch Gestionado L2/L4 Gigabit Ethernet (10/100/1000) 1U Azul

Perfect, Slim-type Managed Switch with More Practicability and Convenience

PLANET IGS-801M is an Industrial 8-Port Full Gigabit Managed Ethernet Switch specially designed to transmit reliable but high-speed data in heavy industrial demanding environments. It provides 8-Port 10/100/1000BASE-T copper interfaces delivered in an IP30 rugged strong case with redundant power system. Besides support for 16Gbps switch fabric to handle extremely large amounts of video, voice and important data in a secure topology, the IGS-801M provides user-friendly but advanced IPv6/IPv4 management interfaces and abundant L2/L4 switching functions. It is the best investment for industrial business expanding or upgrading its network infrastructure.

Environmentally Hardened Design

With IP30 industrial case protection, the IGS-801M provides a high level of immunity against electromagnetic interference and heavy electrical surges which are usually found on plant floors or in curb-side traffic control cabinets. It also possesses an integrated power supply source with wide range of voltages (12 to 48V DC or 24V AC) for worldwide high availability applications requiring dual or backup power inputs. Being able to operate under the temperature range from -40 to 75 degrees C, the IGS-801M can be placed in almost any difficult environment.

Robust Layer 2 Features

The IGS-801M can be programmed for advanced switch management functions such as dynamic port link aggregation, 802.1Q VLAN and Q-in-Q VLAN, Multiple Spanning Tree Protocol (MSTP), loop and BPDU guard, IGMP snooping, and MLD snooping. Via the link aggregation, the IGS-801M allows the operation of a high-speed trunk to combine with multiple ports, and supports fail-over as well. Also, the Link Layer Discovery Protocol (LLDP) is the Layer 2 protocol included to help discover basic information about neighboring devices on the local broadcast domain.

Efficient Traffic Control

The IGS-801M is loaded with robust QoS features and powerful traffic management to enhance services to business-class data, voice and video solutions. The functionality includes broadcast/multicast storm control, per port bandwidth control, IP DSCP QoS priority and remarking. It guarantees the best performance for VoIP and video stream transmission, and empowers the enterprises to take full advantage of the limited network resources.

Powerful Security

PLANET IGS-801M offers comprehensive IPv4/IPv6 Layer 2 to Layer 4 Access Control List (ACL) for enforcing security to the edge. It can be used to restrict network access by denying packets based on source and destination IP address, TCP/UDP ports or defined typical network applications. Its protection mechanism also comprises 802.1X port-based user and device authentication, which can be deployed with RADIUS to ensure the port level security and block illegal users. With the protected port function, communication between edge ports can be prevented to guarantee user privacy. Furthermore, port security function allows to limit the number of network devices on a given port.

Advanced Network Security

The IGS-801M also provides DHCP snooping, IP source guard and dynamic ARP inspection functions to prevent IP snooping from attack and discarded ARP packets with invalid MAC address. The network administrators can now construct highly-secure corporate networks with considerably less time and effort than before.

Friendly and Secure Management

For efficient management, the IGS-801M is equipped with web, Telnet and SNMP management interfaces. With the built-in web-based management interface, the IGS-801M offers an easy-to-use, platform-independent management and configuration facility. By supporting the standard SNMP, the switch can be managed via any standard management software. For text-based management, the switch can be accessed via Telnet. Moreover, the IGS-801M offers secure remote management by supporting SSH, SSL and SNMP v3 connections which encrypt the packet content at each session.

Almacenar y reenviar	Yes
Capacidad	11,9 Mpps
Capacidad de conmutación	16 Gbit/s
Compatibilidad Jumbo frames	Yes
Marcos Jumbo	10000
Número de colas	8
Tabla de direcciones MAC	8000 entradas
Botón Reset	Yes
Certificación	FCC, CE
Código de protección (IP)	IP30
Color producto	Blue
Factor forma	1U
Indicadores LED	Yes
Material de la carcasa	Metal
Montaje a pared	Yes
Montaje en carril DIN	Yes
Montaje en rack	Yes
Capa switch	L2/L4
Clasificación del tráfico	Yes
Gestión basada en web	Yes
Inspección ARP	Yes
Registro de eventos del sistema	Yes
Soporte de calidad de servicio (QoS)	Yes
Tipo de switch	Managed
Número de grupos de multidifusión filtrados	256
Soporte multicast	Yes
Agregación de enlaces	Yes
Auto MDI/MDI-X	Yes
Características de LAN virtual	Private VLAN/Protocol-based VLAN/Stacked VLAN/Tagged VLAN
Control broadcast storm	Yes
Estándares de red	IEEE 802.1ab/IEEE 802.1p/IEEE 802.1Q/IEEE 802.1s/IEEE 802.1w/IEEE 802.1x/IEEE 802.3/IEEE 802.3ab/IEEE 802.3ad/IEEE 802.3az/IEEE 802.3u/IEEE 802.3x
Full duplex	Yes
Limitación de velocidad	Yes
Número de VLANs	4094
Protocolo de árbol de expansión	Yes
Puertos en espejo	Yes
Semidúplex	Yes
Soporte 10G	No
Soporte de control de flujo	Yes
Soporte VLAN	Yes
Tecnología de cableado Ethernet de cobre	1000BASE-T/100BASE-TX/10BASE-T
Disipación de calor	15 BTU/h
Humedad relativa de almacenamiento (H-H)	5 - 95 %
Humedad relativa de funcionamiento (H-H)	5 - 95 %
Temperatura de almacenamiento (T-T)	-40 - 75 °C
Temperatura de funcionamiento (T-T)	-40 - 75 °C
Puerto bloque terminal	Yes
Firmware actualizable	Yes
Cantidad de módulos SFP instalados	0
Cantidad de módulos SFP+ instalados	0
Puertos Ethernet RJ-45 de conmutación básica	8
Puertos Gigabit Ethernet (cobre)	8
Tipo de puertos Ethernet RJ-45 de conmutación básica	Gigabit Ethernet (10/100/1000)
Consumo de energía (máx.)	10 W
Consumo de energía (típico)	4,5 W
Alimentación PoE	No
Protocolos de gestión	Telnet/SNMP
Protocolos de red soportados	IPv4 / IPv6
Algoritmos de seguridad	SSH/SSL/TLS
Autenticación	Port-based authentication
Compatibilidad SSH/SSL	Yes
Filtrado de direcciones MAC	Yes
Filtrado/protección BPDU	Yes
IGMP snooping	Yes
Lista de control de acceso (ACL)	Yes
Protección de bucle	Yes
Garantía	5 años

Características principales

• Gestión: Managed
• Capa: L2/L4
• Capacidad de conmutación: 16 Gbit/s
• Tabla MAC: 8000 entradas
• VLAN: 4094 VLAN
• Montaje: 1U
