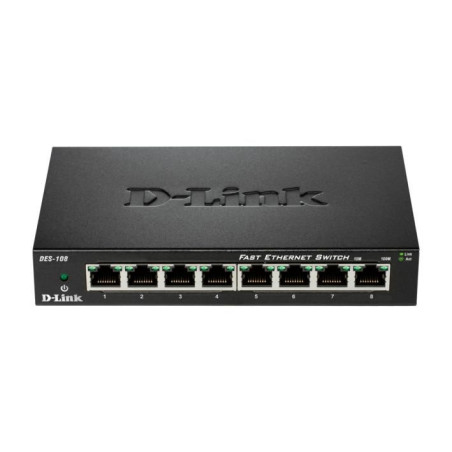

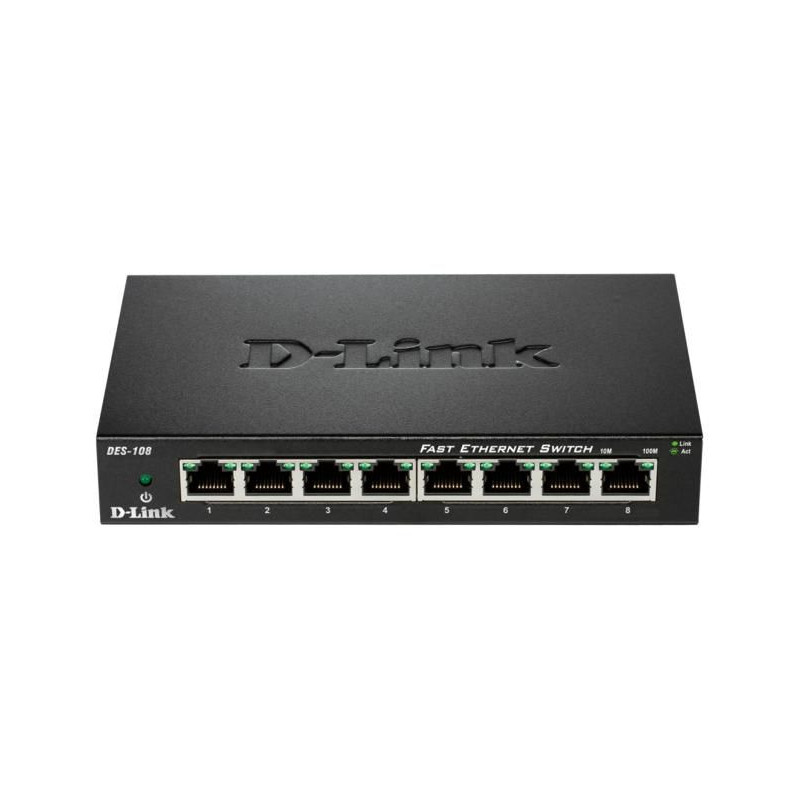

Switch D-Link DES-108 8 Puertos/ RJ-45 10/100

Auto-Sensing 10/100 Ports
The DES-108 uses auto-sensing 10/100 Mbps ports, allowing a small workgroup to flexibly connect to Ethernet and Fast Ethernet devices to create an integrated network. These ports detect the network speed and auto-negotiate between 10BASE-T and 100BASE-TX, as well as between full and half-duplex, allowing you to get the maximum speed possible for each device connected to your network.

Auto MDI/MDIX Crossover
All of the ports on the DES-108 support automatic MDI/MDIX crossover, eliminating the need for crossover cables or uplink ports. Each port can be plugged directly to a server, hub, router, or switch using regular straight-through twisted-pair Ethernet cables. In addition, the DES-108 features multiple front, easy-to-access Ethernet ports with two colour LED indicators per port to easily distinguish link status.

Flow Control for Secure Transmission
When a port reaches its receiving buffer capacity, the 802.3x flow control feature activates to minimize dropped packets. By minimizing the number of dropped packets, the switch provides a more reliable connection for all of your connected devices while surfing the web, playing games, or accessing media.

Effortless High Speed Networking
Featuring easy access auto sensing 10/100 front Ethernet ports with two color LED indicators per port to quickly distinguish link, speed, and half/full duplex transmission status. The DES-108 switch also supports Auto MDI/MDIX Crossover allowing each port can be plugged directly to a server, hub, router, or switch using regular straight-through twisted-pair Ethernet cables. Support for IEEE 802.1p QoS is included, which organizes and prioritizes time-sensitive and important data for efficient delivery.

Think Green
The DES-108 is a plug-and-play networking switch that offers D-Link’s Green Technology to save energy and reduce heat, which in turn extends product life without sacrificing performance or functionality. The switch supports IEEE 802.3az Energy-Efficient Ethernet (EEE) which detects when a connected computer is shut down or when there is no Ethernet traffic, at which time the switch will automatically power down the idle port, saving a substantial amount of power.

Environmentally Friendly
The DES-108 Gigabit switch was designed with the environment in mind. It is compliant with Energy Star Level V, CEC, and MEPS regulations which require the use of energy efficient power adapters. Built to comply with RoHS standards to minimize use of hazardous materials and is packaged with an EnergyStar Level V qualified power adapter all in a recyclable packaging making this product truly environmental friendly.

Almacenar y reenviar	Yes
Capacidad de conmutación	16 Gbit/s
Compatibilidad Jumbo frames	Yes
Marcos Jumbo	1536
Máxima velocidad de transferencia de datos	0,1 Gbit/s
Memoria de búfer de paquetes	0,768 MB
Número de colas	2
Tabla de direcciones MAC	1000 entradas
Velocidades de transferencia de datos admitidas	10/100 Mbps
Certificación	RoHS, FCC Class B, ICES-003 Class B, CE Class B, C-Tick Class B, VCCI Class B, cUL, CB
Color producto	Black
Factor forma	Desktop
Indicadores LED	Link/Power
Material de la carcasa	Metal
Montaje en rack	No
Capa switch	L2
Soporte de calidad de servicio (QoS)	Yes
Tipo de switch	Unmanaged
Auto MDI/MDI-X	Yes
Estándares de red	IEEE 802.1p/IEEE 802.3/IEEE 802.3ab/IEEE 802.3az/IEEE 802.3u/IEEE 802.3x
Full duplex	Yes
Soporte 10G	Yes
Soporte de control de flujo	Yes
Tecnología de cableado Ethernet de cobre	1000BASE-T/100BASE-TX/10BASE-T
Disipación de calor	17,47 BTU/h
Humedad relativa de almacenamiento (H-H)	5 - 90 %
Humedad relativa de funcionamiento (H-H)	10 - 90 %
Temperatura de almacenamiento (T-T)	-10 - 70 °C
Temperatura de funcionamiento (T-T)	0 - 50 °C
Velocidad de transferencia de datos	200 Mbit/s
Tiempo medio entre fallos (MTBF)	511323 h
Cantidad de módulos SFP instalados	0
Cantidad de módulos SFP+ instalados	0
Conector de alimentación	DC-in jack
Puertos Ethernet RJ-45 de conmutación básica	8
Tipo de puertos Ethernet RJ-45 de conmutación básica	Gigabit Ethernet (10/100/1000)
Consumo de energía (máx.)	4,5 W
Consumo de energía (típico)	1 W
Corriente de entrada	1 A
Fuente de alimentación	AC
Voltaje de entrada	5 V
Filtrado de direcciones MAC	Yes
Garantía	1 año
