Planet 5-P 10/100Mbps Fast Ethernet - Ref. FSD-503
33,99 €
28,09 € sin IVA
Impuestos incluidos

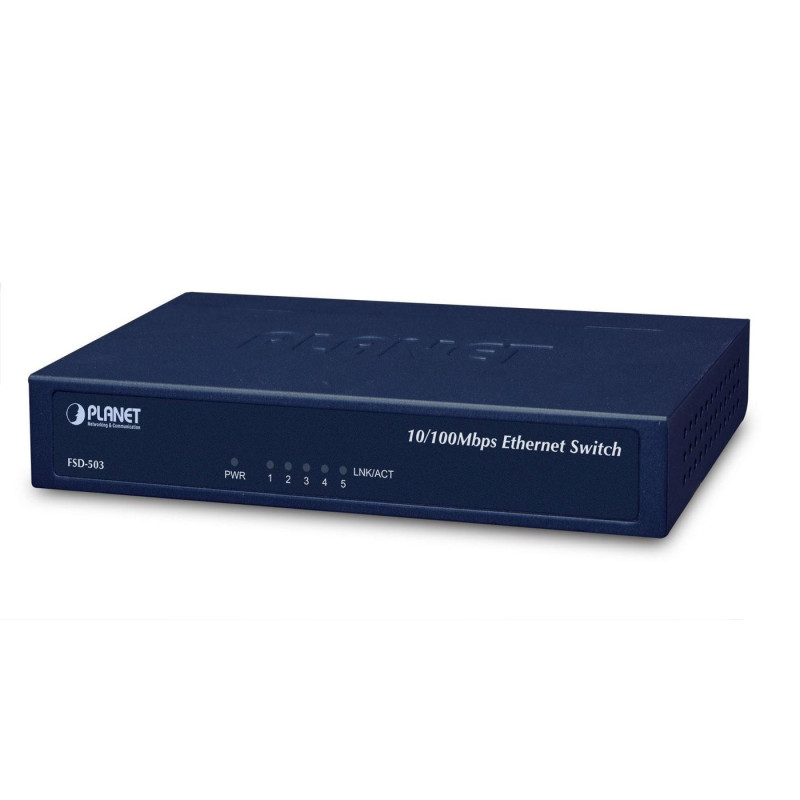

PLANET FSD-503 switch Fast Ethernet (10/100) Azul. Producto PLANET.
Pago 100% seguro
Tarjeta (RedSys) y transferencia bancaria
Envíos y plazos
Envío 12,04 € (IVA inc.) · GRATIS a partir de 299 €
Devoluciones en 14 días
Devolución fácil y sin complicaciones
Factura de empresa
IVA desglosado y factura oficial en cada compra
High-speed 10/100Mbps Workgroup Switch
PLANET Fast Ethernet Switch FSD-503 provides business and home users with a cost-effective integrated system of small-office / home-office networking. It is with compact-sized metal case design and just right for the network of 10 to 50 users.
Stable Fast Ethernet Switch Performance
The FSD-503 also supports Store-and-Forward forwarding scheme to ensure low latency and high data integrity. The high performance throughput (filtering / forwarding rate: 14,880 packets per second in 10Mbps, and 148,800 packets per second in 100Mbps) and built-in packet buffer help the FSD-503 to boost bandwidth, eliminate unnecessary traffic, and relieve congestion on your critical server path. With an intelligent address recognition algorithm, the FSD-503 could recognize up to a 2K different MAC addresses and provide 1Gbps switching capacity, which makes the FSD-503 the best in wire-speed packet transfer performance without risk of packet loss.
Flexible Desktop Size Design
The FSD-503 is a fancy-shaped standard metal model that nicely fits in a space-limited environment. With concepts of "easy to install and use", "compact sized design", and "simple troubleshooting", the FSD-503 provides cost-conscious business and home users with a flexible yet cost-effective SOHO / Home networking.
Power Energy Saving
With one power ON/OFF button designed on the rear panel of the FSD-503, it can help users to reduce unnecessary power energy loss while the FSD-503 operation is OFF.
Plug & Play and Easy Installation
All RJ-45 copper interfaces in the FSD-503 support 10/100Mbps auto-negotiation for optimal speed detection through RJ-45 Category 5/5e cables. Supporting standard for auto-MDI/MDI-X can detect the type of connection to any Ethernet device without requiring special straight-through or crossover cables. The Flow Control function allows the FSD-503 to support routers and servers for direct connection to this switch with fast and reliable data transfer.
PLANET Fast Ethernet Switch FSD-503 provides business and home users with a cost-effective integrated system of small-office / home-office networking. It is with compact-sized metal case design and just right for the network of 10 to 50 users.
Stable Fast Ethernet Switch Performance
The FSD-503 also supports Store-and-Forward forwarding scheme to ensure low latency and high data integrity. The high performance throughput (filtering / forwarding rate: 14,880 packets per second in 10Mbps, and 148,800 packets per second in 100Mbps) and built-in packet buffer help the FSD-503 to boost bandwidth, eliminate unnecessary traffic, and relieve congestion on your critical server path. With an intelligent address recognition algorithm, the FSD-503 could recognize up to a 2K different MAC addresses and provide 1Gbps switching capacity, which makes the FSD-503 the best in wire-speed packet transfer performance without risk of packet loss.
Flexible Desktop Size Design
The FSD-503 is a fancy-shaped standard metal model that nicely fits in a space-limited environment. With concepts of "easy to install and use", "compact sized design", and "simple troubleshooting", the FSD-503 provides cost-conscious business and home users with a flexible yet cost-effective SOHO / Home networking.
Power Energy Saving
With one power ON/OFF button designed on the rear panel of the FSD-503, it can help users to reduce unnecessary power energy loss while the FSD-503 operation is OFF.
Plug & Play and Easy Installation
All RJ-45 copper interfaces in the FSD-503 support 10/100Mbps auto-negotiation for optimal speed detection through RJ-45 Category 5/5e cables. Supporting standard for auto-MDI/MDI-X can detect the type of connection to any Ethernet device without requiring special straight-through or crossover cables. The Flow Control function allows the FSD-503 to support routers and servers for direct connection to this switch with fast and reliable data transfer.
| Almacenar y reenviar | Yes |
| Capacidad | 0,744 Mpps |
| Capacidad de conmutación | 1 Gbit/s |
| Tabla de direcciones MAC | 2000 entradas |
| Certificación | FCC, CE |
| Color producto | Blue |
| Indicadores LED | Yes |
| Interruptor de encendido/apagado | Yes |
| Material de la carcasa | Metal |
| Montaje a pared | Yes |
| Montaje en rack | No |
| Capa switch | L2 |
| Tipo de switch | Unmanaged |
| Auto MDI/MDI-X | Yes |
| Compatible con aprendizaje automático de dirección MAC | Yes |
| Compatible con envejecimiento automático de dirección MAC | Yes |
| Estándares de red | IEEE 802.3/IEEE 802.3az/IEEE 802.3u/IEEE 802.3x |
| Full duplex | Yes |
| Negociación automática | Yes |
| Semidúplex | Yes |
| Soporte 10G | No |
| Soporte de control de flujo | Yes |
| Tecnología de cableado Ethernet de cobre | 100BASE-TX/10BASE-T |
| Disipación de calor | 6,1 BTU/h |
| Humedad relativa de almacenamiento (H-H) | 5 - 95 % |
| Humedad relativa de funcionamiento (H-H) | 5 - 95 % |
| Temperatura de almacenamiento (T-T) | -10 - 70 °C |
| Temperatura de funcionamiento (T-T) | 0 - 50 °C |
| Adaptador AC incluido | Yes |
| Plug and play | Yes |
| Cantidad de módulos SFP instalados | 0 |
| Cantidad de módulos SFP+ instalados | 0 |
| Conector de alimentación | DC-in jack |
| Puertos Ethernet RJ-45 de conmutación básica | 5 |
| Puertos Gigabit Ethernet (cobre) | 5 |
| Tipo de puertos Ethernet RJ-45 de conmutación básica | Fast Ethernet (10/100) |
| Consumo de energía (máx.) | 1,8 W |
| Corriente de entrada | 1 A |
| Corriente de salida | 1 A |
| Voltaje de entrada DC | 5 V |
| Voltaje de salida | 5 V |
| Alimentación PoE | No |
| Protocolos de red soportados | CSMA / CD |
| Garantía | 3 años |
Características principales
- Puertos: 5 puertos
- Tipo de puertos: Fast Ethernet (10/100)
- Gestión: Unmanaged
- Capa: L2
- Capacidad de conmutación: 1 Gbit/s
- Tabla MAC: 2000 entradas
- Montaje: No
MP-881126
1 unidad
Ficha técnica
- Estándares de red
- IEEE 802.3/IEEE 802.3az/IEEE 802.3u/IEEE 802.3x
- Soporte 10G
- No
- Tecnología de cableado ethernet de cobre
- 100BASE-TX/10BASE-T
- Soporte de control de flujo
- Yes
- Tabla de direcciones MAC
- 2000 entradas
- Capacidad de conmutación
- 1 Gbit/s
- Montaje en rack
- No
- Indicadores LED
- Yes
- Certificación
- FCC, CE
- Corriente de entrada
- 1 A
- Corriente de salida
- 1 A
- Capacidad
- 0,744 Mpps
- Adaptador AC incluido
- Yes
- Material de la carcasa
- Metal
- Voltaje de entrada DC
- 5 V
- Color producto
- Blue
- Humedad relativa de almacenamiento (H-H)
- 5 - 95 %
- Humedad relativa de funcionamiento (H-H)
- 5 - 95 %
- Temperatura de almacenamiento (T-T)
- -10 - 70 °C
- Temperatura de funcionamiento (T-T)
- 0 - 50 °C
- Plug and play
- Yes
- Interruptor de encendido/apagado
- Yes
- Full duplex
- Yes
- Consumo de energía (máx.)
- 1,8 W
- Montaje a pared
- Yes
- Capa switch
- L2
- Tipo de switch
- Unmanaged
- Auto MDI/MDI-X
- Yes
- Cantidad de módulos SFP instalados
- 0
- Puertos Ethernet RJ-45 de conmutación básica
- 5
- Tipo de puertos Ethernet RJ-45 de conmutación básica
- Fast Ethernet (10/100)
- Cantidad de módulos SFP+ instalados
- 0
- Conector de alimentación
- DC-in jack
- Almacenar y reenviar
- Yes
- Negociación automática
- Yes
- Semidúplex
- Yes
- Compatible con aprendizaje automático de dirección MAC
- Yes
- Compatible con envejecimiento automático de dirección MAC
- Yes
- Disipación de calor
- 6,1 BTU/h
- Puertos Gigabit Ethernet (cobre)
- 5
Referencias específicas
- ean13
- 4711213680304
- MPN
- FSD-503
