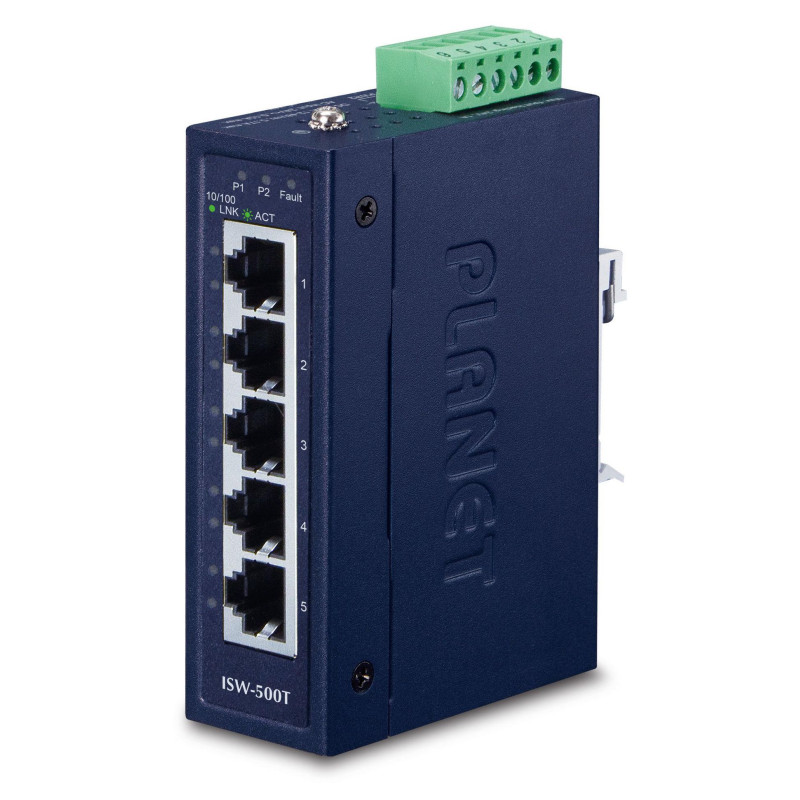

Planet IP30 Compact size 5-Port - Ref. ISW-500T
92,66 €
76,58 € sin IVA
Impuestos incluidos
PLANET ISW-500T switch No administrado Fast Ethernet (10/100) Azul. Producto PLANET.
Pago 100% seguro
Tarjeta (RedSys) y transferencia bancaria
Envíos y plazos
Envío 12,04 € (IVA inc.) · GRATIS a partir de 299 €
Devoluciones en 14 días
Devolución fácil y sin complicaciones
Factura de empresa
IVA desglosado y factura oficial en cada compra
Compact Size for More Practicability and Convenience
PLANET ISW-500T Industrial 5-Port 10/100TX Compact Ethernet Switch, suitable for industrial use, features 5 10/100Mbps auto-negotiation ports, IP30-rated rugged but compact case and a wide-ranging redundant power system (12~48V DC or 24V AC). The ISW-500T is able to operate in any harsh environment with operating temperature ranging from -40 to 75 degrees C.
As the trend for an IIoT (Industrial Internet of Things) infrastructure is gradually on demand, the ISW-500T is especially designed to make the deployment of an industrial network easy as it comes with a Plug and Play feature. Besides, it is stable and reliable when it comes to fast data and power transmission.
Low Power Consumption for Green Networking
The ISW-500T, adopting the advanced green networking technology, provides the link-on cable length power saving and link-down power saving methods. These features make the ISW-500T consume very low power in full load operation mode, which helps conserve energy effectively but maintains high performance efficiently.
With the Auto Power Saving and IEEE 802.3az Energy Efficient Ethernet (IEEE) Protocol, the ISW-500T can automatically detect cable link status and network traffic, and thus is able to adjust power consumption accordingly. It enables the switch to consume less power when it is less active.
Dual Power Input for High Availability Network System
The ISW-500T features a strong dual power input system with wide-ranging voltages (12V~48V DC or 24V AC) incorporated into customer’s automation network to enhance system reliability and uptime. In the example below, when power supply 1 fails to work, the hardware failover function will be activated automatically to keep powering the ISW-500T via power supply 2 alternatively without any loss of operation.
Robust Protection
The ISW-500T provides contact discharge of ±6KV DC and air discharge of ±8KV DC for Ethernet ESD protection. It also supports ±4KV surge immunity to improve product stability and protects users’ networks from devastating ESD attacks, making sure the flow of operation does not fluctuate.
High Switch Performance
The ISW-500T offers a high-performance switch architecture. With the 5 10/100Mbps Fast Ethernet ports providing non-blocking switch fabric and wire-speed throughput as high as 1Gbps and the 1K MAC address table, the ISW-500T can perform wire-speed packet transfer without the risk of packet loss. The flow control function enables the ISW-500T to provide fast and reliable data transfer.
Plug and Play
All of the RJ45 copper interfaces in the ISW-500T support 10/100Mbps auto negotiation for optimal speed detection through RJ45 Category 6, 5 or 5e cables. The standard auto-MDI/MDI-X support can detect the type of connection to any Ethernet device without requiring special straight-through or crossover cables.
PLANET ISW-500T Industrial 5-Port 10/100TX Compact Ethernet Switch, suitable for industrial use, features 5 10/100Mbps auto-negotiation ports, IP30-rated rugged but compact case and a wide-ranging redundant power system (12~48V DC or 24V AC). The ISW-500T is able to operate in any harsh environment with operating temperature ranging from -40 to 75 degrees C.
As the trend for an IIoT (Industrial Internet of Things) infrastructure is gradually on demand, the ISW-500T is especially designed to make the deployment of an industrial network easy as it comes with a Plug and Play feature. Besides, it is stable and reliable when it comes to fast data and power transmission.
Low Power Consumption for Green Networking
The ISW-500T, adopting the advanced green networking technology, provides the link-on cable length power saving and link-down power saving methods. These features make the ISW-500T consume very low power in full load operation mode, which helps conserve energy effectively but maintains high performance efficiently.
With the Auto Power Saving and IEEE 802.3az Energy Efficient Ethernet (IEEE) Protocol, the ISW-500T can automatically detect cable link status and network traffic, and thus is able to adjust power consumption accordingly. It enables the switch to consume less power when it is less active.
Dual Power Input for High Availability Network System
The ISW-500T features a strong dual power input system with wide-ranging voltages (12V~48V DC or 24V AC) incorporated into customer’s automation network to enhance system reliability and uptime. In the example below, when power supply 1 fails to work, the hardware failover function will be activated automatically to keep powering the ISW-500T via power supply 2 alternatively without any loss of operation.
Robust Protection
The ISW-500T provides contact discharge of ±6KV DC and air discharge of ±8KV DC for Ethernet ESD protection. It also supports ±4KV surge immunity to improve product stability and protects users’ networks from devastating ESD attacks, making sure the flow of operation does not fluctuate.
High Switch Performance
The ISW-500T offers a high-performance switch architecture. With the 5 10/100Mbps Fast Ethernet ports providing non-blocking switch fabric and wire-speed throughput as high as 1Gbps and the 1K MAC address table, the ISW-500T can perform wire-speed packet transfer without the risk of packet loss. The flow control function enables the ISW-500T to provide fast and reliable data transfer.
Plug and Play
All of the RJ45 copper interfaces in the ISW-500T support 10/100Mbps auto negotiation for optimal speed detection through RJ45 Category 6, 5 or 5e cables. The standard auto-MDI/MDI-X support can detect the type of connection to any Ethernet device without requiring special straight-through or crossover cables.
| Almacenar y reenviar | Yes |
| Capacidad | 0,74 Mpps |
| Capacidad de conmutación | 1 Gbit/s |
| Tabla de direcciones MAC | 1024 entradas |
| Certificación | FCC Part 15 Class A, CE |
| Código de protección (IP) | IP30 |
| Color producto | Blue |
| Indicadores LED | Activity/Fault/Link/Power |
| Montaje a pared | Yes |
| Montaje en carril DIN | Yes |
| Montaje en rack | No |
| Tipo de switch | Unmanaged |
| Auto MDI/MDI-X | Yes |
| Compatible con aprendizaje automático de dirección MAC | Yes |
| Compatible con envejecimiento automático de dirección MAC | Yes |
| Estándares de red | IEEE 802.3/IEEE 802.3x |
| Full duplex | Yes |
| Negociación automática | Yes |
| Soporte 10G | No |
| Soporte de control de flujo | Yes |
| Tecnología de cableado Ethernet de cobre | 100BASE-TX/10BASE-T |
| Humedad relativa de funcionamiento (H-H) | 5 - 95 % |
| Temperatura de almacenamiento (T-T) | -40 - 85 °C |
| Temperatura de funcionamiento (T-T) | -40 - 75 °C |
| Puerto bloque terminal | Yes |
| Bloque de terminales incluido | Yes |
| Kit de montaje a pared | Yes |
| Tamaño del búfer | 448 KB |
| Cantidad de módulos SFP instalados | 0 |
| Cantidad de módulos SFP+ instalados | 0 |
| Puertos Ethernet RJ-45 de conmutación básica | 5 |
| Tipo de puertos Ethernet RJ-45 de conmutación básica | Fast Ethernet (10/100) |
| Consumo de energía (máx.) | 2 W |
| Fuente de alimentación incluida | No |
| Voltaje de entrada AC | 24 V |
| Voltaje de entrada DC | 12 - 48 V |
| Alimentación PoE | No |
| Autenticación | Port-based authentication |
| Garantía | 5 años |
Características principales
- Puertos: 5 puertos
- Tipo de puertos: Fast Ethernet (10/100)
- Gestión: Unmanaged
- Presupuesto PoE: No
- Capacidad de conmutación: 1 Gbit/s
- Tabla MAC: 1024 entradas
- Montaje: No
- Garantía: 5 años
MP-894337
11 unidades
Ficha técnica
- Estándares de red
- IEEE 802.3/IEEE 802.3x
- Soporte 10G
- No
- Tecnología de cableado ethernet de cobre
- 100BASE-TX/10BASE-T
- Soporte de control de flujo
- Yes
- Tabla de direcciones MAC
- 1024 entradas
- Capacidad de conmutación
- 1 Gbit/s
- Montaje en rack
- No
- Fuente de alimentación incluida
- No
- Indicadores LED
- Activity/Fault/Link/Power
- Certificación
- FCC Part 15 Class A, CE
- Capacidad
- 0,74 Mpps
- Voltaje de entrada DC
- 12 - 48 V
- Voltaje de entrada AC
- 24 V
- Autenticación
- Port-based authentication
- Montaje en carril DIN
- Yes
- Número de puertos
- 5
- Garantía
- 5 años
- Color producto
- Blue
- Humedad relativa de funcionamiento (H-H)
- 5 - 95 %
- Temperatura de almacenamiento (T-T)
- -40 - 85 °C
- Temperatura de funcionamiento (T-T)
- -40 - 75 °C
- Full duplex
- Yes
- Alimentación PoE
- No
- Consumo de energía (máx.)
- 2 W
- Montaje a pared
- Yes
- Tipo de switch
- Unmanaged
- Auto MDI/MDI-X
- Yes
- Cantidad de módulos SFP instalados
- 0
- Puertos Ethernet RJ-45 de conmutación básica
- 5
- Tipo de puertos Ethernet RJ-45 de conmutación básica
- Fast Ethernet (10/100)
- Cantidad de módulos SFP+ instalados
- 0
- Código de protección (IP)
- IP30
- Tamaño del búfer
- 448 KB
- Almacenar y reenviar
- Yes
- Negociación automática
- Yes
- Compatible con aprendizaje automático de dirección MAC
- Yes
- Compatible con envejecimiento automático de dirección MAC
- Yes
- Kit de montaje a pared
- Yes
- Puerto bloque terminal
- Yes
- Bloque de terminales incluido
- Yes
Referencias específicas
- ean13
- 4711605282796
- MPN
- ISW-500T
