Planet IP30 Compact size 8-Port - Ref. ISW-800T

Compact Size for More Practicability and Convenience

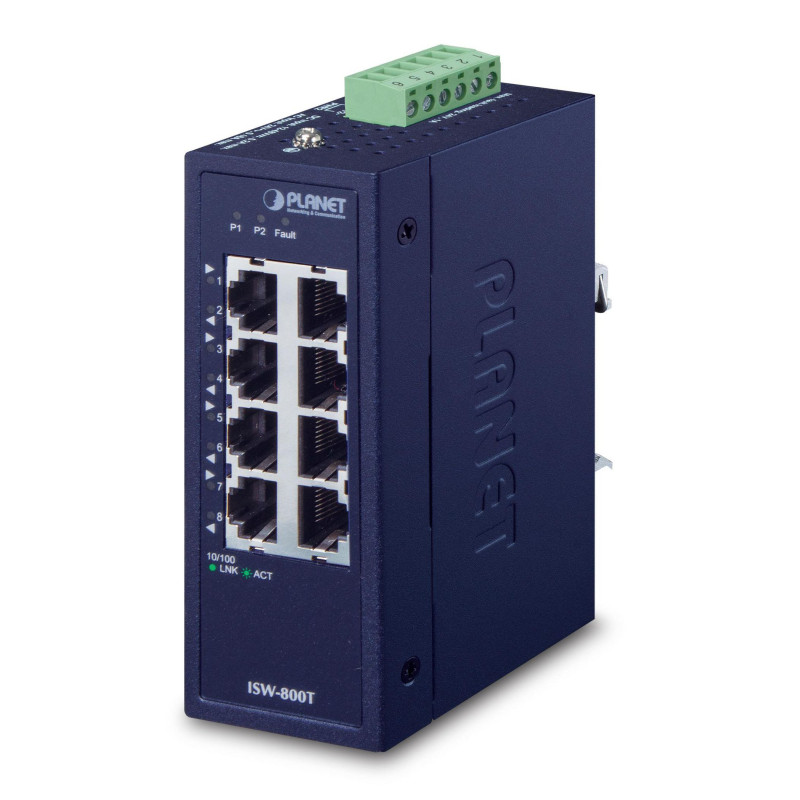

PLANET ISW-800T Industrial 8-Port 10/100TX Compact Ethernet Switch, suitable for industrial use, features 8 10/100Mbps auto-negotiation ports, IP30-rated rugged but compact case and a wide-ranging redundant power system (12~48V DC or 24V AC). The ISW-800T is able to operate in any harsh environment with operating temperature ranging from -40 to 75 degrees C.

As the trend for an IIoT (Industrial Internet of Things) infrastructure is gradually on demand, the ISW-800T is especially designed to make the deployment of an industrial network easy as it comes with a Plug and Play feature. Besides, it is stable and reliable when it comes to fast data and power transmission.


Low Power Consumption for Green Networking

The ISW-800T, adopting the advanced green networking technology, provides the link-on cable length power saving and link-down power saving methods. These features make the ISW-800T consume very low power in full load operation mode, which helps conserve energy effectively but maintains high performance efficiently.

With the Auto Power Saving and IEEE 802.3az Energy Efficient Ethernet (EEE) Protocol, the ISW-800T can automatically detect cable link status and network traffic, and thus is able to adjust power consumption accordingly. It enables the switch to consume less power when it is less active.


Dual Power Input for High Availability Network System

The ISW-800T features a strong dual power input system with wide-ranging voltages (12V~48V DC or 24V AC) incorporated into customer’s automation network to enhance system reliability and uptime. In the example below, when power supply 1 fails to work, the hardware failover function will be activated automatically to keep powering the ISW-800T via power supply 2 alternatively without any loss of operation.


Robust Protection

The ISW-800T provides contact discharge of ±6KV DC and air discharge of ±8KV DC for Ethernet ESD protection. It also supports ±4KV surge immunity to improve product stability and protects users’ networks from devastating ESD attacks, making sure the flow of operation does not fluctuate.


High Switch Performance

The ISW-800T offers high-performance switch architecture. With the 8 10/100Mbps Fast Ethernet ports providing non-blocking switch fabric and wire-speed throughput as high as 1.6Gbps and the 1K MAC address table, the ISW-800T can perform wire-speed packets transfer without risk of packet loss. The flow control function enables the ISW-800T to provide fast and reliable data transfer.


Plug and Play

All of the RJ45 copper interfaces in the ISW-800T support 10/100Mbps auto negotiation for optimal speed detection through RJ45 Category 6, 5 or 5e cables. The standard auto-MDI/MDI-X support can detect the type of connection to any Ethernet device without requiring special straight-through or crossover cables.

Almacenar y reenviar	Yes
Capacidad	1,19 Mpps
Capacidad de conmutación	1,6 Gbit/s
Tabla de direcciones MAC	1000 entradas
Certificación	FCC Part 15 Class A, CE
Código de protección (IP)	IP30
Color producto	Blue
Indicadores LED	Yes
Montaje a pared	Yes
Montaje en carril DIN	Yes
Capa switch	L2
Tipo de switch	Unmanaged
Auto MDI/MDI-X	Yes
Compatible con aprendizaje automático de dirección MAC	Yes
Compatible con envejecimiento automático de dirección MAC	Yes
Estándares de red	IEEE 802.1p/IEEE 802.1x/IEEE 802.3/IEEE 802.3az/IEEE 802.3u/IEEE 802.3x
Full duplex	Yes
Soporte 10G	No
Soporte de control de flujo	Yes
Tecnología de cableado Ethernet de cobre	100BASE-TX/10BASE-T
Disipación de calor	8,57 BTU/h
Humedad relativa de funcionamiento (H-H)	5 - 95 %
Temperatura de almacenamiento (T-T)	-40 - 85 °C
Temperatura de funcionamiento (T-T)	-40 - 75 °C
Puerto bloque terminal	Yes
Bloque de terminales incluido	Yes
Kit de montaje a pared	Yes
Tamaño del búfer	448 KB
Cantidad de módulos SFP instalados	0
Cantidad de módulos SFP+ instalados	0
Puertos Ethernet RJ-45 de conmutación básica	8
Tipo de puertos Ethernet RJ-45 de conmutación básica	Fast Ethernet (10/100)
Consumo de energía (típico)	2,5 W
Fuente de alimentación incluida	No
Alimentación PoE	No
Autenticación	Port-based authentication
Garantía	5 años
